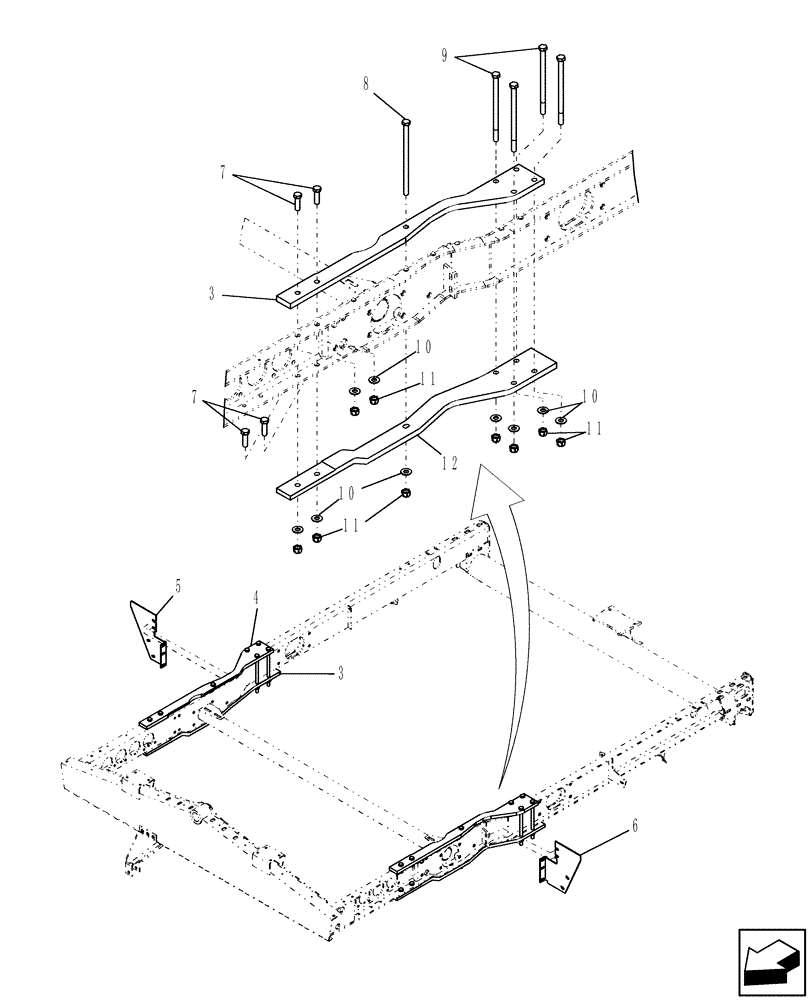

Запчасти Case IH AFX8010 (K.62.D[4]) - KIT, SELF-LEVELING FRAME REINFORCEMENT K - Crop Processing

1

87610707

DIA KIT, HARVESTER

Self-Leveling Frame Reinforcement; Includes: Ref.s 2 Thru 12

1шт.

2

87617153

SUPPORT

RH

1шт.

3

87610581

SUPPORT

RH

1шт.

4

87610764

SUPPORT

LH

1шт.

5

87370003

PLATE

1шт.

6

87370005

PLATE

1шт.

7

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

8

364053

BOLT,Hex, M12 x 1.75 x 220mm, Cl 8.8

2шт.

9

87560260

BOLT,Hex, M12 x 200mm, Cl 8.8

8шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

18шт.

11

100038

NUT,M12 x 1.75, Cl 8

18шт.

12

87617155

SUPPORT

LH

1шт.
