Запчасти Case IH AFX8010 (K.62.D[2]) - SELF LEVELING SHOE HYDRAULICS K - Crop Processing

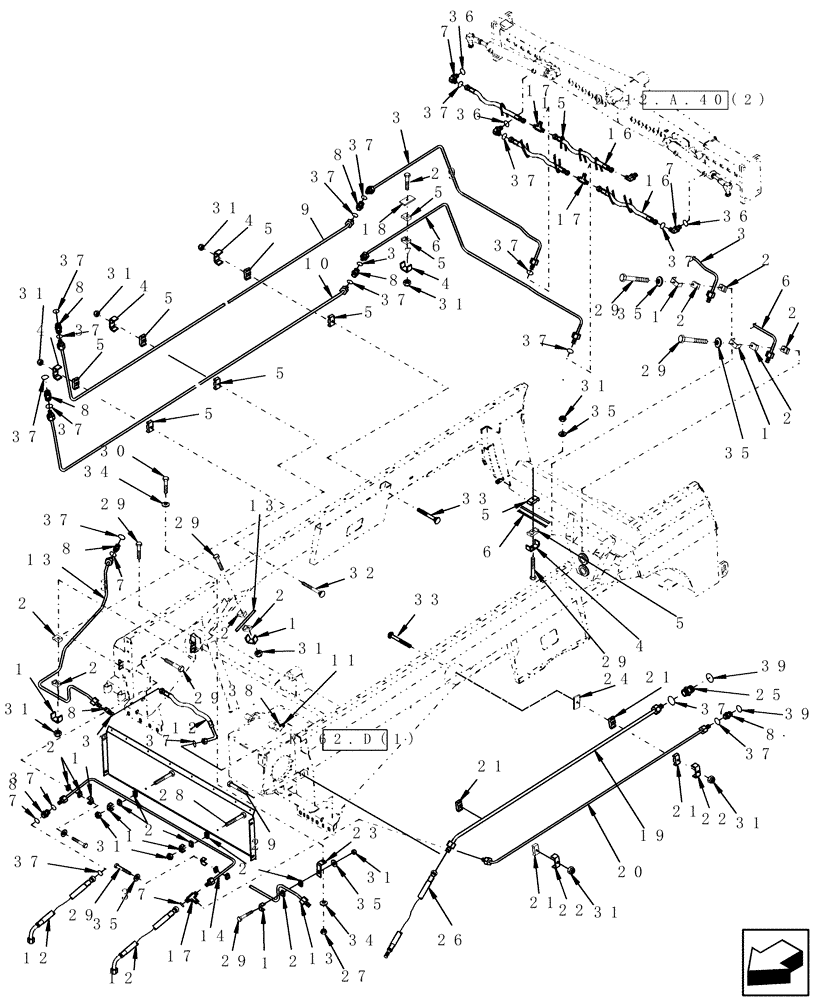

Схема запчастей Case IH AFX8010 - (K.62.D[2]) - SELF LEVELING SHOE HYDRAULICS K - Crop Processing
29
1
2
31
2
8
37
2
20
37
37
35
35
4
33
36
25
39
37
5
7
3
29
17
2
34
29
33
21
37
13
37
16
29
6
6
37
31
1
21
23
14
22
8
31
5
29
8
5
28
37
9
5
15
30
17
31
38
31
37
2
4
8
5
35
26
31
5
37
11
29
2
5
37
19
36
22
34
8
32
37
17
18
5
37
10
37
2
8
1
k.62.d(1)
d.12.a.40(2)
37
2
4
7
6
37
27
29
2
31
3
35
37
2
31
8
36
13
4
31
37
12
37
5
5
29
29
37
31
1
1
13
39
37
37
2
1
12
8
16
4
24
12
21
2
37
29
35
31
1
21

Артикул

Название

Примечание

Количество

1

442340

SUPPORT

9шт.

2

433008

CLAMP

18шт.

3

86598056

HYD TUBE,12.70 mm DIA

SL Hydraulics

1шт.

4

431941

SUPPORT

5шт.

5

430357

CLAMP

Tube

10шт.

6

87011295

HYD TUBE,12 mm OD

SL Hydraulics

1шт.

7

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

4шт.

8

84431547

UNION,13/16"-16 ORFS

8шт.

9

86574052

HYD TUBE,12.70 mm DIA x 2905, 495 mm L

SL Hydraulics

1шт.

10

86574061

HYD TUBE,12.70 mm DIA x 2860, 436 mm L

SL Hydraulics

1шт.

11

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

1шт.

12

84068062

HYDRAULIC HOSE,9.53mm ID x 800mm L, SAE 100R2

Self-Levelling Hydraulics: L = 800mm

3шт.

13

86638092

HYD TUBE,12.70 mm DIA

SL Hydraulics

1шт.

14

86575634

HYD TUBE,12.70 mm DIA

SL Hydraulics

1шт.

15

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP Hose

6шт.

16

84068103

HYDRAULIC HOSE,9.53mm ID x 1200mm L, SAE 100R16

Self-Levelling Hydraulics; L = 1200mm

4шт.

17

86533127

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Fitting

3шт.

18

434097

SUPPORT

1шт.

19

86584710

HYD TUBE,15.88 mm DIA x 1640, 80.3 mm L

SL Hydraulics

1шт.

20

86588844

HYD TUBE,12.70 mm DIA x 1698, 63.9 mm L

SL Hydraulics

1шт.

21

430356

CLAMP

4шт.

22

84814948

SUPPORT

2шт.

23

86586810

SUPPORT

1шт.

24

434103

PLATE

1шт.

25

84431473

HYD CONNECTOR,1"-14 ORFS

1шт.

26

86623270

HYDRAULIC HOSE

SL Hydraulics

1шт.

27

9706690

NUT,M8 x 1.25, Cl 8

1шт.

28

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

2шт.

29

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

11шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

31

353308

NUT,M6 x 1.0, Cl 8

12шт.

32

120034

CARRIAGE BOLT,Short Nk, M6 x 40mm, Cl 8.8

1шт.

33

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

2шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

36

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Выбрано товаров: 39
