Запчасти Case IH AFX8010 (K.62.D[1]) - FRAME, LOWER & PIVOT, CLEANING SHOE, SELF-LEVELING K - Crop Processing

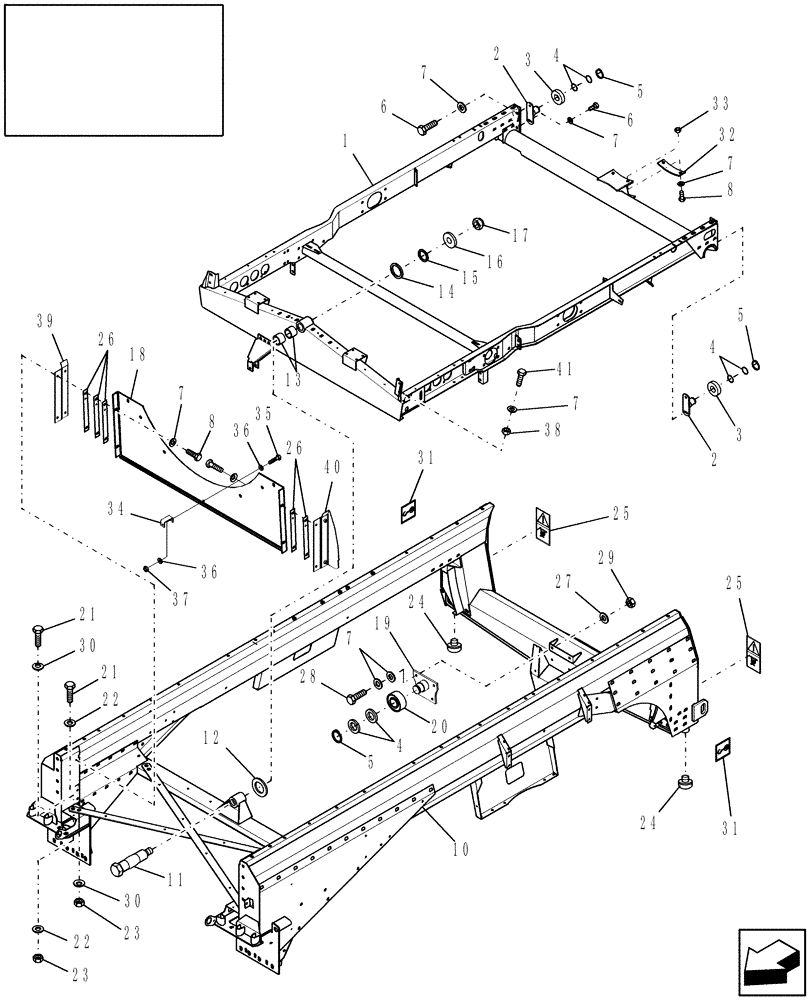

Схема запчастей Case IH AFX8010 - (K.62.D[1]) - FRAME, LOWER & PIVOT, CLEANING SHOE, SELF-LEVELING K - Crop Processing
6
28
32
11
33
24
20
40
7
1
7
31
41
23
24
38
36
14
2
22
23
39
25
30
7
26
30
35
21
19
10
4
16
36
2
5
8
3
31
5
29
21
18
26
7
15
34
6
8
37
12
4
3
7
4
5
22
25
17
13
7
27

Артикул

Название

Примечание

Количество

1

84071480

FRAME

Pivot

1шт.

1

84453821

FRAME ASSY

, Start Year: 01-APR-05, Serial Range: -HAJ106076

1шт.

1

87392884

FRAME

, Start Serial: HAJ106077

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

2

89504221

HINGE

2шт.

2

84818451

HINGE

, Start Year: 01-FEB-03

2шт.

3

80434817

ROLLER

2шт.

4

80442203

WASHER

6шт.

5

440442

SNAP RING,M40 x 2.5mm Thk, External

3шт.

5

370006

SNAP RING,M40, Ext

3шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

9

825-1410

NUT,M10, Cl 8

4шт.

10

87011343

FRAME

Lower, Main

1шт.

10

87280671

FRAME

Lower, Main

1шт.

10

87283693

FRAME

, Start Year: 01-APR-05

1шт.

Enhanced Cleaning

1шт.

11

89831928

SHAFT

1шт.

12

80140061

WASHER

1шт.

13

80429232

BUSHING

2шт.

14

89508900

WASHER

1шт.

15

89513615

WASHER

1/ARшт.

16

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

1шт.

17

86000441

NUT,M16 x 2.0, Cl 8

1шт.

18

87109536

PLATE

1шт.

18

87318367

PLATE

, Start Year: 01-APR-05

1шт.

18

87332485

PLATE

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

19

87280355

SUPPORT

Hinge

1шт.

20

210049

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

21

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

22

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

1шт.

23

825-1416

NUT,M16, Cl 8

4шт.

24

80190029

RUBBER BUMPER

2шт.

25

84100296

DECAL

Tie-down Point

2шт.

26

84071503

SHIM

1шт.

27

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

6шт.

28

87032337

BOLT,Hex, M10 x 40mm, Cl 10.9

4шт.

29

86981462

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

30

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

4шт.

31

449973

DECAL

, Start Year: 01-APR-05

2шт.

32

84457842

WEAR PLATE

, Start Year: 01-APR-05

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

33

100037

LOCK NUT,M10 x 1.5, Cl 8

, Start Year: 01-APR-05

2шт.

34

87318696

SUPPORT

Bracket

1шт.

35

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

36

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

37

9706755

NUT,M6, Cl 8

1шт.

38

100016

NUT,M10 x 1.5, Cl 8

2шт.

38

137938

SPACER

2шт.

39

87317610

PLATE

1шт.

39

87332489

BRACKET

RH

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

40

87317607

PLATE

1шт.

40

87332486

BRACKET

LH

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

41

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

Выбрано товаров: 59
