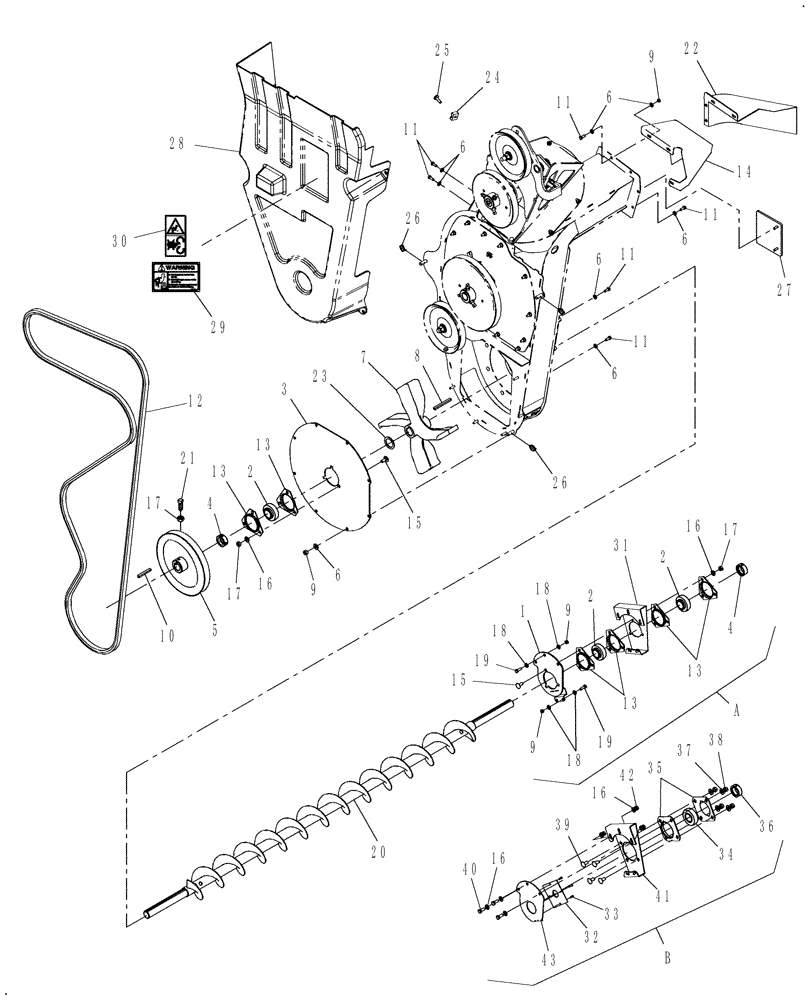

Запчасти Case IH AFX8010 (K.62.C.41) - TAILINGS DRIVE AND AUGER K - Crop Processing

1

86975808

PLATE

Bracket, LH, Tailings Bearing Mount

1шт.

2

84814912

BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm

2шт.

3

87107707

PLATE

Bearing Cover, Tailings Processor

1шт.

4

86997053

COLLAR

2шт.

5

87107333

PULLEY

Tailings - Includes (1) Ref.17 & (1) Ref.21

1шт.

Prior to PIN HAJ103201EU & HAJ105207NA

1шт.

5

87282789

PULLEY,299.9mm OD

Driven, Tailings - Includes (3) Ref. 17 & (3) Ref. 21

1шт.

PIN HAJ103201EU & HAJ105207NA and after

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

27шт.

7

87335466

IMPELLER

Machined, was 87108642

1шт.

7

87341817

IMPELLER

Coated, Replaces 87324966

1шт.

High Wear

1шт.

8

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

Retaining

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

17шт.

10

86996914

KEY

Retaining, M10 x 8 x 75

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

15шт.

12

87109130

V-BELT,0.88" W x 88.50" L

Tailings Processor, HCC

1шт.

Prior to PIN HAJ103201EU & HAJ105207NA

1шт.

12

87283139

V-BELT,4622.8mm Nominal Length

Tailings Processor, HCC

1шт.

PIN HAJ103201EU & HAJ105207NA and after

1шт.

13

86620026

FLANGED BEARING

4шт.

14

87108689

DEFLECTOR

Tailings Processor Chute

1шт.

Prior to PIN HAJ103201EU & HAJ105207NA

1шт.

15

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

17

100016

NUT,M10 x 1.5, Cl 8

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

20

87573645

AUGER

Std Wear

1шт.

Service Only. If replacing factory auger, must also order mounting parts shown over ref. "B"

1шт.

20

87730185

AUGER

Extended Wear

1шт.

Service Only. If replacing factory auger, must also order mounting parts shown over ref. "B"

1шт.

21

393599

SET SCREW,M10 x 25mm, Cl 12.9

1шт.

22

87339975

DEFLECTOR

1шт.

PIN HAJ103201EU & HAJ105207NA and after

1шт.

23

87109160

SHIM,35.5mm ID x 58mm OD x 2.18mm Thk

1шт.

PIN HAJ103201EU & HAJ105207NA and after

1шт.

25

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

PIN HAJ103201EU & HAJ105207NA and after

1шт.

26

87109290

LOCK PIN,25.4mm OD x 30mm L

3шт.

PIN HAJ103201EU & HAJ105207NA and after

1шт.

27

87328376

PLATE

1шт.

28

87109865

SHIELD

Includes Ref. 29 & 30

1шт.

29

86626958

WARNING DECAL

English

1шт.

30

84004734

WARNING DECAL

Safety

1шт.

31

87382515

SUPPORT

1шт.

32

87528798

SEAL

1шт.

33

9512968

RIVET,Pop, 4.8mm OD x 11.2mm L

4шт.

34

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

1шт.

35

86974037

FLANGE

2шт.

36

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

1шт.

37

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

38

337475

NUT,M12, Cl 10

4шт.

39

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

40

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

41

87542571

SUPPORT

1шт.

42

86500689

NUT,M10 x 1.5, Cl 10

3шт.

43

87574415

COVER

1шт.
