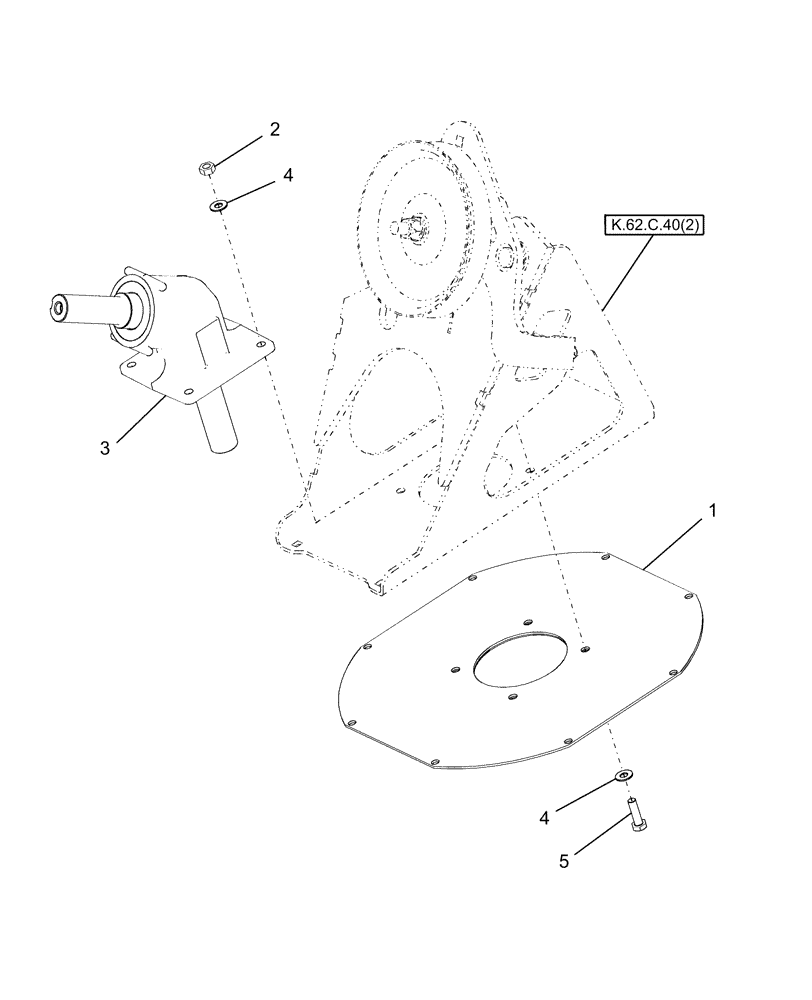

Запчасти Case IH AFX8010 (K.62.C.40[4]) - ANGLE DRIVE K - Crop Processing

1

87342462

PLATE

Replaces 87107701

1шт.

2

100016

NUT,M10 x 1.5, Cl 8

4шт.

3

87107888

GEARBOX

1шт.

3

87107888R

REMAN-GEARBOX

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999 (3/03-9/06)

1шт.

3

87107888C

CORE-GEARBOX

Return Number

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.
