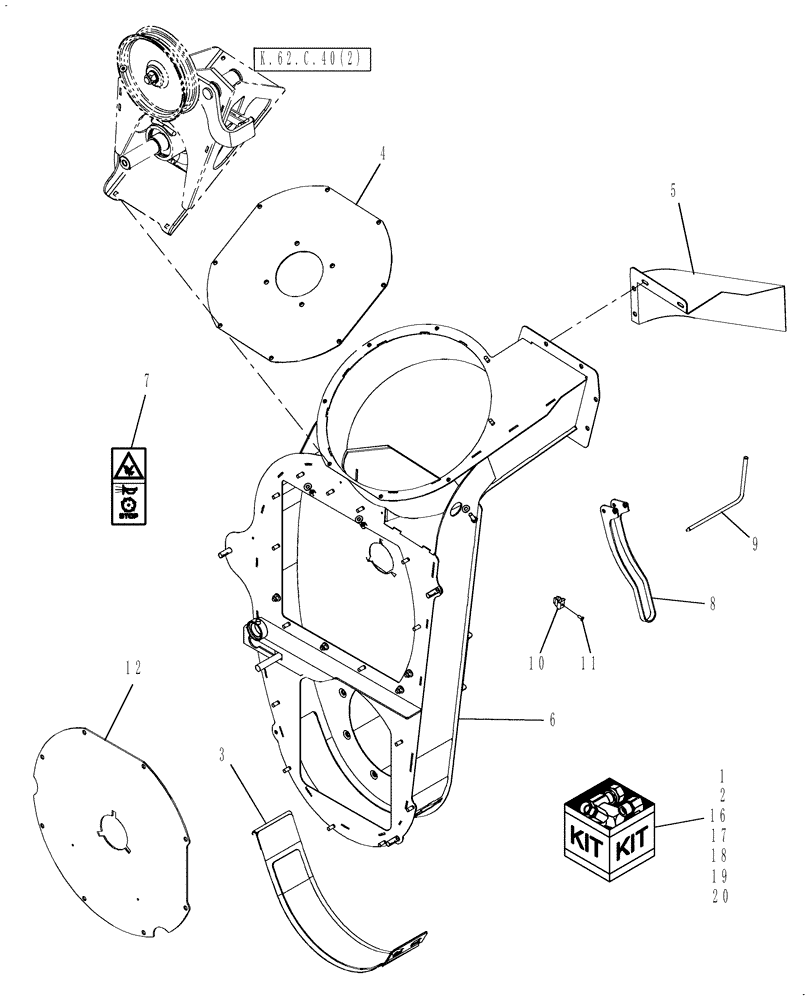

Запчасти Case IH AFX8010 (K.62.C) - KIT, HIGH WEAR CAMPAIGN K - Crop Processing

1

87471397

DIA KIT, HARVESTER

Kit, High Wear Campaign; Includes: Ref.s 2 & 13 Thru 20

1шт.

2

87753013

DIA KIT, HARVESTER

Kit, High Wear Tailings Processor Upgrade; Includes: Ref.s 2 Thru 12

1шт.

3

87736624

DOOR ASSY.

1шт.

4

87737490

TOP COVER

1шт.

5

87735231

DEFLECTOR

1шт.

6

87737487

HOUSING

New Housing Uses 87556072 Rivnuts Instead of Welded Nuts

1шт.

7

84014117

DECAL

Stop

1шт.

8

87757469

HANDLE

Handle

1шт.

9

9819720

PIN,7.94mm OD

1шт.

10

323307

CLAMP

1шт.

11

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

12

87736618

DOOR ASSY.

1шт.

13

87568249

PLATE ASSY.

Feed; See Fig. K.40.C.52.74

1шт.

Not Shown

1шт.

14

87470921

PLATE ASSY.

Plate, Feed, Extended Wear; See Fig. K.40.C.52.74

1шт.

Not Shown

1шт.

15

87758303

CHANNEL

Channel; See Fig. K.40.C.52.52[3]

1шт.

Not Shown

1шт.

16

87753014

DIA KIT, HARVESTER

Kit, Grain Tank Unload Sump Wear Reinforcement; See Fig. K.60.B.51[1]

1шт.

Not Shown

1шт.

17

87753011

DIA KIT, HARVESTER

Kit, Bubbler Sump; See Fig. K.60.B.72[4]

1шт.

Not Shown

1шт.

18

87753010

DIA KIT, HARVESTER

Kit, Grain Tank Auger Slow Down; See Fig. K.72.B.40[2] (Unload Rate is 2.7 bu/sec After Installation)

1шт.

Not Shown

1шт.

19

87753906

DIA KIT, HARVESTER

Kit Elevator Speed Reduction; See Fig. K.60.B.42[3]

1шт.

Not Shown

1шт.

20

87758649

DIA KIT, HARVESTER

Kit, Elevator Head, Extended Wear; See Fig. K.60.B.74[2]

1шт.

Not Shown

1шт.
