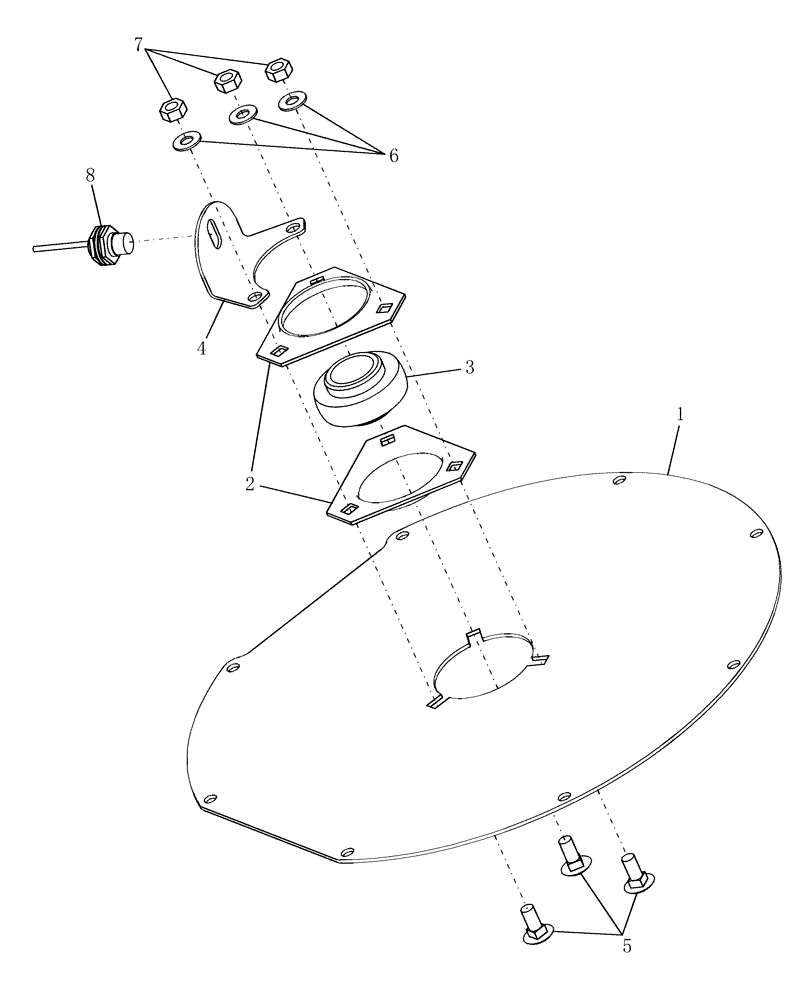

Запчасти Case IH AFX8010 (K.62.C[3]) - BEARING PLATE K - Crop Processing

1

87107707

PLATE

1шт.

2

86620026

FLANGED BEARING

2шт.

3

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

4

86976452

BRACKET

Speed Sensor

1шт.

5

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

7

100016

NUT,M10 x 1.5, Cl 8

3шт.

8

84058861

SENSOR

Tailing Speed

1шт.
