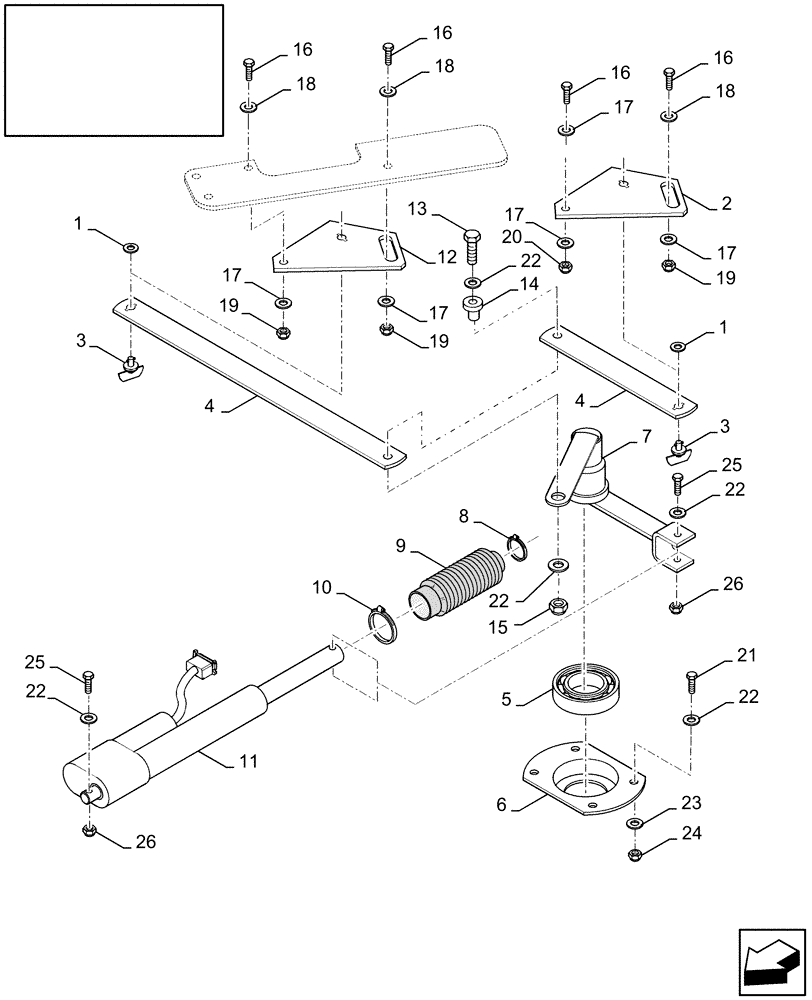

Запчасти Case IH AFX8010 (K.62.B.92[1]) - ADJ. SIEVE CL 1 1/8" ELECTRIC K - Crop Processing

1

9514605

LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk

2шт.

2

84062611

PLATE

Coupling

1шт.

3

9831581

LOCK

2шт.

4

87011102

LEVER

Plate

2шт.

5

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

6

310045

BEARING HOUSING

Bearing

1шт.

7

87011804

LEVER

Arm

1шт.

8

326082

CLAMP,18mm - 25mm

1шт.

9

84053431

BELLOWS

Rubber

1шт.

10

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

1шт.

11

84053684

ACTUATOR

1шт.

11

84335407R

REMAN-ELECTRIC MOTOR

1шт.

11

84335407C

CORE-ELECTRIC MOTOR

Return Number

1шт.

11

87347281

ACTUATOR

Replaces 84053684, Start Serial: HAJ106101

1шт.

11

84335407R

REMAN-ELECTRIC MOTOR

1шт.

11

84335407C

CORE-ELECTRIC MOTOR

Return Number

1шт.

12

84053677

PLATE

Coupling

1шт.

13

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

14

87013640

BUSHING,8mm ID x 12.75mm OD x 12.26mm L

1шт.

15

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

16

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

17

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

19

9706755

NUT,M6, Cl 8

2шт.

20

353308

NUT,M6 x 1.0, Cl 8

2шт.

21

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

22

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

8шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

9706690

NUT,M8 x 1.25, Cl 8

4шт.

25

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

26

280129

NUT,1/4"-20

2шт.
