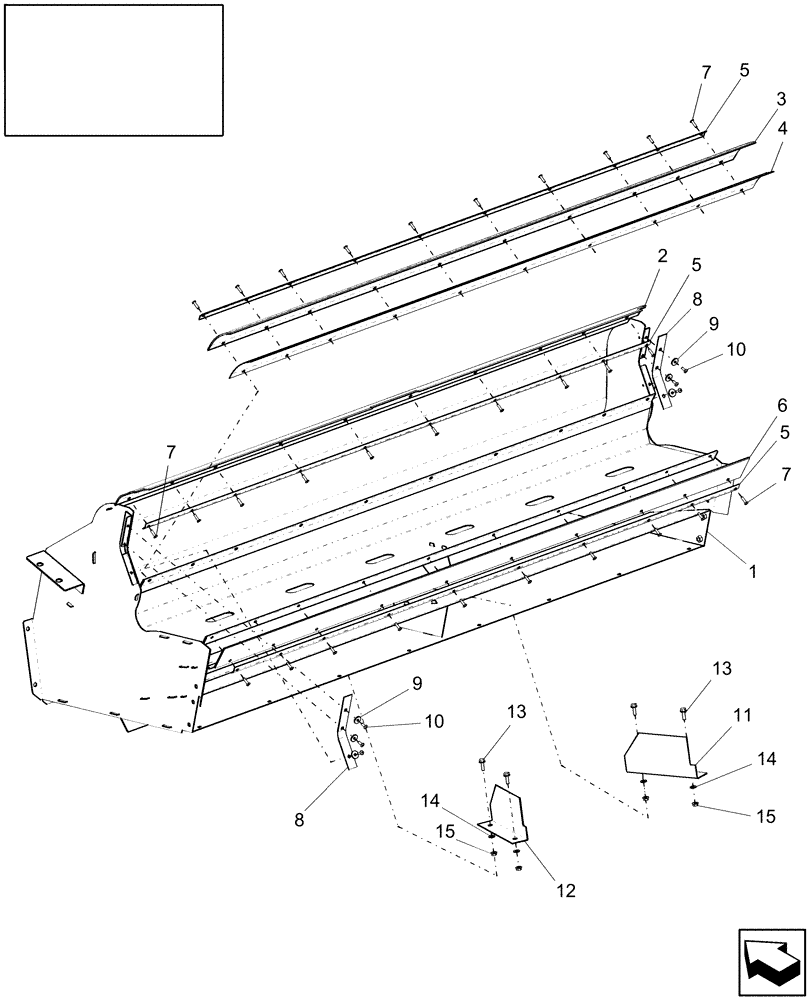

Запчасти Case IH AFX8010 (K.62.B.74[4]) - HOUSING, FAN - ENHANCED CLEANING K - Crop Processing

1

87109377

HOUSING

1шт.

2

84462410

SEAL PROTECTION

1шт.

2

87331177

SEAL

1шт.

2

87361668

SEAL

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

3

84462407

SEAL PROTECTION

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

4

84462409

SEAL PROTECTION

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

5

747558

STRIP

3шт.

6

84818312

SEAL

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

30шт.

8

84071827

CANVAS

2шт.

9

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

6шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

11

87109364

DEFLECTOR

RH

1шт.

12

87109363

DEFLECTOR

LH

1шт.

13

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.
