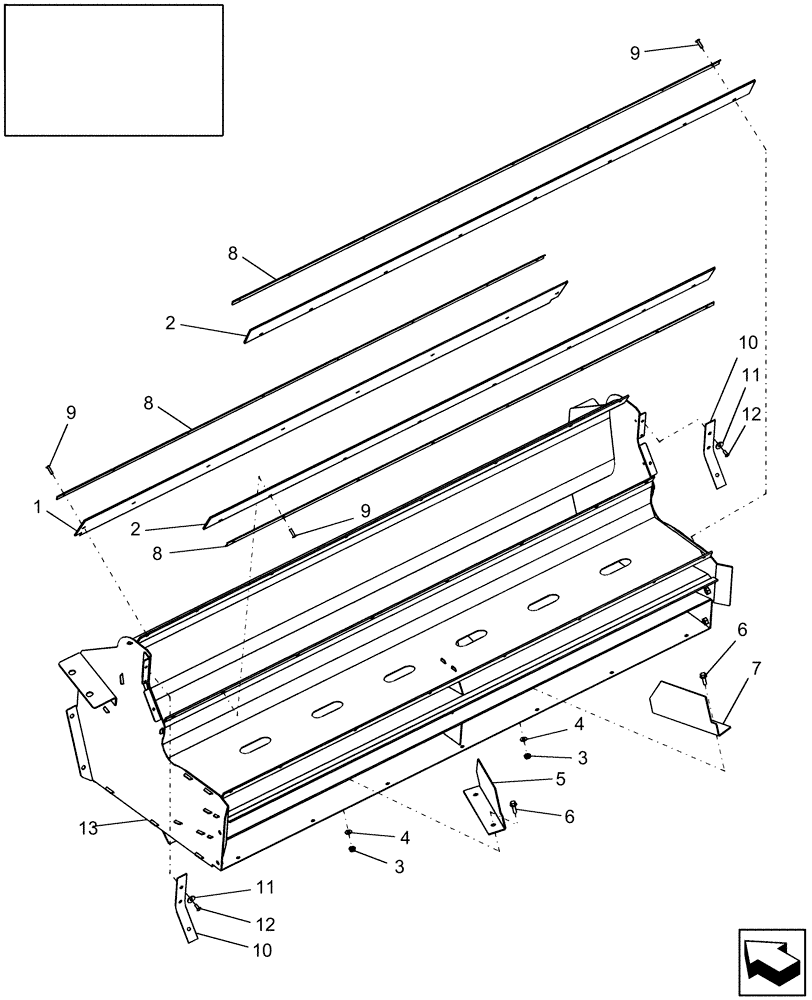

Запчасти Case IH AFX8010 (K.62.B.74[3]) - HOUSING, FAN K - Crop Processing

86981066

HOUSING

Complete Assembly

1шт.

1

84062522

RUBBER STRIP

1шт.

1

87282879

SEAL

Same as 84062522, 1520 mm length, Start Year: 19-JUL-04

1шт.

2

84818312

SEAL

1577 mm length

2шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

5

87109363

DEFLECTOR

LH Vertical

1шт.

6

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

7

87109364

DEFLECTOR

RH Vertical

1шт.

8

747558

STRIP

3шт.

9

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

30шт.

10

84071827

CANVAS

2шт.

11

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

6шт.

12

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

13

87109377

HOUSING

Fan, Cleaning

1шт.
