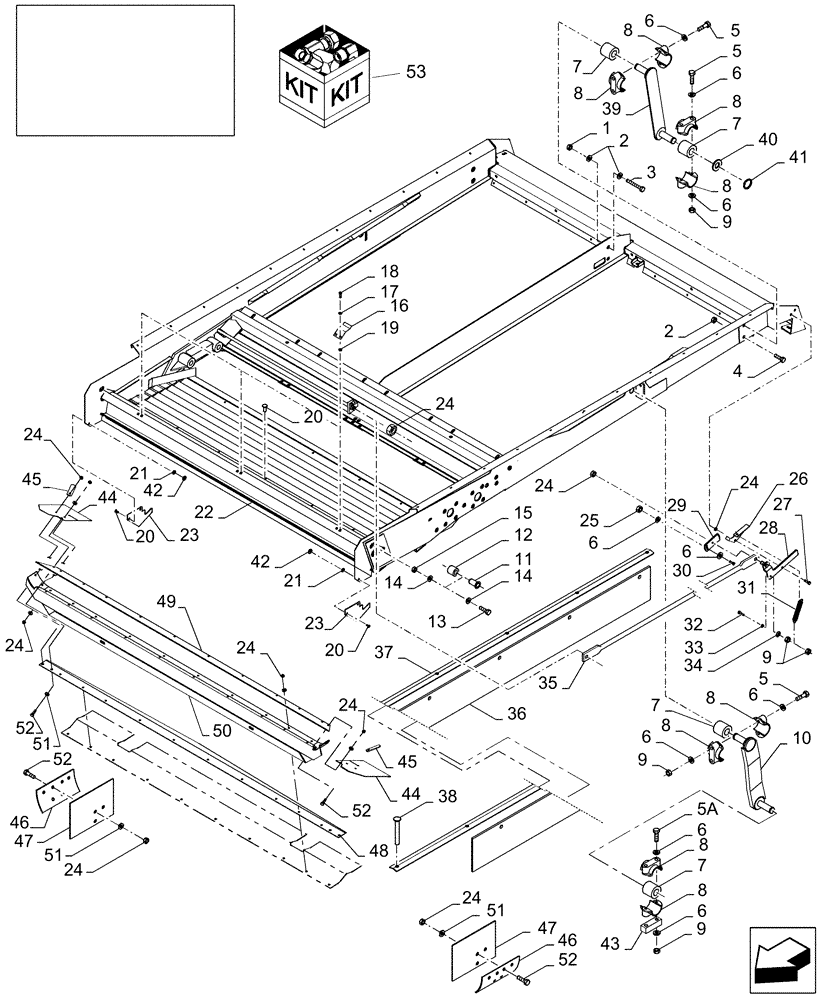

Запчасти Case IH AFX8010 (K.62.B.63) - UPPER SHAKER SHOE K - Crop Processing

1

9706685

NUT,M12 x 1.75, Cl 8

1шт.

2

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

3

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

10шт.

4

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

5

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

4шт.

5a

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

4шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

17шт.

7

84000052

RUBBER BUSHING,14mm ID x 40mm OD x 38mm L

4шт.

8

320033

BEARING HALF

8шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

10

84075741

ARM

253 mm long Enhanced Cleaning System

2шт.

10

87318338

ARM

Arm, 257 mm long, Start Year: 01-APR-05

2шт.

10

87314041

ARM

282 mm long

2шт.

Enhanced Cleaning

1шт.

11

84052651

BUSHING,16.2mm ID x 35mm OD x 52mm L

2шт.

12

338222

RUBBER BUSHING,21mm ID x 40mm OD x 38mm L

2шт.

13

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

2шт.

14

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

2шт.

15

86000441

NUT,M16 x 2.0, Cl 8

2шт.

16

84462716

TAB SPRING

was 84989607

3шт.

17

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

18

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

6шт.

19

9706755

NUT,M6, Cl 8

6шт.

20

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

21

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

4шт.

22

84071133

SHAKER SHOE

Wide

1шт.

22

84462369

SHAKER SHOE

Wide

1шт.

Enhanced Cleaning

1шт.

23

84989167

SEAL PROTECTION

2шт.

23

87333110

SEAL PROTECTION

2шт.

Enhanced Cleaning

1шт.

23

84989409

PLATE

2шт.

24

353308

NUT,M6 x 1.0, Cl 8

3шт.

25

9706690

NUT,M8 x 1.25, Cl 8

1шт.

26

84434086

HANDLE

1шт.

27

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

28

84433811

HANDLE

1шт.

Prior To PIN HAJ106608

1шт.

28

84457706

HANDLE

1шт.

From PIN HAJ106608

1шт.

29

84433795

PLATE

Tappet

1шт.

29

84457729

PLATE

Tappet

1шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

31

9832711

SPRING

1шт.

32

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

33

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

34

397881

SPRING,8.199mm ID x 16mm OD x 0.9mm Thk

1шт.

35

84021043

BALL JOINT

M6, Used With 84457696

1шт.

35

84457696

ROD

1722mm OAL, M6

1шт.

36

84071063

SEAL,80mm W x 2010mm OAL

2шт.

37

84076111

STRIP

2шт.

38

80445395

RIVET,Pop, M4.8 x 18.1

22шт.

39

87314041

ARM

2шт.

40

84032520

WASHER,19.5mm ID x 29mm OD x 1mm Thk

4шт.

41

300627

SNAP RING,M19, External

4шт.

42

86508813

NUT,M5, Cl 8

4шт.

43

87314695

SPACER

2шт.

Enhanced Cleaning

1шт.

44

84334904

CANVAS

2шт.

44

87323001

CANVAS

2шт.

Enhanced Cleaning

1шт.

45

84007182

BRACKET

2шт.

46

84005240

PLATE

2шт.

46

84462477

PLATE

2шт.

Enhanced Cleaning

1шт.

47

84005164

SEAL

2шт.

47

84462428

PLATE

2шт.

Enhanced Cleaning

1шт.

48

84447129

SEAL

1шт.

48

84462460

SEALING STRIP

1шт.

Enhanced Cleaning

1шт.

49

84440822

SEAL PROTECTION

1шт.

49

87333212

RUBBER SEAL,70mm W x 1816mm OAL

1шт.

Enhanced Cleaning

1шт.

50

84320463

SUPPORT

1шт.

50

84462472

SUPPORT

1шт.

Enhanced Cleaning

1шт.

51

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

1шт.

52

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

53

87525427

DIA KIT, HARVESTER

Enhanced Cleaning; Includes: Items As Indicated, Plus Others As Indicated On Fig.s K62.D[1], K.62.B.58[1], K.62.B.42, K.62.B.40[2], K.62.B.41[1], K.62.B.41[3], K.62.B.58[2], K.62.B.74[4], E.10.B[1]

1шт.
