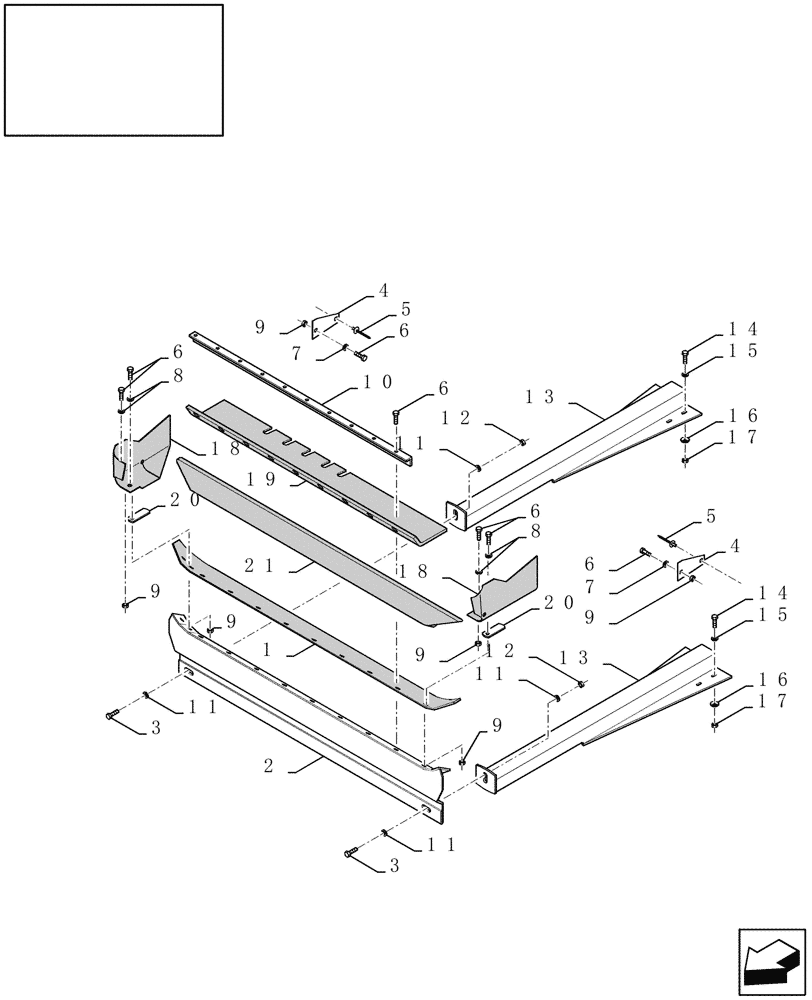

Запчасти Case IH AFX8010 (K.62.B.58[2]) - GRAIN PAN, SUPPORTS & SEALS K - Crop Processing

1

84440822

SEAL PROTECTION

1шт.

1

84462460

SEALING STRIP

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

2

84320463

SUPPORT

1шт.

2

84462472

SUPPORT

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

4

84989409

PLATE

2шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

6

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

8

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

84000704

STRIP

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

100016

NUT,M10 x 1.5, Cl 8

2шт.

13

84433388

SUPPORT

2шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

15

140041

WASHER,M8 x 28mm OD x 3mm Thk

8шт.

16

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

16шт.

17

89706690

NUT,M8, Cl 8

8шт.

18

84334904

CANVAS

2шт.

18

87323001

CANVAS

2шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

19

84005167

RUBBER SEAL,70mm W x 1677mm OAL

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

20

84007182

BRACKET

2шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

21

84447129

SEAL

1шт.

21

87333212

RUBBER SEAL,70mm W x 1816mm OAL

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.
