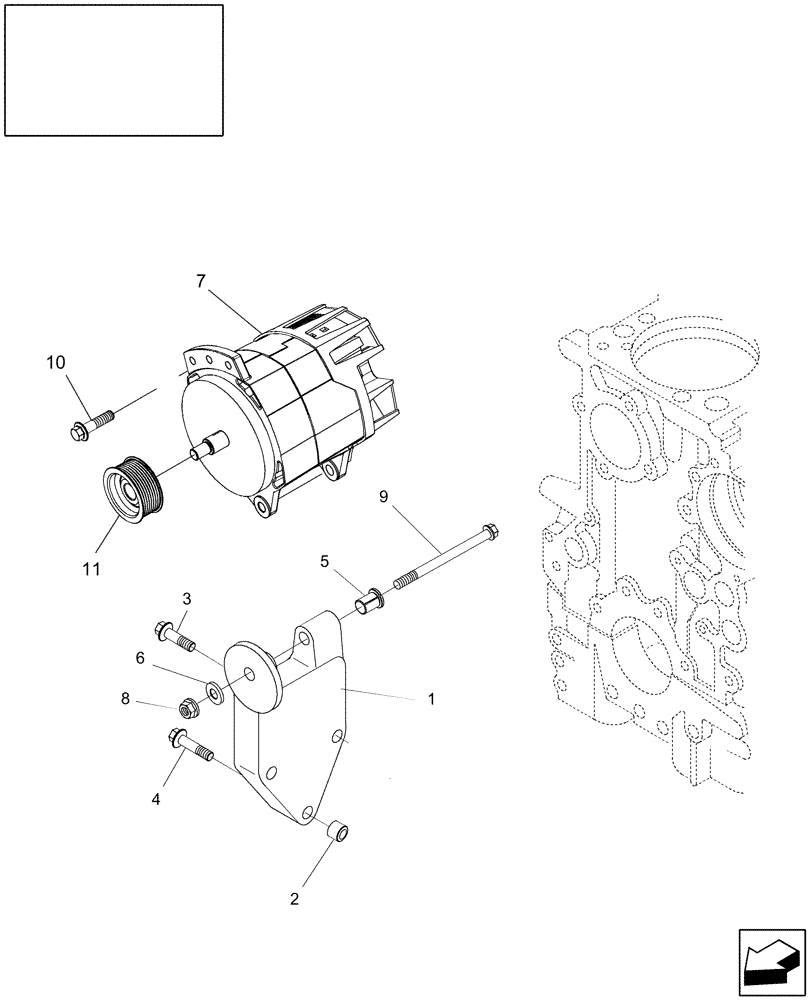

Запчасти Case IH AFX8010 (A.30.A.82[2]) - ALTERNATOR MOUNTING - PIN HAJ106401 AND AFTER A - Distribution Systems

1

500346543

SUPPORT

1шт.

2

98405462

DOWEL

2шт.

3

16593125

BOLT,M10 x 100mm

2шт.

4

2852286

BOLT,Flng, M10 x 1.5 x 130mm

1шт.

5

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

1шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

7

87592254

ALTERNATOR,12V, 185A

1шт.

7

87601413

REMAN-ALTERNATOR

Reman For New P/N 87592254

1шт.

7

87601410

CORE-ALTERNATOR

Return Part Number

1шт.

8

17038421

NUT

1шт.

9

16600024

BOLT,M12 x 160mm

1шт.

10

2855573

BOLT

1шт.

11

504078554

PULLEY

1шт.
