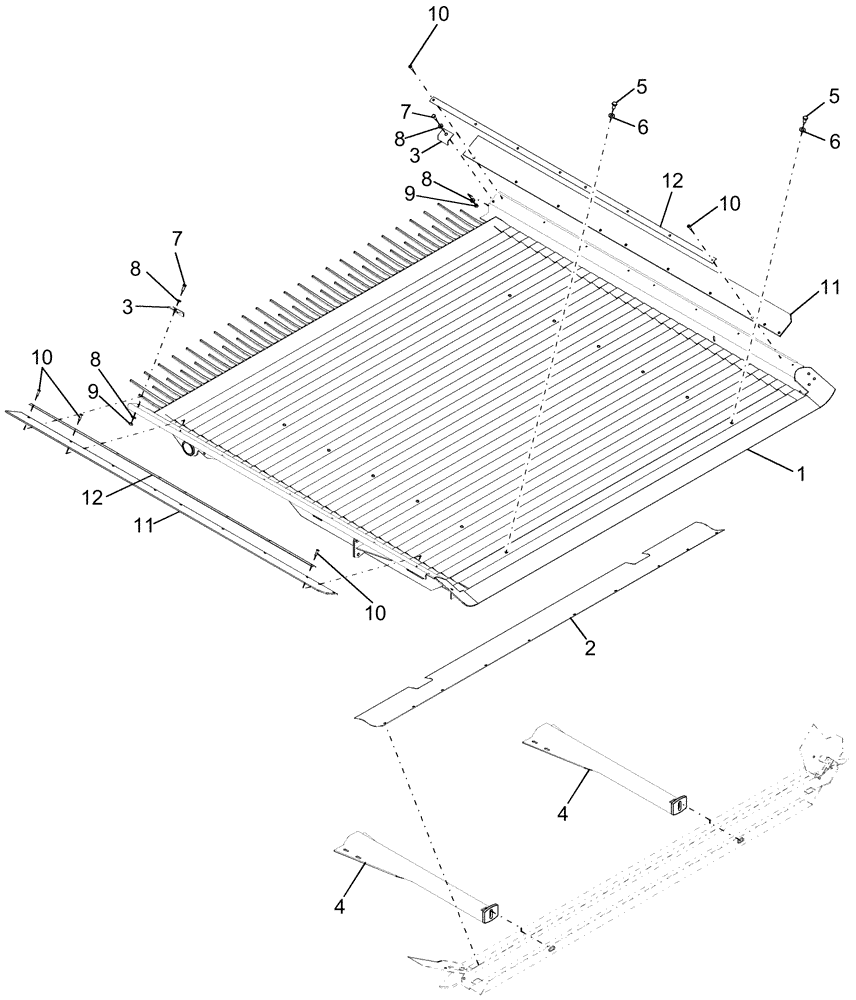

Запчасти Case IH AFX8010 (K.62.B.58[1]) - GRAIN PAN K - Crop Processing

1

86974863

GRAIN PAN

1шт.

1

84462405

GRAIN PAN

, Start Serial: HAJ106017

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

2

84433339

CANVAS

1шт.

2

87318667

SEAL

, Start Serial: HAJ106017

1шт.

Enhanced Cleaning

1шт.

3

429635

MOUNTING PLATE

2шт.

4

84433388

SUPPORT

2шт.

4

87318664

SUPPORT

, Start Serial: HAJ106017

2шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

12шт.

6

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

Replaced 322358

20шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

9

9706755

NUT,M6, Cl 8

2шт.

10

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

16шт.

11

84433338

SEAL PROTECTION

2шт.

11

87318666

SEAL PROTECTION

, Start Serial: HAJ106017

2шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

12

84075413

STRIP

2шт.

12

87318665

STRIP

, Start Serial: HAJ106017

2шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

87323178

DIA KIT, HARVESTER

Aggressive Shake Field Campaign Kit - Includes: Ref. 1-12 (Enhanced Cleaning)

1шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

14

84443725

ARM

162.5 mm long

2шт.

14

87314038

ARM

234 mm long

2шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

15

320033

BEARING HALF

4шт.

16

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

4шт.

17

84000052

RUBBER BUSHING,14mm ID x 40mm OD x 38mm L

2шт.

18

84032520

WASHER,19.5mm ID x 29mm OD x 1mm Thk

2шт.

19

300627

SNAP RING,M19, External

2шт.
