Запчасти Case IH AFX8010 (K.62.B.57[2]) - UPPER SIEVES K - Crop Processing

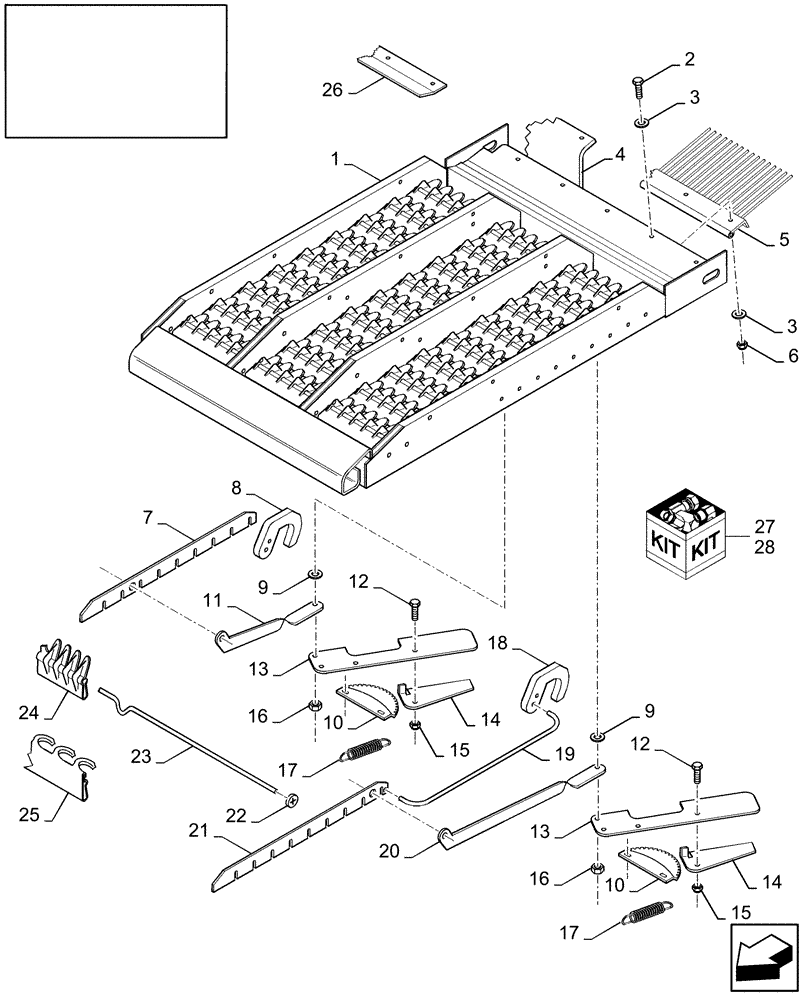

Схема запчастей Case IH AFX8010 - (K.62.B.57[2]) - UPPER SIEVES K - Crop Processing
6
9
26
4
28
24
12
25
3
21
17
13
18
3
14
2
11
9
22
15
10
5
23
8
19
27
13
7
16
1
16
10
12
20
17
14
15

Артикул

Название

Примечание

Количество

1

87284846

Assembly Presieve, 1-5/8" PET

1шт.

Part Is Not Remote Ready; See Ref. 28

1шт.

1

84100965

SIEVE

Closz Slat, 1 1/8" (7 to 24) - Painted

2шт.

Part Is Not Remote Ready; See Ref. 28

1шт.

1

87109830

SIEVE

Closz Slat, 1 1/8" (7 to 24) - Galvanized

2шт.

Part Is Not Remote Ready; See Ref. 28

1шт.

1

84320037

SIEVE

Closz Slat, 1 5/8" (7 to 17, 22 to 24) - Painted

2шт.

Part Is Not Remote Ready; See Ref. 28

1шт.

1

87109834

SIEVE

Corn, 1 5/8" (7 to 24) - Galvanized

2шт.

Part Is Not Remote Ready; See Ref. 28

1шт.

1

87109838

SIEVE

Closz Slat, 1 5/8" (7 to 24) - Galvanized - Was 84437315 - Painted

2шт.

Part Is Not Remote Ready; See Ref. 28

1шт.

1

84100990

SIEVE

P 1 1/8" (7 to 24) - Painted

2шт.

Part Is Not Remote Ready; See Ref. 28

1шт.

1

87109842

SIEVE

Peterson, 1 1/8" (7 to 24) - Galvanized

2шт.

Part Is Not Remote Ready; See Ref. 28

1шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

3

412653

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

4

84320875

SEAL,300mm W x 764mm OAL

1шт.

5

84100961

RAKE,151mm L

Shown

2шт.

5

453266

SIEVE EXTENSION

Optional Graepel - 784 mm long

2шт.

5

430384

PLATE

Optional Graepel - 1316 mm long

1шт.

6

9706755

NUT,M6, Cl 8

1шт.

7

84056237

ADJUSTING PLATE

1шт.

For 1 1/8" Sieve Only

1шт.

7

84056235

ADJUSTING PLATE

1шт.

For 1 5/8" Sieve Only

1шт.

8

84056254

INDICATOR

1шт.

For 1 1/8" Sieve Only

1шт.

8

84056253

INDICATOR

1шт.

For 1 5/8" Sieve Only

1шт.

9

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

10

426565

QUADRANT

2шт.

11

84053320

LEVER

1шт.

For 1 1/8" Sieve Only

1шт.

11

84056678

PLATE

1шт.

For 1 5/8" Sieve Only

1шт.

12

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

13

9817781

HANDLE

2шт.

14

432187

HANDLE

2шт.

15

353308

NUT,M6 x 1.0, Cl 8

2шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

17

449942

SPRING

2шт.

18

84056802

INDICATOR

1шт.

For 1 1/8" Sieve Only

1шт.

19

84056247

ROD

1шт.

For 1 1/8" Sieve Only

1шт.

20

84053321

LEVER

1шт.

For 1 1/8" Sieve Only

1шт.

21

84056236

ADJUSTING PLATE

1шт.

For 1 1/8" Sieve Only

1шт.

22

398561

CLIP

6шт.

23

453189

WIRE

1шт.

24

445569

BAR,HC 1-1/8" X 240mm overall length

HC 1 1/8"-240

47шт.

For 1 1/8" Sieve Only

1шт.

24

324715

BAR,HC 1-1/8" x 230mm overall length

HC 1 1/8"-230

94шт.

24

445569

BAR,HC 1-1/8" X 240mm overall length

HC 1 1/8"-240

235шт.

24

80445568

BAR,HC 1-5/8" X 240mm overall length

HC 1 5/8"-240

33шт.

24

80396505

BAR,HC 1-5/8" X 230mm overall length

HC 1 5/8"-230

66шт.

24

80445568

BAR,HC 1-5/8" X 240mm overall length

HC 1 5/8"-240

165шт.

25

89832566

BAR,Peterson 240mm overall length

HC 1 1/8"-240

47шт.

25

89832565

BAR,Peterson 230mm overall length

HC 1 1/8"-230

94шт.

25

89832566

BAR,Peterson 240mm overall length

HC 1 1/8"-240

235шт.

26

84100993

PLATE

2шт.

27

84084984

SIEVE,Kit, UPPER HC 1-1/8"

Kit; Includes: Ref. 1, 87109830 (2), Ref. 2, 86508568 (8), Ref. 3, 412653 (16), Ref. 5, 84100961 (2), Ref. 6, 9706755 (8), Plus Necessary Adjustment Parts Found On Fig. K.62.B.57[3]

1шт.

28

84084664

DIA KIT, HARVESTER

Chaffer, Adj, 1-5/8"; Includes: Ref.1, 87109834 (2), Ref.2, 120100 (8), Ref.3 (16), Ref.4 (2), Ref.5, 84100961 (2), Ref.6 (8), Plus Remote Plates & Hdw. - See Fig. K.62.B.57[03], Ref.s 6 & 15

1шт.
