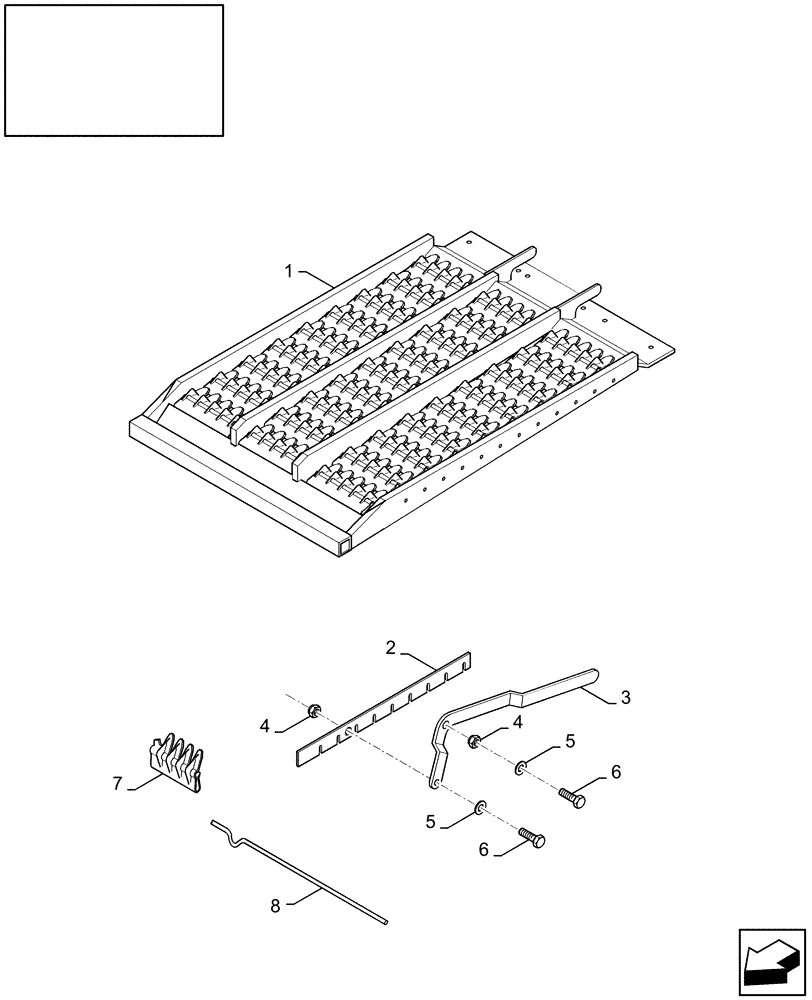

Запчасти Case IH AFX8010 (K.62.B.57[1]) - PRESIEVE K - Crop Processing

1

87284846

Assembly Presieve, 1-5/8" PET

1шт.

1

84076561

SIEVE

1-1/8" - Painted, Serial Range: -HAJ105126

1шт.

1

87109817

GRAIN SIEVE

1-1/8" - Galvanized, Start Serial: HAJ105126

1шт.

1

87105820

SIEVE

1-5/8" - Closz

1шт.

1

87109826

SIEVE

Closz 1-5/8" - Galvanized, was 87105820 - Painted

1шт.

1

87109821

SIEVE,1-5/8"

Corn, Galvanized Slats

1шт.

2

84434704

SLAT

1шт.

2

87109897

ADJUSTING PLATE

- Corn

1шт.

3

84434245

LEVER

1шт.

3

84434245

LEVER

Corn, Galvanized Slats

1шт.

4

353308

NUT,M6 x 1.0, Cl 8

2шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

481730

BAR

L=230 mm

40шт.

7

445571

BAR

L=240 mm

80шт.

7

87281019

BAR

Slat, Corn, Galvanized - L=233 mm

28шт.

7

445569

BAR,HC 1-1/8" X 240mm overall length

Slat, Closz,

56шт.

7

87281020

BAR

Slat, Corn, Galvanized - L=240.5 mm

56шт.

8

452791

RETAINING WIRE

20шт.

8

87109886

WIRE

Corn, Galvanized Slats

14шт.
