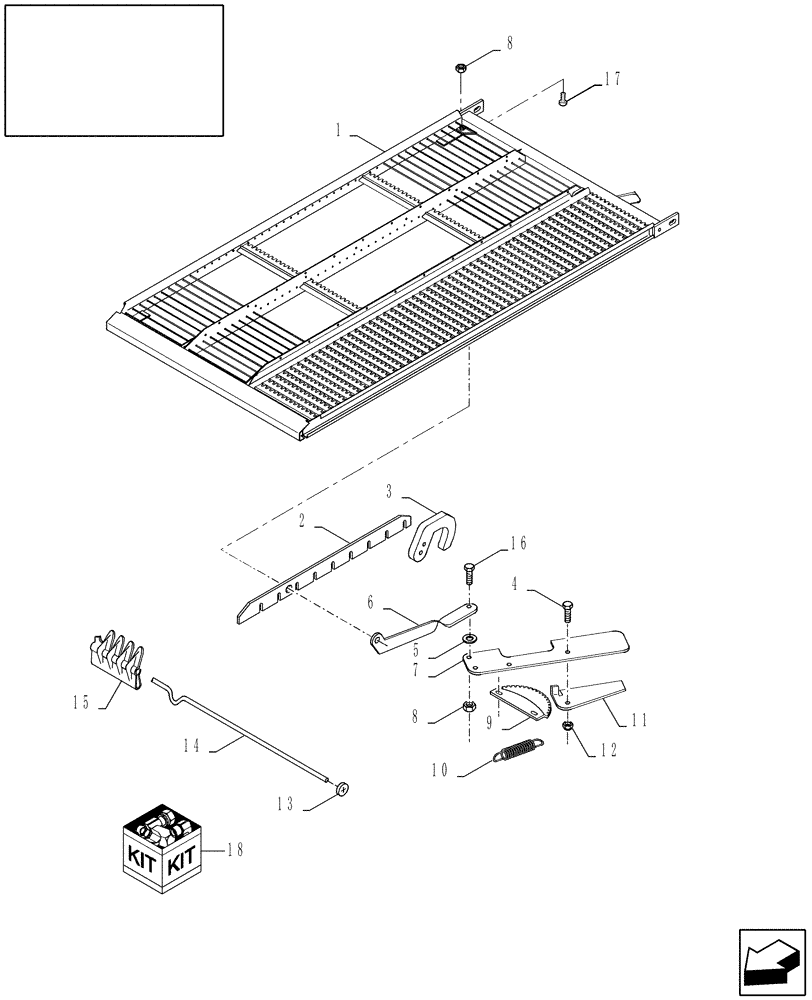

Запчасти Case IH AFX8010 (K.62.B.56[1]) - LOWER SIEVES K - Crop Processing

1

84320021

SIEVE

Grain Slat, 1 1/8" (3 to 15) - Painted

2шт.

Part Is Not Remote Ready; Refer To Ref. 18

1шт.

1

87109846

SIEVE

Grain Slat, 1 1/8" (3 to 15) - Galvanized

2шт.

Part Is Not Remote Ready; Refer To Ref. 18

1шт.

1

84400473

SIEVE

Closz Slat, 1 5/8" (3 to 15) - Painted

2шт.

Part Is Not Remote Ready; Refer To Ref. 18

1шт.

1

87109850

SIEVE

Closz Slat, 1 5/8" (3 to 15) - Galvanized

2шт.

Part Is Not Remote Ready; Refer To Ref. 18

1шт.

2

84056239

ADJUSTING PLATE

1шт.

3

84056254

INDICATOR

1шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

5

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

6

84056678

PLATE

1шт.

7

9817781

HANDLE

1шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

9

426565

QUADRANT

1шт.

10

449942

SPRING

1шт.

11

432187

HANDLE

1шт.

12

353308

NUT,M6 x 1.0, Cl 8

1шт.

13

398561

CLIP

1шт.

14

453189

WIRE

47шт.

15

445571

BAR

CL 1 1/8"-240

47шт.

15

481730

BAR

CL 1 1/8"-230

94шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

17

86528579

NUT,M8 x 1.25

5шт.

18

84084328

DIA KIT, HARVESTER

Closz Slat, 1 5/8" Sieve; Includes: Ref. 1, 87109850 (2), Adjusting Plates 84062611 (1) & 84053677 (1), Plus Mounting Hardware

1шт.

18

84084326

DIA KIT, HARVESTER

Grain Slat, 1 1/8" Sieve; Includes: Ref. 1, 87109846 (2), Adjusting Plates 84062611 (1) & 84053677 (1), Plus Mounting Hardware

1шт.
