Запчасти Case IH AFX8010 (K.62.B.52) - CLEANING FAN K - Crop Processing

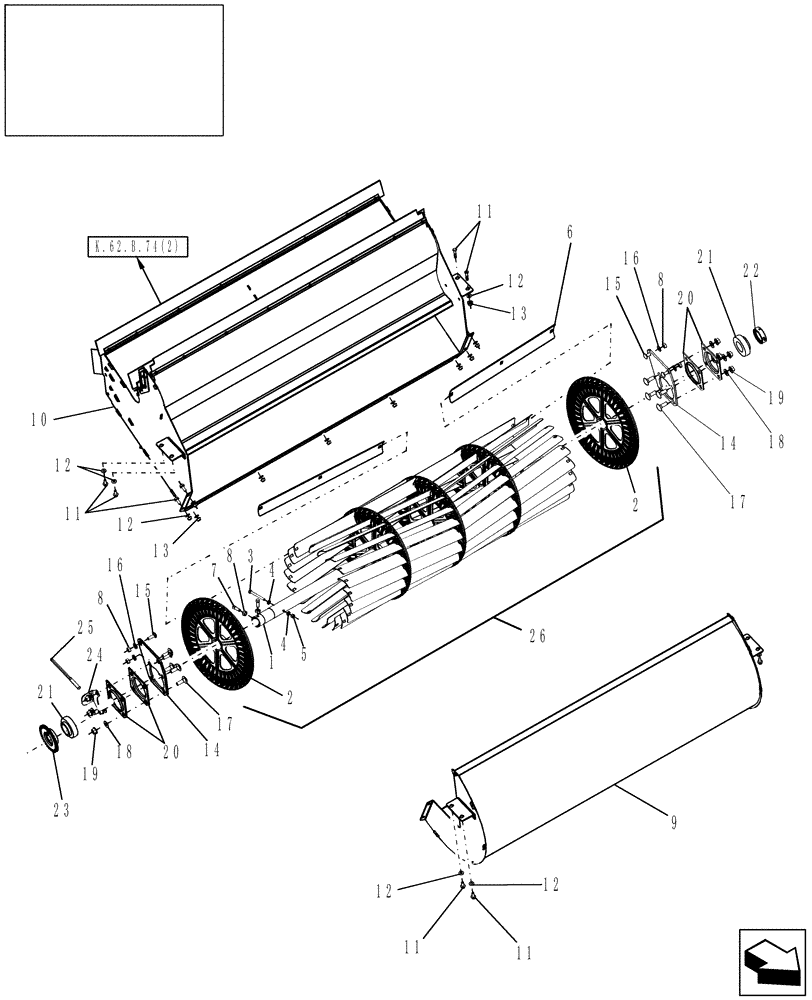

Схема запчастей Case IH AFX8010 - (K.62.B.52) - CLEANING FAN K - Crop Processing
22
12
4
20
11
2
19
11
13
16
24
18
15
26
21
17
12
4
25
21
8
23
11
18
12
8
13
20
5
10
12
1
11
7
14
16
15
14
k.62.b.74(2)
19
2
6
8
3
12
9
17

Артикул

Название

Примечание

Количество

1

87107303

SHAFT

Cleaning Fan

1шт.

2

86980769

DISC

Cleaning Fan

5шт.

3

80331175

BOLT

Cap, HH, CL 8.8, M8 x 1.25 x 75

5шт.

4

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

10шт.

5

832-46408

NUT,M8 x 1.25, Cl 8

5шт.

6

86997034

FAN BLADE

BLADE Cleaning Fan

40шт.

7

393599

SET SCREW,M10 x 25mm, Cl 12.9

2шт.

8

100016

NUT,M10 x 1.5, Cl 8

6шт.

9

86996396

DOOR

Cleaning Fan

1шт.

10

86981066

HOUSING

Fan

1шт.

10

87318136

HOUSING

Fan

1шт.

Enhanced Cleaning

1шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

17шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

17шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

11шт.

14

86997109

PLATE

Fan Bearing Support

2шт.

15

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

17

80328430

BOLT

Carriage, CL 8.8, M12 x 1.75 x 35

8шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

19

9804279

FLANGE NUT,Hex, M12, Cl 8

Flg, CL 8, M12 x 1.25

8шт.

20

716840

FLANGE

4шт.

21

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

2шт.

22

45631

COLLAR

Locking

1шт.

23

86996957

COLLAR

Cleaning Fan, Speed Pick-up

1шт.

24

86999732

BRACKET

Cleaning Fan Speed Sensor

1шт.

25

87105682

SENSOR

Cleaning Fan Speed

1шт.

26

87107366

FAN

Assembly; Includes: Ref.s 1 Thru 7

1шт.

Выбрано товаров: 28
