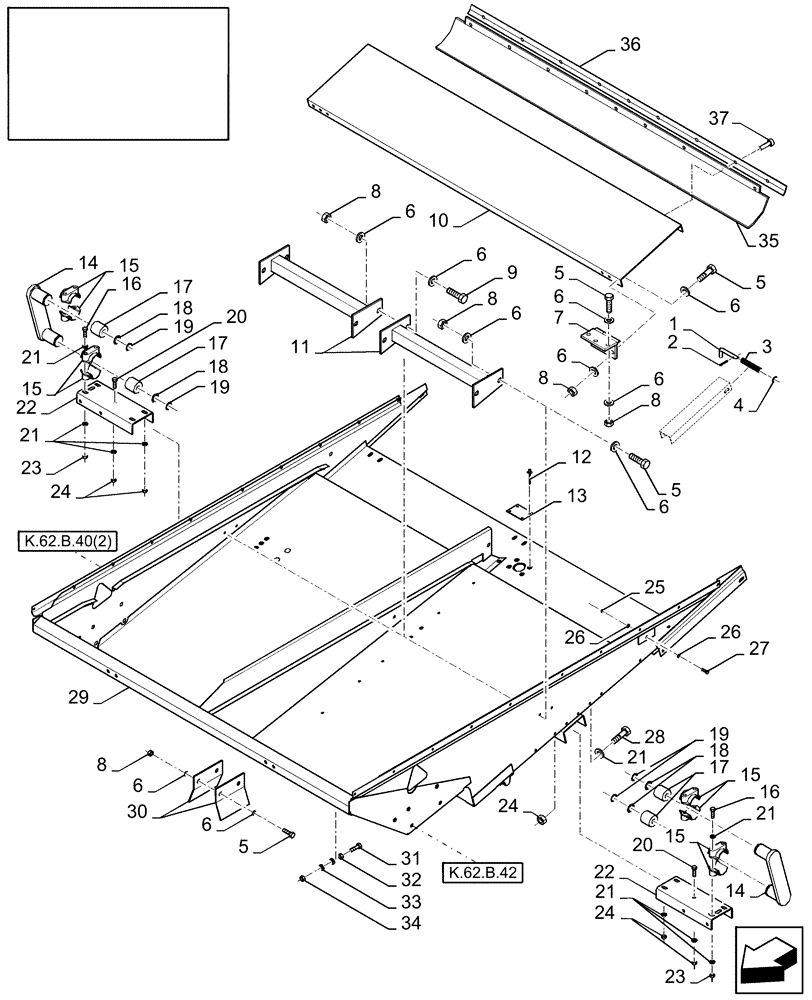

Запчасти Case IH AFX8010 (K.62.B.41[2]) - LOWER SHOE DRIVE K - Crop Processing

1

394549

HANDLE,12mm OD

2шт.

2

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

3

84814911

SPRING

2шт.

4

140223

WASHER,M13 x 25mm OD x 2mm Thk

2шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

6

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

7

9833212

HINGE

3шт.

8

9706755

NUT,M6, Cl 8

14шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

10

84073622

COVER

Wide, AFX8010

1шт.

10

84073389

COVER

Narrow, 7010

1шт.

11

84320452

PROFILE

Wide, AFX8010

2шт.

11

84320454

PROFILE

Narrow, 7010

2шт.

12

NS

NOT SERVICED

Rivet

4шт.

13

84056659

COVER

1шт.

14

84438529

ARM

189 mm long

2шт.

15

320033

BEARING HALF

8шт.

16

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

4шт.

17

84000052

RUBBER BUSHING,14mm ID x 40mm OD x 38mm L

4шт.

18

84032520

WASHER,19.5mm ID x 29mm OD x 1mm Thk

4шт.

19

300627

SNAP RING,M19, External

4шт.

20

412597

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

22

747826

SUPPORT

2шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

12шт.

24

9706690

NUT,M8 x 1.25, Cl 8

6шт.

25

9706685

NUT,M12 x 1.75, Cl 8

1шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

27

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

M12 x 40

1шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

29

86975037

SHAKER SHOE

Wide, AFX8010

1шт.

29

87282098

SHAKER SHOE

Wide, AFX8010

1шт.

29

87314822

SHAKER SHOE

Wide, AFX8010, Start Serial: HAJ106017

1шт.

Enhanced Cleaning

1шт.

29

84442682

SHAKER SHOE

Narrow, 7010

1шт.

30

84012802

PLATE

2шт.

31

86977775

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

32

320648

NUT,M10, Cl 8

1шт.

33

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

34

100016

NUT,M10 x 1.5, Cl 8

1шт.

35

87105832

CANVAS,250mm W x 1585mm OAL

Rubber, AFX8010

1шт.

35

87000266

SEAL SHEET

Rubber, 7010

1шт.

36

87000280

STRIP

Fixing, Start Serial: HAJ106017

1шт.

Enhanced Cleaning

1шт.

36

87000278

STRIP

Fixing

1шт.

37

84446204

RIVET,Pop, 6.28mm OD x 19.5mm L

1шт.
