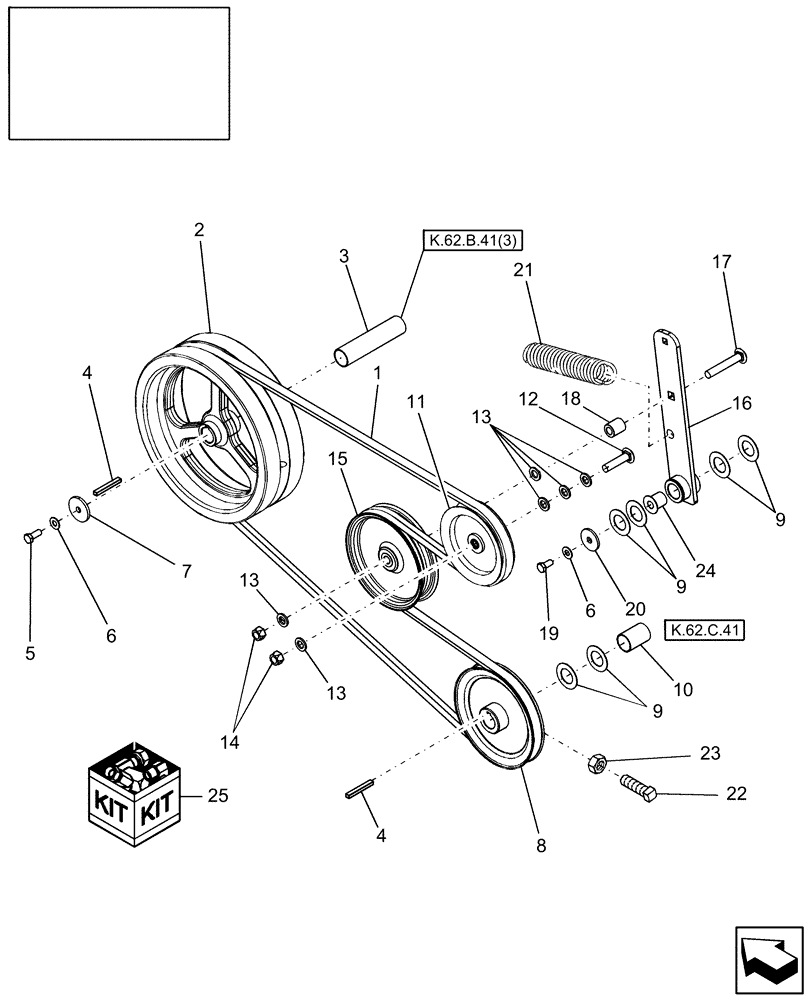

Запчасти Case IH AFX8010 (K.62.B.41[1]) - SHOE DRIVE K - Crop Processing

1

86980546

V-BELT

Drive

1шт.

1

87317063

V-BELT,3651mm Nominal Length x 22.33mm W

Drive

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

2

86996714

PULLEY,346.5mm Idler Dia x 382.2mm OD

Shaker Flywheel

1шт.

3

87545449

SPACER

Shaker Shaft - Was 86996475

1шт.

4

86996914

KEY

M10 x 8 x 75

2шт.

5

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

5

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

Enhanced Cleaning

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

Enhanced Cleaning

1шт.

7

86975743

WASHER,13.22mm ID x 57.5mm OD x 7.1mm Thk

, Years: -09-FEB-04

1шт.

7

87280750

WASHER,13.49mm ID x 50.8mm OD x 6.35mm Thk

, Start Year: 09-FEB-04

1шт.

7

87023036

WASHER,0.53" ID x 2" OD x 0.25" Thk

1шт.

Enhanced Cleaning

1шт.

8

87282787

PULLEY

233.4 mm OD, 1 HC, Inc. Ref. 22 & 23, Replaces 86998546

1шт.

8

87313372

PULLEY,203.5mm OD

205 mm OD, 1 HC, Inc. Ref. 22 & 23

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

9

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

6шт.

10

86996855

SPACER

Tailings Cross Auger - 37.06 mm x 41.275 x 59.5 mm long, Years: -09-FEB-04

1шт.

10

87283138

SPACER

Tailings Cross Auger - 37.06 mm x 41.275 x 47 mm long, Start Year: 09-FEB-04

1шт.

11

87499861

IDLER,185.67mm OD

Pulley, Idler

1шт.

Service Pulley Has A Thicker Hub Than Production; If Replacing Original Part, Must Remove Two Washers, Ref. 13

1шт.

12

80120047

BOLT

Carriage, Short Neck, CL 8.8, M16 x 2 x 70

1шт.

13

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

6шт.

14

86512555

NUT,M16 x 2, Cl 10

2шт.

15

86588003

IDLER,51.6mm W x 228.6mm OD

1шт.

16

87105089

ARM

Shaker Pivot Idler - Includes Ref. 24, Years: -09-FEB-04

1шт.

16

87283323

ARM

Shaker Pivot Idler - Includes Ref. 24, Start Year: 09-FEB-04

1шт.

17

322362

CARRIAGE BOLT,M16 x 100mm, Cl 8.8

, Years: -09-FEB-04

1шт.

17

120047

CARRIAGE BOLT,M16 x 70mm, Cl 8.8

, Start Year: 09-FEB-04

1шт.

18

86999741

SPACER,16.5mm ID x 30mm OD x 35mm L

Shaker Pivot Idler

1шт.

19

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

20

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

1шт.

21

86980549

SPRING

Shaker Pivot Idler

1шт.

22

300480

SET SCREW,M10 x 12mm

1шт.

22

393599

SET SCREW,M10 x 25mm, Cl 12.9

3шт.

Enhanced Cleaning

1шт.

23

100016

NUT,M10 x 1.5, Cl 8

3шт.

24

86996520

BUSHING

1шт.

25

87352563

DIA KIT, HARVESTER

Enhanced Cleaning

1шт.
