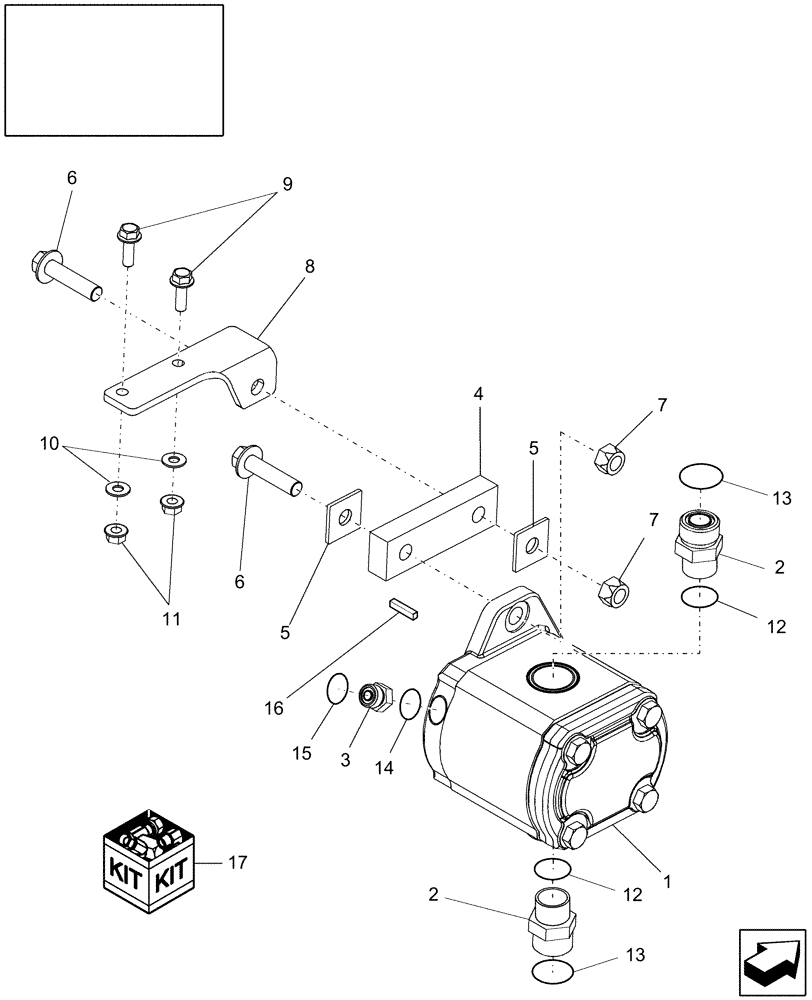

Запчасти Case IH AFX8010 (K.62.B.40[1]) - CLEANING FAN, VARI-DRIVE K - Crop Processing

1

87105499

HYDRAULIC MOTOR,GEAR, 38 CC

Cleaning Fan; Includes: Ref. 16 - See Also, Ref. 17

1шт.

87105499R

REMAN-HYD MOTOR

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06)

1шт.

87105499C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

3

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

1шт.

4

87105907

BAR

Cleaning Fan Drive

1шт.

5

87105920

PLATE

Cleaning Fan Drive

2шт.

6

86512260

BOLT,Hex Serr, M12 x 1.75 x 50mm

2шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

87105906

BRACKET

1шт.

9

86512253

BOLT,Hex Flg, M8 x 25mm

2шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

12

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

87545936

KEY,6.35mm W x 21mm OAL x 6.35mm Thk

1шт.

17

87010913

SEAL KIT

Kit

1шт.
