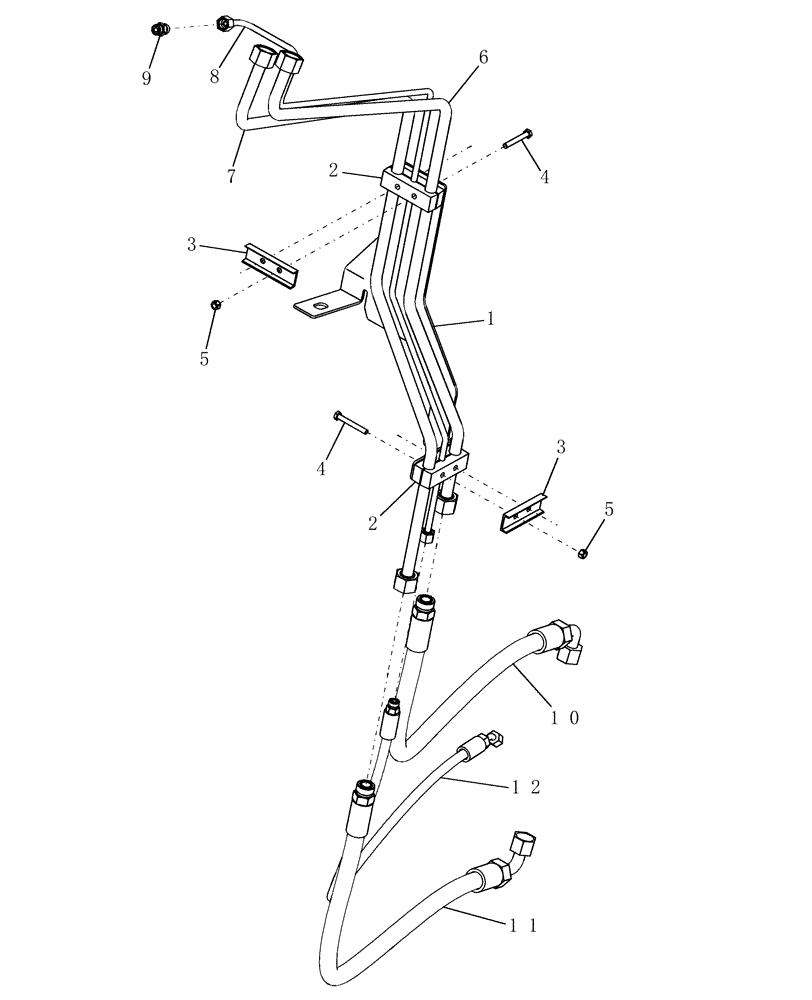

Запчасти Case IH AFX8010 (K.62.B.05[1]) - HYDRAULIC LINES - SYSTEM CLEANING FAN K - Crop Processing

1

87108752

BRACKET

1шт.

2

86998883

CLAMP

Hydraulic Tube

2шт.

3

87000242

CHANNEL

Clamp Back-Up

2шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

5

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

6

86996187

HYD TUBE,0.75" OD

Supply, Cleaning Fan

1шт.

7

86998285

HYD TUBE,0.75" OD

Return, Cleaning Fan

1шт.

8

87106611

HYD TUBE,0.375" OD

Drain, Cleaning Fan

1шт.

9

84431546

UNION,11/16"-16 ORFS

1шт.

10

87105727

FLEXIBLE HOSE

Supply, Fan Motor

1шт.

11

86998746

FLEXIBLE HOSE

Return, Fan Motor

1шт.

12

86998747

FLEXIBLE HOSE

Drain, Fan Motor

1шт.
