Запчасти Case IH AFX8010 (K.60.B.95) - GRAIN FLOW SENSOR K - Crop Processing

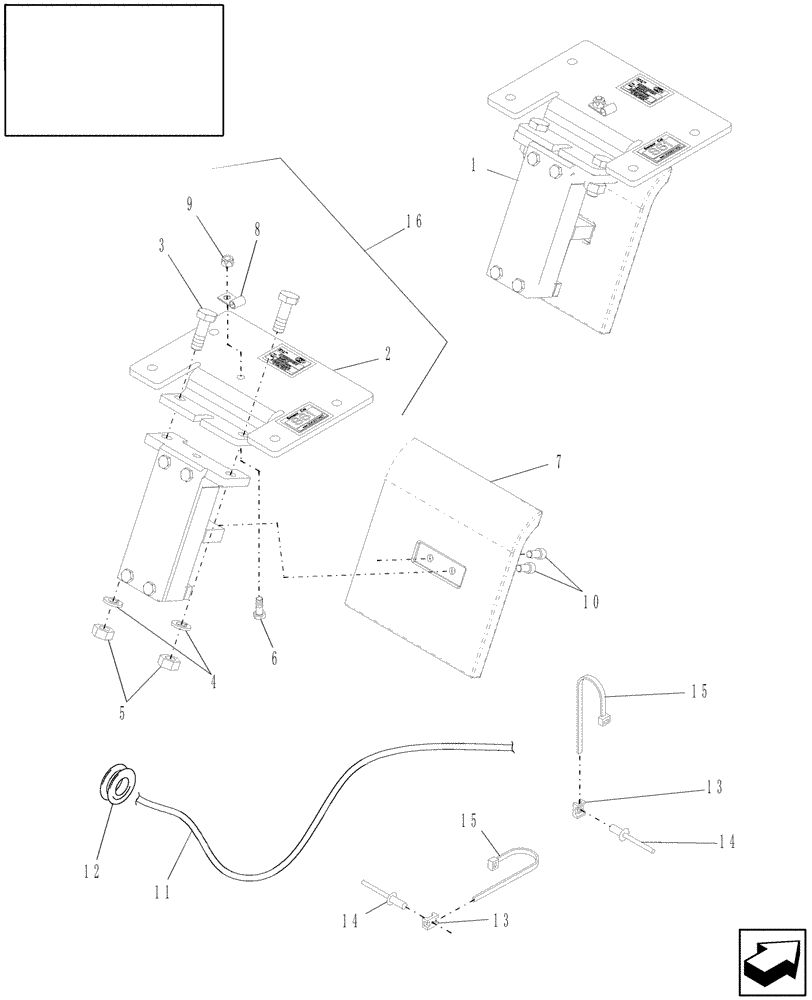

Схема запчастей Case IH AFX8010 - (K.60.B.95) - GRAIN FLOW SENSOR K - Crop Processing
6
8
1
4
13
15
9
7
14
14
5
15
3
16
2
10
13
11
12

Артикул

Название

Примечание

Количество

1

86999635

SENSOR

Includes: Ref. 2 thru 10 or 16, 7, & 10 with Aluminum Plate

1шт.

1

87282463

SENSOR

Includes: Ref. 2 thru 10 with Stainless Steel Plate

1шт.

1

87283659

SENSOR

Includes: Ref. 2 thru 10 with Plastic Plate, Start Serial: HAJ105342

1шт.

2

87109288

SUPPORT

Plate

1шт.

2

87283658

SUPPORT

Plate, Start Serial: HAJ105342

1шт.

3

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

100016

NUT,M10 x 1.5, Cl 8

2шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

7

87280785

PLATE

Aluminum

1шт.

7

87282433

PLATE

Stainless Steel

1шт.

7

87283836

PLATE

Plastic, Includes (2) Ref. 10, Start Serial: HAJ105342

1шт.

8

272535

CLAMP,1/8", Insul, 1/4" Bolt

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

11

87280760

WIRE HARNESS

Flow and Moisture

1шт.

12

87035867

GROMMET,5/8" ID x 1 1/4" Groove Dia

1шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

5шт.

14

425521

RIVET,Pop, 3.96mm OD x 12.2mm L

5шт.

15

86566989

CABLE TIE,208mm L

CABLE STRAP

5шт.

16

86999636

SENSOR

Flow - Includes Ref. 2, 3, 4, 5, 6, 8 & 9

1шт.

Выбрано товаров: 21
