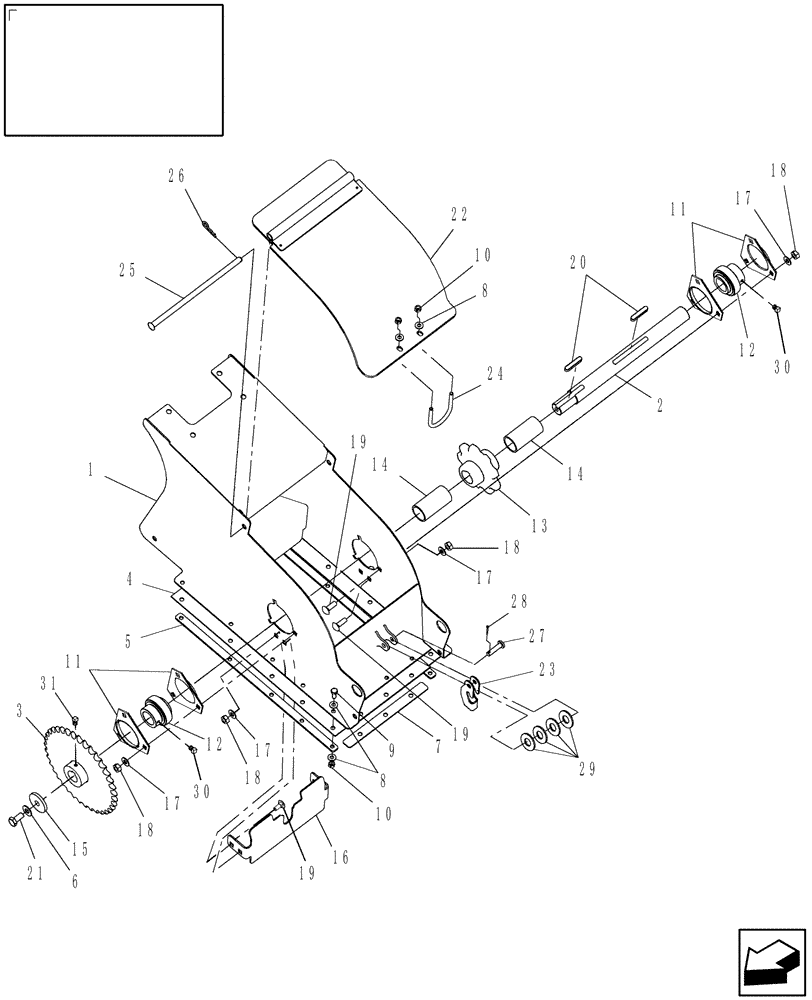

Запчасти Case IH AFX8010 (K.60.B.74[1]) - ELEVATOR HEAD K - Crop Processing

1

87282412

FRAME

Replaced 87109448, Start Serial: HAJ105101

1шт.

1

87282644

FRAME

Extended Wear, Start Serial: HAJ105101

1шт.

2

86998178

SHAFT

1шт.

3

87748377

SPROCKET ASSY.

Sprocket, Driven, Start Serial: HAJ105101

1шт.

4

87283706

SEAL

1шт.

5

86998906

PLATE

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

7

86998908

PLATE

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

28шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

13шт.

10

832-46408

NUT,M8 x 1.25, Cl 8

15шт.

11

86620026

FLANGED BEARING

4шт.

12

84814912

BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm

& Locking Collar

2шт.

13

87283438

SPROCKET

Drive

1шт.

14

86998922

SPACER,36.45mm ID x 42.92mm OD x 83mm L

Spacer, Elevator Head

2шт.

15

87023036

WASHER,0.53" ID x 2" OD x 0.25" Thk

1шт.

16

86998886

PLATE

Strip-Off

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

18

100016

NUT,M10 x 1.5, Cl 8

10шт.

19

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

10шт.

20

170012

KEY,8mm W x 50mm OAL

2шт.

21

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

22

87109213

COVER

Top, Start Serial: HAJ105101

1шт.

23

86581559

HANDLE

1шт.

24

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

1шт.

25

86998942

PIN

1шт.

26

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

27

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

28

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

30

877-3086

SET SCREW

2шт.

31

380530

SET SCREW,Hex, M8 x 10mm

1шт.
