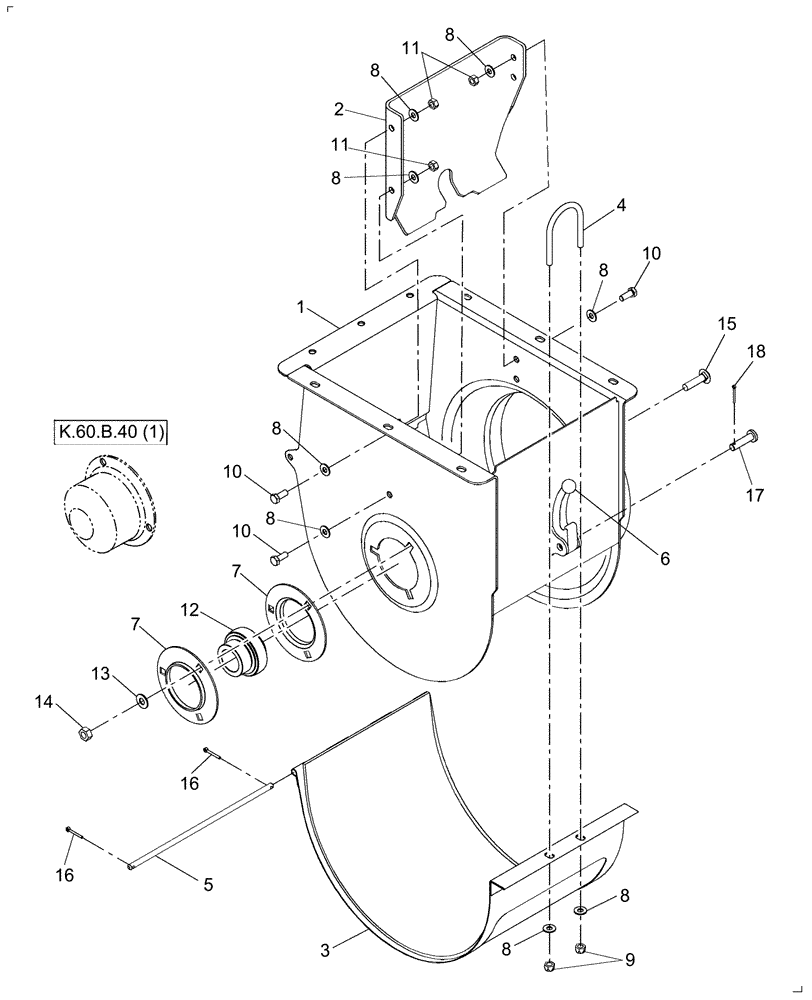

Запчасти Case IH AFX8010 (K.60.B.52[3]) - BOTTOM BOOT, CLEAN GRAIN ELEVATOR - PRIOR TO P.I.N. HAJ106401 K - Crop Processing

1

87108780

HOUSING, GRAIN ELEVA

Body

1шт.

2

87108691

PLATE

Strip - Off

1шт.

3

87108609

DOOR

Std.

1шт.

3

87108771

DOOR

Round Holes, Years: -09-FEB-04

1шт.

3

87282576

DOOR

Round Holes, Start Year: 09-FEB-04

1шт.

3

87108774

DOOR

Slotted Holes

1шт.

4

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

1шт.

5

86998877

PIN

1шт.

6

86975722

LATCH

1шт.

7

36403

BEARING HOUSING

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

9

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

9706690

NUT,M8 x 1.25, Cl 8

4шт.

12

84814912

BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm

& Locking Collar

1шт.

12

877-3086

SET SCREW

Set Screw

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

14

100016

NUT,M10 x 1.5, Cl 8

3шт.

15

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

16

80755

COTTER PIN,1/8" OD x 1" L

2шт.

17

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

18

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.
