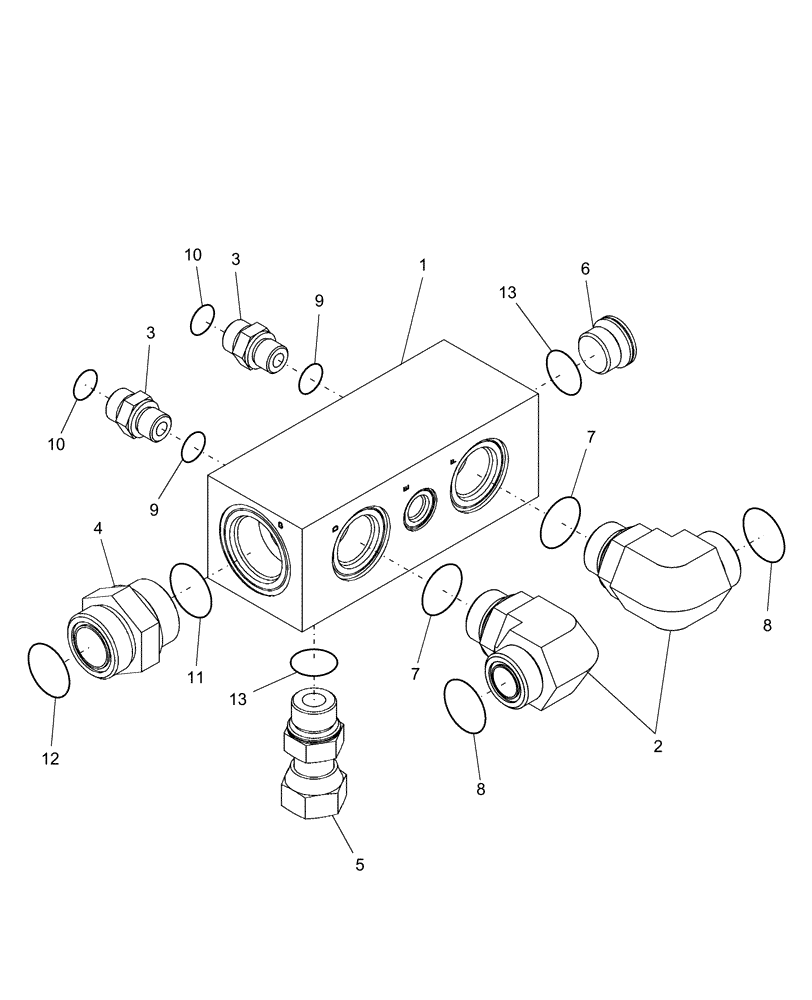

Запчасти Case IH AFX8010 (A.12.A.36) - DRAIN MANIFOLD BLOCK A - Distribution Systems

87108152

MANIFOLD

Includes: Ref. 1 - 13

1шт.

1

87108222

MANIFOLD

Drain Return

1шт.

2

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

2шт.

3

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

4

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

1шт.

5

86998396

FITTING

1шт.

6

86598048

PLUG,Hex Soc, M27 x 2, ORB

1шт.

7

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

12

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

13

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.
