(K.60.B.51[2]) - GRAIN TANK BOTTOM, EXTENDED WEAR KIT

Запчасти Case IH AFX8010 (K.60.B.51[2]) - GRAIN TANK BOTTOM, EXTENDED WEAR KIT K - Crop Processing

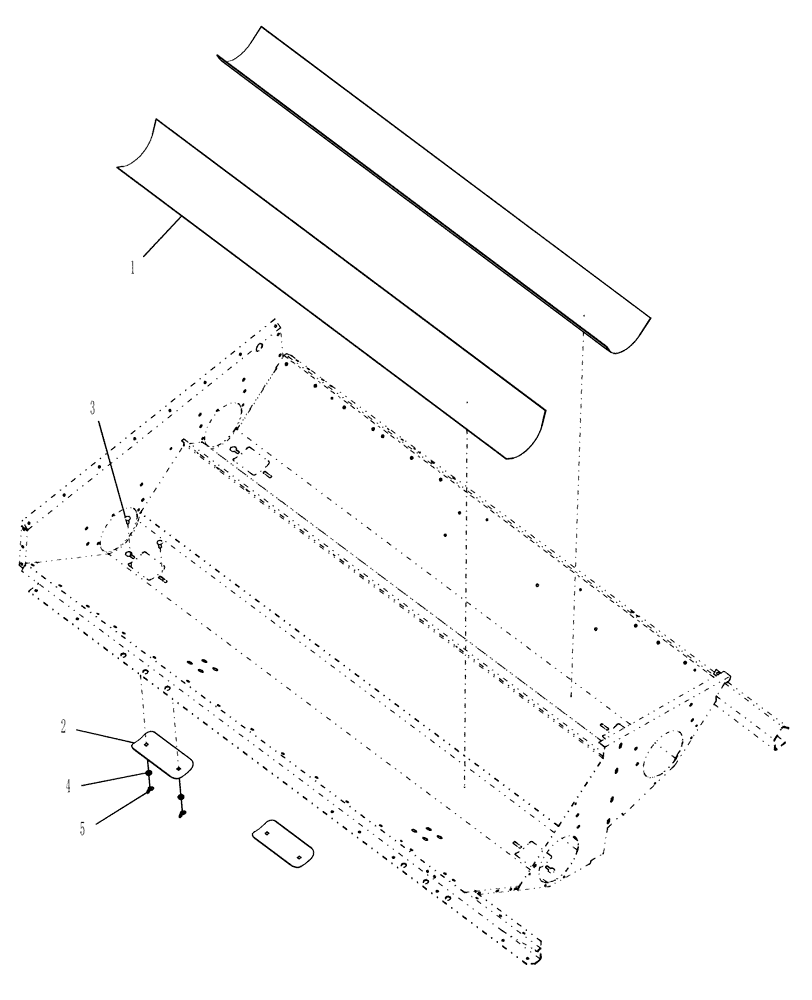

Схема запчастей Case IH AFX8010 - (K.60.B.51[2]) - GRAIN TANK BOTTOM, EXTENDED WEAR KIT K - Crop Processing
2
4
5
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87315135

DIA KIT, HARVESTER

Tank Bottom, Extended Wear, Includes Ref. 1 - 5

1шт.

87324911

SERVICE KIT

Cleanout Doors, Includes Ref. 2 - 5

1шт.

1

87315123

FLOOR

Weld in Part

2шт.

2

84455919

COVER

2/4шт.

3

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4/8шт.

4

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4/8шт.

5

84814893

WING NUT,M10 x 1.5

4/8шт.
