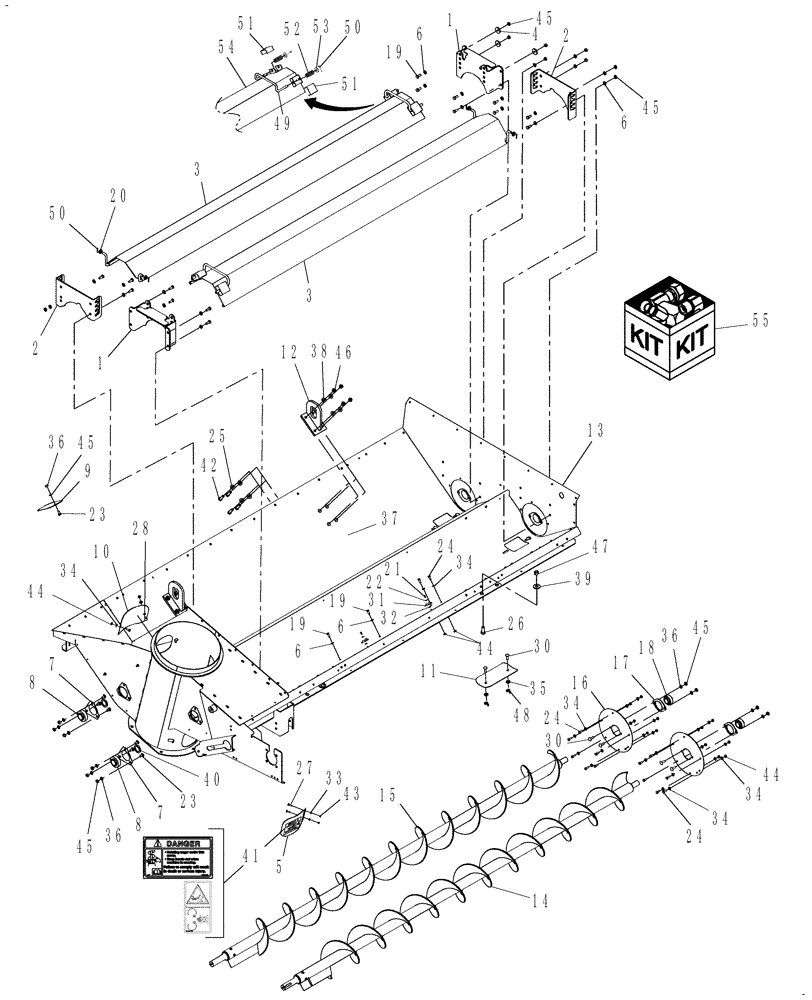

Запчасти Case IH AFX8010 (K.60.B.51[1]) - GRAIN TANK, BOTTOM & AUGERS K - Crop Processing

1

86975993

BRACKET

2шт.

2

86975994

BRACKET

2шт.

3

86975412

COVER

Assy, Includes: Refs. 49-54

2шт.

4

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3шт.

5

87510557

DOOR

1шт.

For NA Only

1шт.

5

87583788

DOOR

With Latch

1шт.

For NA Only

1шт.

5

87510556

DOOR

1шт.

For EU Only

1шт.

5

87583787

DOOR

With Latch

1шт.

For EU Only

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

7

86620026

FLANGED BEARING

4шт.

8

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

9

86600691

COVER

1шт.

10

86597524

COVER

1шт.

11

84455919

COVER

3.0 mm Thick; Was 87105680 1.5 mm Thick, Start Year: 05-MAY-05, Start Serial: HAJ106030

4шт.

12

84438598

SUPPORT

Plate

2шт.

13

87510509

TANK

Bottom

1шт.

NA

1шт.

13

87284037

TANK

Bottom

1шт.

For EU Only

1шт.

14

84075320

AUGER

Rear

1шт.

14

87280343

AUGER

Rear, Ext. Wear

1шт.

15

84075319

AUGER

Front

1шт.

15

87280345

AUGER

Front, Ext. Wear

1шт.

16

84072842

PLATE

Bearing

2шт.

17

87106572

FLANGE

4шт.

18

84069440

BALL BEARING,30 mm ID x 62 mm OD x 48.4 mm

2шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

17шт.

20

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

4шт.

21

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

22

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

2шт.

23

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

7шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

25

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

26

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

6шт.

27

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

28

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

29

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

30

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

31

362786

FASTENER

2шт.

32

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

2шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

35

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

36

412655

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.6mm Thk

11шт.

37

449973

DECAL

1шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

39

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

6шт.

40

84075099

WASHER,36mm ID x 51mm OD x 6mm Thk

2шт.

41

86640420

DANGER DECAL

1шт.

For NA Only

1шт.

41

84004736

DANGER DECAL

1шт.

For EU Only

1шт.

42

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

M16

8шт.

43

9706755

NUT,M6, Cl 8

1шт.

44

9706690

NUT,M8 x 1.25, Cl 8

16шт.

45

100016

NUT,M10 x 1.5, Cl 8

1шт.

46

9706685

NUT,M12 x 1.75, Cl 8

8шт.

47

825-1416

NUT,M16, Cl 8

6шт.

48

84814893

WING NUT,M10 x 1.5

8шт.

49

86975418

HANDLE

2шт.

50

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

8шт.

51

86976481

COVER

4шт.

52

80025823

SPRING,63.5mm Free Length

Guard and Lock

4шт.

53

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

4шт.

54

87284631

COVER

Was 86975414

2шт.

55

87753014

DIA KIT, HARVESTER

Kit, Grain Tank Sump Unload Wear

1шт.
