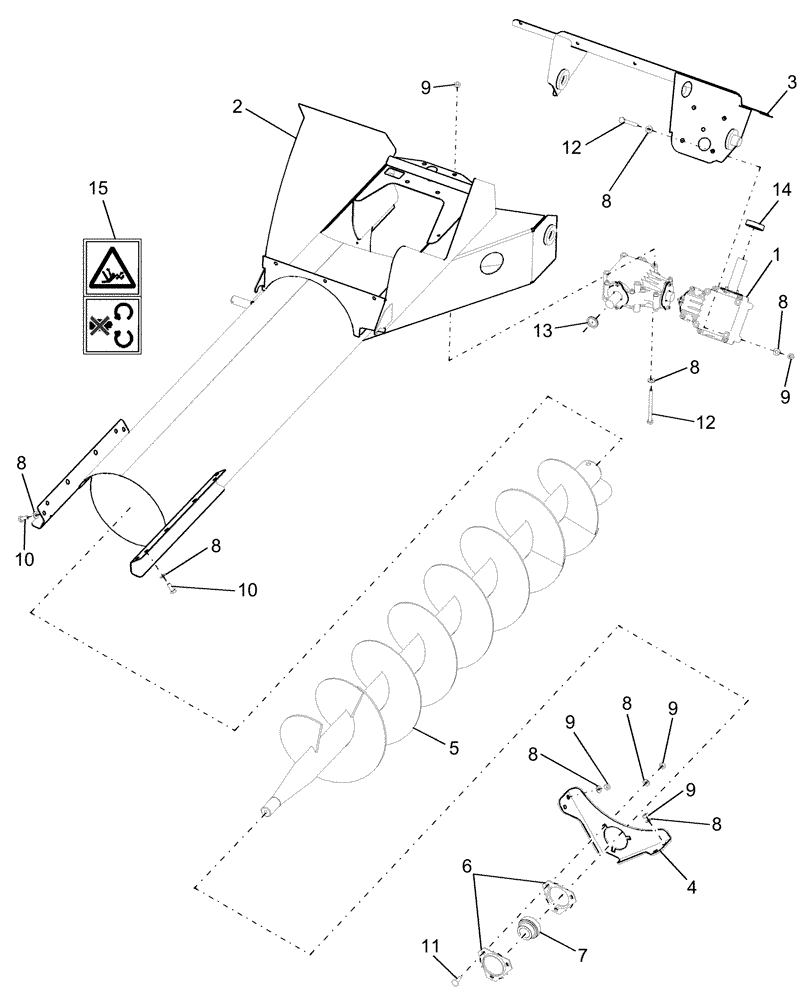

Запчасти Case IH AFX8010 (K.60.B.50[1]) - BUBBLE-UP AUGER K - Crop Processing

1

86638425

GEARBOX

For Component Breakdown, See Fig. K.60.B.50[2]

1шт.

86638425R

REMAN-GEARBOX

AFX8010, AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999 (3/03-9/06)

1шт.

86638425C

CORE-GEARBOX

Return Number

1шт.

2

87600218

SERVICE KIT

2148 mm - Includes Ref. 16

1шт.

2

87109440

TUBE

Extended Wear, 2148 mm

1шт.

2

87105972

TUBE

1918 mm

1шт.

2

87105977

TUBE

Extended Wear, 1918 mm

1шт.

2

87284083

TUBE

Includes Ref. 15, 1918 mm

1шт.

For EU Only

1шт.

2

87284084

TUBE

Extended Wear - Includes Ref. 15, 1918 mm

1шт.

For EU Only

1шт.

3

87107022

SUPPORT

1шт.

4

86998682

BRACKET

1шт.

5

87106613

AUGER

2072 mm

1шт.

5

87106615

AUGER

Extended Wear, 2072 mm

1шт.

5

87106625

AUGER

Extended Wear, 1842 mm

1шт.

For EU Only

1шт.

6

86620026

FLANGED BEARING

2шт.

7

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

7

87016482

SET SCREW,M10 x 10mm

Set Screw

1шт.

Not Shown

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

23шт.

9

100016

NUT,M10 x 1.5, Cl 8

15шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

12

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

8шт.

13

87280933

SEAL,28.96mm ID x 37.08mm OD x 7.62mm Thk

1шт.

14

87282653

SEAL,38mm ID x 68mm OD x 32mm Thk

1шт.

15

84004736

DANGER DECAL

Never Reach Into Rotating Auger

1шт.

16

86640420

DANGER DECAL

Danger

1шт.
