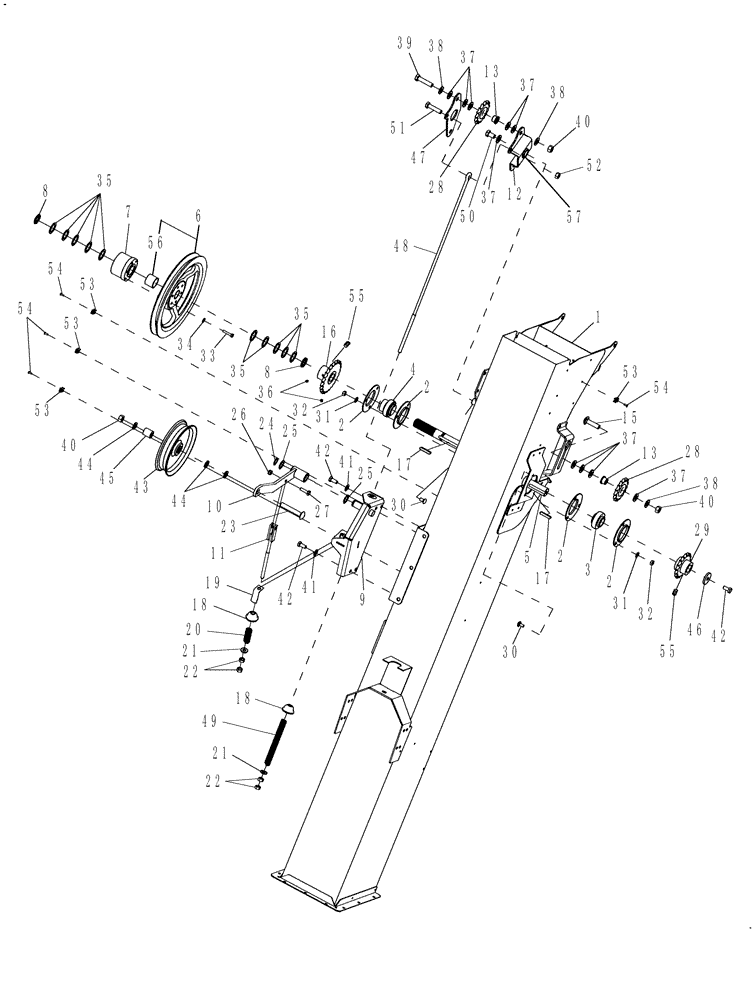

Запчасти Case IH AFX8010 (K.60.B.42[1]) - ELEVATOR HOUSING AND DRIVES K - Crop Processing

1

87282466

ELEVATOR

Housing - Replaces 87108811, Start Serial: HAJ105101

1шт.

1

87108809

ELEVATOR

Housing - Extended Wear, Start Serial: HAJ105101

1шт.

2

36403

BEARING HOUSING

Round

4шт.

2

86620026

FLANGED BEARING

Triangular

4шт.

3

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

4

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

, Start Serial: HAJ105101

1шт.

4

87016482

SET SCREW,M10 x 10mm

Set Screw

1шт.

Not Shown

1шт.

5

86998117

SHAFT

, Serial Range: -HAJ105770

1шт.

5

87283680

SHAFT

, Start Serial: HAJ105771

1шт.

6

87000270

PULLEY

Includes: Ref. 56

1шт.

7

86975811

CLUTCH ASSEMBLY

, Serial Range: -HAJ106892

1шт.

7

87527860

CLUTCH ASSEMBLY

, Start Serial: HAJ106893

1шт.

8

851000

SNAP RING,1.276" ID x 0.172" Thk

2шт.

9

87108857

MOUNTING PLATE

, Start Serial: HAJ105101

1шт.

10

86999187

ARM

Includes 2 Bushings PN 84057311

1шт.

11

86999557

ADJUSTMENT ROD

1шт.

12

87108820

ARM

, Start Serial: HAJ105101

1шт.

13

84334697

BUSHING,17mm ID x 32mm OD x 18.8mm L

Hub

3шт.

15

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

1шт.

16

87108702

SPROCKET

Drive, Serial Range: HAJ105101-HAJ105770

1шт.

16

87283695

SPROCKET

, Start Serial: HAJ105771

1шт.

17

170012

KEY,8mm W x 50mm OAL

, Serial Range: -HAJ105770

2шт.

17

87283679

KEY,9.978mm W x 41.5mm OAL x 7.955mm Thk

, Start Serial: HAJ105771

2шт.

18

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

Pivot

2шт.

19

84073601

INDICATOR

1шт.

20

681902

SPRING

.80 ID x 3.49

1шт.

21

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

22

9706685

NUT,M12 x 1.75, Cl 8

4шт.

23

322362

CARRIAGE BOLT,M16 x 100mm, Cl 8.8

1шт.

24

370002

CIRCLIP,M25, External

1шт.

25

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

2шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

27

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

28

84980926

SPROCKET

Driven, Years: -09-FEB-04, Start Serial: HAJ105101

3шт.

28

87283101

SPROCKET,15T

, Start Year: 09-FEB-04

3шт.

29

86999488

SPROCKET

Drive, Serial Range: -HAJ105770

1шт.

29

87731456

SPROCKET

With Set Screw Hole, Start Serial: HAJ105771

1шт.

30

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

6шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

32

100016

NUT,M10 x 1.5, Cl 8

6шт.

33

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

6шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

35

87280749

WASHER,35.05mm ID x 47.7mm OD x 2.8mm Thk

Flat

1шт.

36

80428

SET SCREW,5/16"-18 x 3/8"

Cup Pt, BSN

2шт.

37

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

1шт.

38

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

5шт.

39

120092

BOLT,M16 x 70mm, Cl 8.8

2шт.

40

825-1416

NUT,M16, Cl 8

4шт.

41

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

42

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

42

86553833

SCREW,M12 x 1.75 x 50mm, 10.9

1шт.

43

86588003

IDLER,51.6mm W x 228.6mm OD

1шт.

44

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

3шт.

45

86975913

SPACER,17.46mm ID x 30.16mm OD x 33mm L

1шт.

46

87280750

WASHER,13.49mm ID x 50.8mm OD x 6.35mm Thk

13.49 mm ID x 50.8 mm OD

1шт.

46

87284462

THRUST WASHER

Countersunk, 50 mm OD

1шт.

47

87108823

PLATE

, Start Serial: HAJ105101

1шт.

48

87108864

EYEBOLT

, Start Serial: HAJ105101

1шт.

49

87108903

SPRING

, Start Serial: HAJ105101

1шт.

50

374888

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

1шт.

51

300809

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8

Replaces 87024342

1шт.

52

100038

NUT,M12 x 1.75, Cl 8

Replaces 87397

1шт.

53

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

4шт.

54

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

55

380530

SET SCREW,Hex, M8 x 10mm

2шт.

56

80535318

BUSHING

1шт.

57

395589

BUSHING,25mm ID x 28mm OD x 30mm L

1шт.
