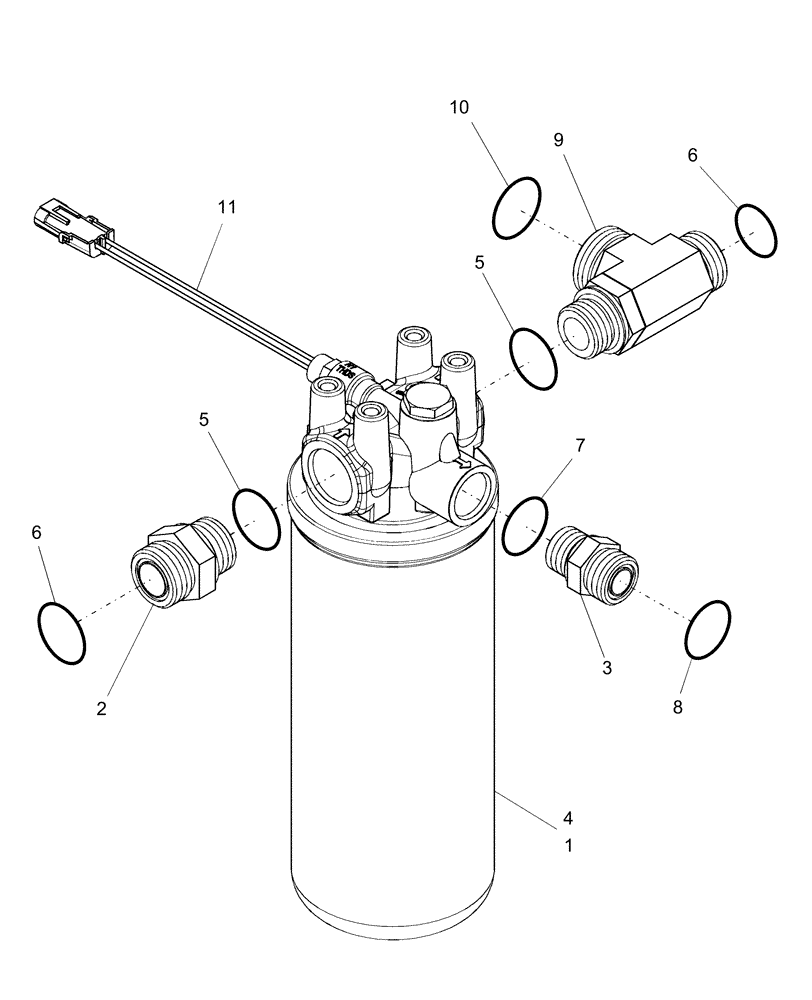

Запчасти Case IH AFX8010 (A.12.A.24[2]) - FILTER ASSY. - HYDRO CHARGE A - Distribution Systems

1

86975883

HYDRAULIC OIL FILTER

Hydro Pressure, 14.6" long

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

1шт.

3

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

1шт.

4

254353A1

HYDRAULIC OIL FILTER

11.6" long

1шт.

5

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

87282542

PIPE FITTING

Fitting, Tee

1шт.

10

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

87447716

SWITCH

Filter Bypass

1шт.
