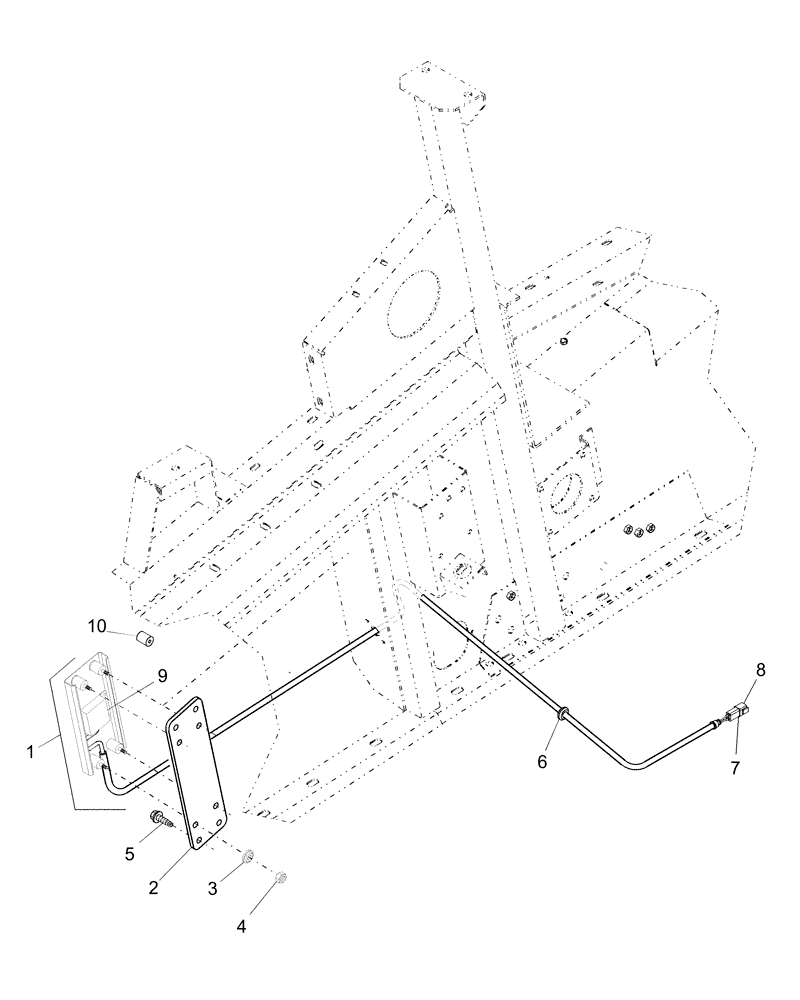

Запчасти Case IH AFX8010 (K.40.C.95) - ROTOR LOSS SENSOR K - Crop Processing

1

84131601

SENSOR

Sensor; Includes Ref. 6, 7 ,8 , 9 & 10

2шт.

2

86997801

BRACKET

2шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

4

9706755

NUT,M6, Cl 8

8шт.

5

84733

SELF-TAP SCREW,Hex, 1/4" OD x 3/8"

8шт.

6

86837476

GROMMET,M16 x 29.5 x 22

2шт.

7

84074630

CONTACT HOUSING,Male, 2 Pole

2шт.

8

86575790

PIN

Cable Lug

4шт.

9

84000257

SENSOR

Filter Kit

2шт.

10

84131033

DAMPER,25mm OD x 62mm L

8шт.
