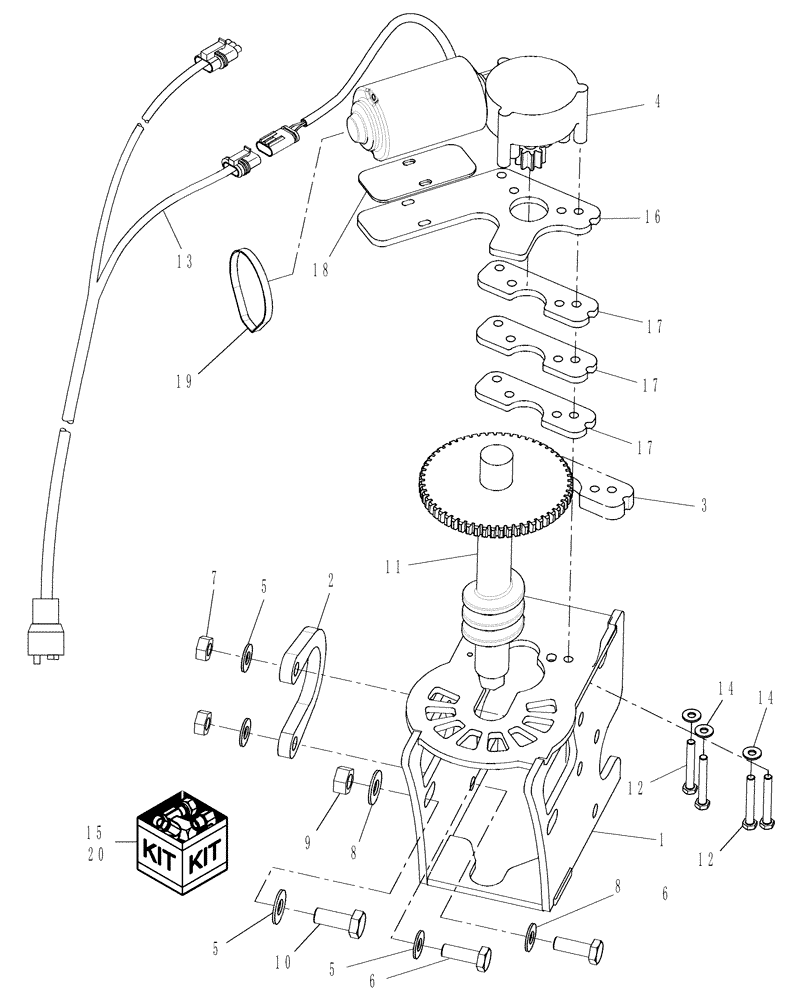

Запчасти Case IH AFX8010 (K.40.C.82[02]) - MOTOR, CONCAVE ADJUSMENT - PIN HAJ105201 AND AFTER K - Crop Processing

1

87342204

BRACKET

Was 87280691

1шт.

2

86997859

BRACKET

LH

1шт.

3

87280688

SUPPORT

Plate - Replaced by Ref. 16, 17, 18, 19

1шт.

4

87352496

ELECTRIC MOTOR

Was 87280687

1шт.

4

84273916R

REMAN-ELECTRIC MOTOR

Reman for New PN 87352496

1шт.

4

84273916C

CORE-ELECTRIC MOTOR

Return Number

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

7

100016

NUT,M10 x 1.5, Cl 8

2шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

9

9706685

NUT,M12 x 1.75, Cl 8

1шт.

10

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

11

87109757

SHAFT

1шт.

12

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

4шт.

13

87280772

WIRE HARNESS

1шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

15

87352554

SERVICE KIT

Motor Support - Includes Ref. 16, 17, 18 & 19

1шт.

16

87352933

PLATE

1шт.

17

87052251

PLATE

3шт.

18

87352553

SHIM,40mm OD x 2.14mm Thk

1шт.

19

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

20

87727206

DIA KIT, HARVESTER

Kit, Motor Gear Replacement; Includes: Motor Pinion Gear, Adhesive, & Instructions

1шт.
