Запчасти Case IH AFX8010 (K.40.C.82[01]) - MOTOR, CONCAVE ADJUSTMENT - PRIOR TO PIN HAJ105201 K - Crop Processing

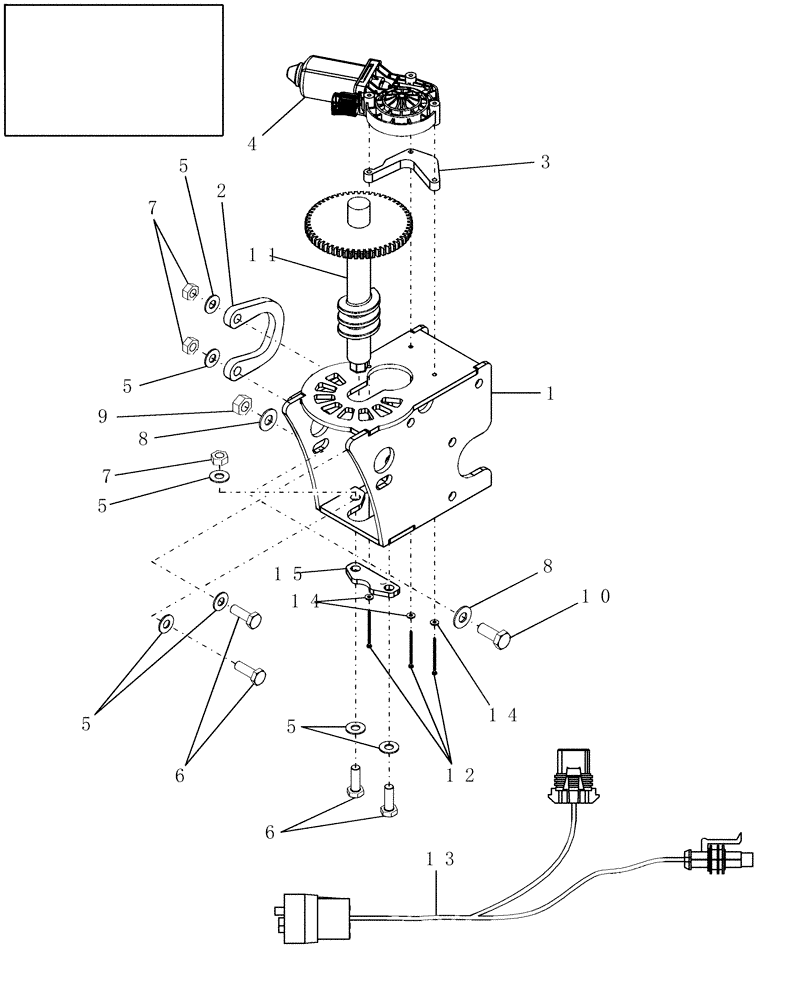

![Схема запчастей Case IH AFX8010 - (K.40.C.82[01]) - MOTOR, CONCAVE ADJUSTMENT - PRIOR TO PIN HAJ105201 K - Crop Processing](https://partsell.ru/storage/images/caseih/1063584.png)
№
Артикул
Название
Примечание
Количество
1
87106417
BRACKET
1шт.
1
87108797
BRACKET
, Years: -29-AUG-03
1шт.
1
87280691
BRACKET
, Start Year: 29-AUG-03
1шт.
2
86997859
BRACKET
1шт.
3
86998410
SPACER
Three Hole Design, Years: -29-AUG-03
1шт.
3
87280688
SUPPORT
Plate, Four Hole Design, Start Year: 29-AUG-03
1шт.
4
86998412
ELECTRIC MOTOR
Gear, Years: -29-AUG-03
1шт.
4
84273916R
REMAN-ELECTRIC MOTOR
Reman for New PN 86998412
1шт.
4
84273916C
CORE-ELECTRIC MOTOR
Return Number
1шт.
4
87280687
ELECTRIC MOTOR
, Start Year: 29-AUG-03
1шт.
4
87280687C
CORE-ELECTRIC MOTOR
Return Number, ELECTRIC MOTOR - for N.A. Only
1шт.
4
84273916R
REMAN-ELECTRIC MOTOR
Reman for New PN 87280687
1шт.
4
84273916C
CORE-ELECTRIC MOTOR
Return Number
1шт.
87342197C
CORE-ELECTRIC MOTOR
Return Number, ELECTRIC MOTOR - for N.A. Only
1шт.
86998412C
CORE-ELECTRIC MOTOR
Return Number, ELECTRIC MOTOR - for N.A. Only
1шт.
6
43140
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
1шт.
7
100016
NUT,M10 x 1.5, Cl 8
1шт.
8
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
2шт.
10
9706687
BOLT,M12 x 1.75 x 30mm, Cl 8.8
1шт.
11
87106420
SHAFT
1шт.
11
87109016
SHAFT
, Years: -29-AUG-03
1шт.
11
87109757
SHAFT
, Start Year: 29-AUG-03
1шт.
12
86999677
SCREW,Pan Cross Recess Phillips, M5.3 x 50.60mm
, Years: -29-AUG-03
3шт.
12
86977790
BOLT,Hex, M6 x 45mm, Cl 8.8
, Start Year: 29-AUG-03
4шт.
13
87106325
WIRE HARNESS
, Years: -29-AUG-03
1шт.
13
87280772
WIRE HARNESS
, Start Year: 29-AUG-03
1шт.
14
86511189
WASHER,0.16" ID x 0.38" OD x 0.05" Thk
3/8", Years: -29-AUG-03
3шт.
14
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
, Start Year: 29-AUG-03
3шт.
15
87106578
BRACKET
1шт.
Выбрано товаров: 32
