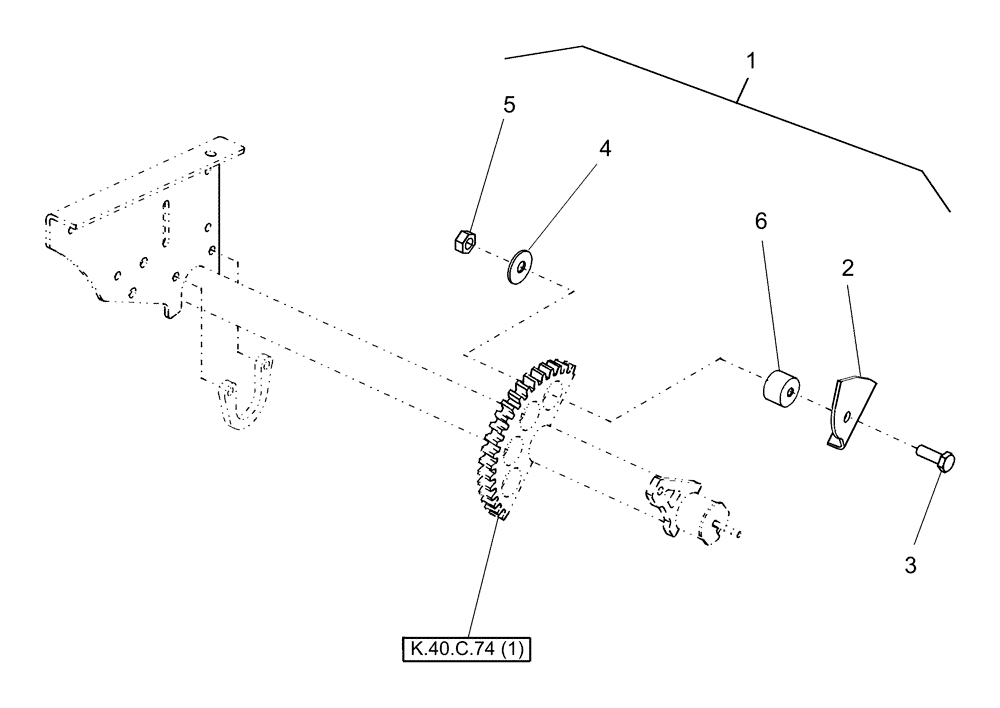

Запчасти Case IH AFX8010 (K.40.C.74[04]) - CONCAVE/GRAINPAN CLEARANCE KIT K - Crop Processing

1

87362670

SERVICE KIT

Concave / Grainpan Clearance

1шт.

2

87361953

PLATE

1шт.

3

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

4

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

1шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

6

87361950

SPACER

1шт.
