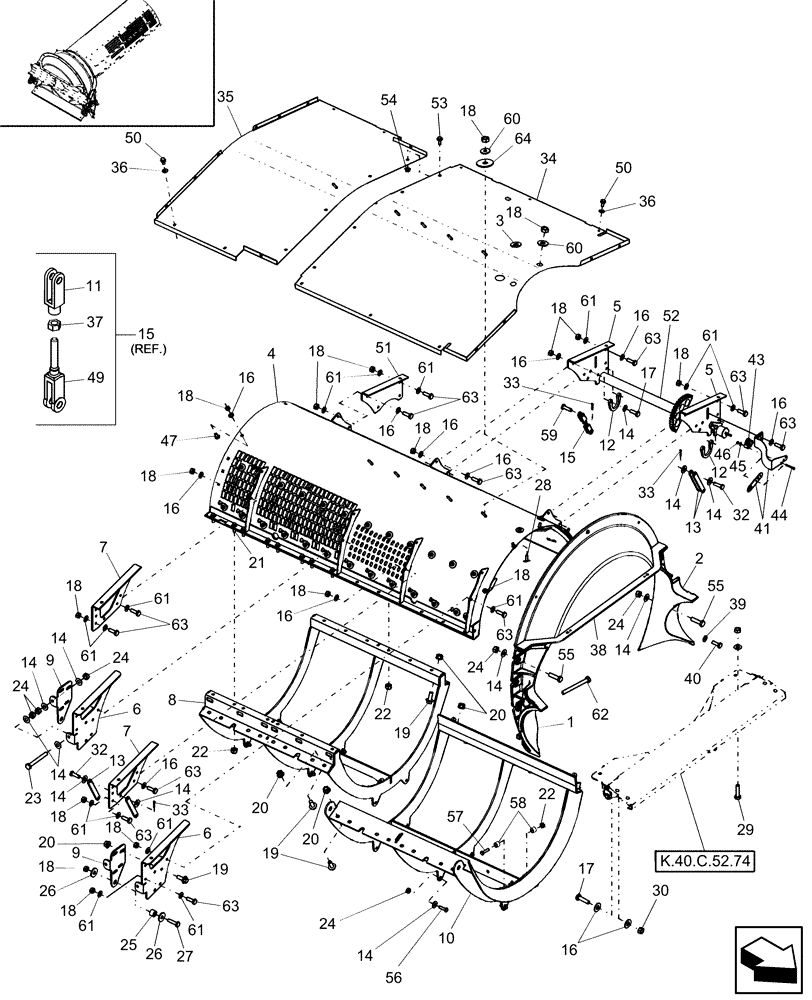

Запчасти Case IH AFX8010 (K.40.C.74[01]) - FRAME, SEPARATOR K - Crop Processing

1

87281152

DEFLECTOR

RH

1шт.

1

87324947

DEFLECTOR

RH - Tungsten Carbide

1шт.

2

87281151

DEFLECTOR

LH

1шт.

2

87324946

DEFLECTOR

LH - Tungsten Carbide

1шт.

3

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

11шт.

4

86980999

CAGE

For Component Breakdown, See Fig. K.40.C.52[1]

1шт.

Prior To MY06

1шт.

4

87393080

CAGE

Std Wear; For Component Breakdown, See Fig. K.40.C.52[2]

1шт.

From MY06

1шт.

4

87391297

KIT

Extended Wear; For Component Breakdown, See Fig. K.40.C.52[2]

1шт.

From MY06

1шт.

5

87281789

ANGLE

LH

2шт.

6

87281793

ANGLE

RH

2шт.

7

86997520

ANGLE

RH

2шт.

7

87281795

ANGLE

RH, Replaces 86997520

2шт.

8

87108873

FRAME

Threshing, Rear

1шт.

8

87325989

FRAME

Threshing, Rear, Replaces P/N 87108873

1шт.

For Extended Wear

1шт.

9

87281797

BAR

Plate

2шт.

10

87108872

FRAME

Lower

1шт.

10

87323531

FRAME

Lower, Start Year: 01-JAN-06

1шт.

10

87391299

FRAME

Lower

1шт.

11

86633519

CLEVIS

2шт.

12

86997859

BRACKET

LH

2шт.

13

86998439

BAR

4шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

36шт.

15

86980964

CONNECTING LINK

Includes Ref. 11, 37 & 49

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

33шт.

17

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

18

100016

NUT,M10 x 1.5, Cl 8

1шт.

19

274255

BOLT,Hex Serr Flg, M12 x 30mm

24шт.

20

43436

FLANGE NUT,M12

30шт.

21

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

14шт.

22

100038

NUT,M12 x 1.75, Cl 8

39шт.

23

9837937

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

24

9706685

NUT,M12 x 1.75, Cl 8

22шт.

25

86998150

SPACER,11.11mm ID x 22.23mm OD x 16mm L

RH

2шт.

26

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.

27

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

28

87106338

BOLT

1шт.

29

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

30

9706690

NUT,M8 x 1.25, Cl 8

4шт.

31

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

32

390040

COTTER PIN,10mm OD x 39mm L

4шт.

32

9507095

CLEVIS PIN,10mm OD x 40mm L

4шт.

33

130003

COTTER PIN,3mm OD x 30mm OAL

4шт.

34

87281760

ROOF

Front - No Center Slots

1шт.

34

87341413

ROOF

Front - With (4) Center Slots

1шт.

35

87281758

ROOF

Rear - No Center Slot

1шт.

35

87341565

ROOF

Rear - With (1) Center Slot

1шт.

36

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

22шт.

37

9706685

NUT,M12 x 1.75, Cl 8

2шт.

38

87106704

DOOR

1шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

40

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

41

86975991

BRACKET

Potentiometer

1шт.

41

87282743

SUPPORT

Plate, Potentiometer, 186mm Long, Flat Style, See Figure K.25.K for Mounting Hardware

1шт.

43

86998035

POTENTIOMETER

Concave Position

1шт.

44

86585707

SCREW,Phillips Drive, Pan HD, M4 x 35mm, Cl 4.8

2шт.

45

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

46

100012

NUT,M4 x 0.7, Cl 8

2шт.

47

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

49

87000108

SHAFT

1шт.

50

412093

SELF-TAP SCREW

M6 x 1 x 12

22шт.

51

87281791

ANGLE

LH

1шт.

52

87361505

TORSION BAR

Torsion - Was 87108848

1шт.

53

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

54

9706755

NUT,M6, Cl 8

6шт.

55

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

6шт.

56

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

57

9706693

BOLT,M12 x 60mm, Cl 8.8

8шт.

57

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

58

86998116

PIN,25.4mm OD x 27mm L

BALL PIN

16шт.

59

9507095

CLEVIS PIN,10mm OD x 40mm L

2шт.

60

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

1шт.

61

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

47шт.

62

382181

BOLT,Hex, M12 x 1.75 x 190mm, Cl 8.8

2шт.

63

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

75шт.

64

87341291

COVER

5шт.

Enhanced Cleaning

1шт.
