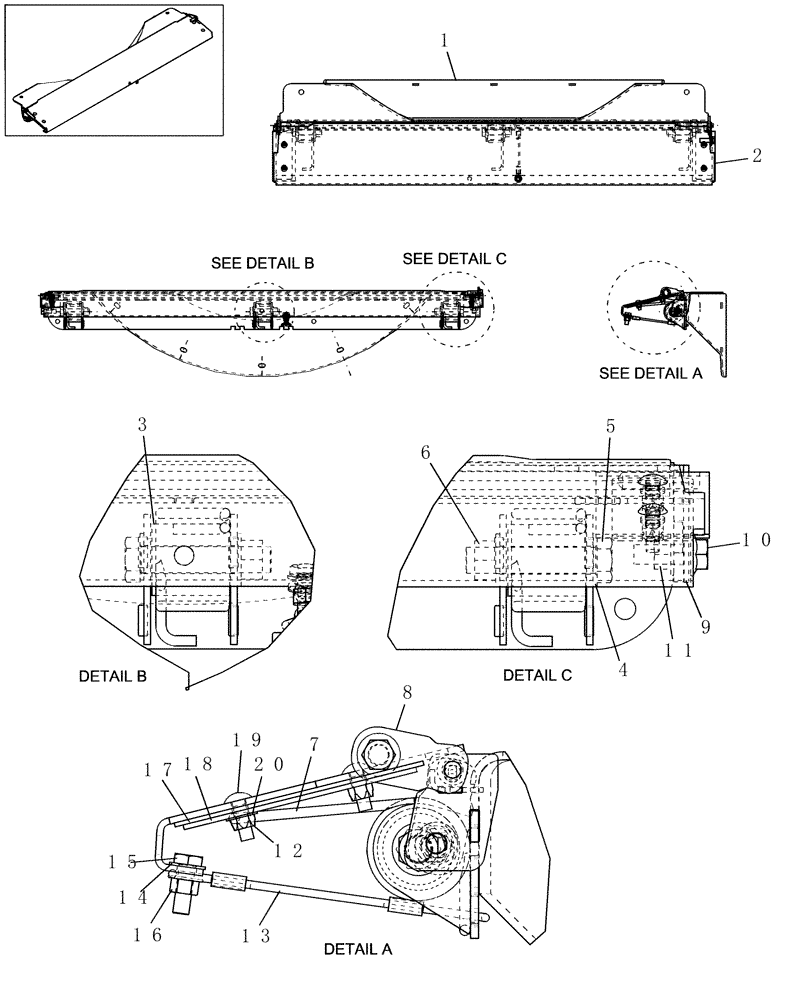

Запчасти Case IH AFX8010 (K.40.C.52.74) - FEEDPLATE K - Crop Processing

1

87281106

PLATE

, Start Serial: HAJ105001

1шт.

1

87470921

PLATE ASSY.

Plate

1шт.

Service Only; Component Of 87471397 High Wear Campaign Kit - See Fig. K.62.C

1шт.

2

87280905

PLATE

1шт.

Prior To 8/06

1шт.

2

87522176

PLATE

1шт.

From 8/06

1шт.

2

87568249

PLATE ASSY.

1шт.

Service Only; Component Of 87471397 High Wear Campaign Kit - See Fig. K.62.C

1шт.

3

86997911

BUSHING,17mm ID x 44mm OD x 48mm L

Spring

3шт.

4

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

6шт.

5

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

3шт.

6

825-1416

NUT,M16, Cl 8

3шт.

7

86997885

SPRING,Return, 50.8mm ID x 45.7mm W

3шт.

8

87108417

PIN

2шт.

8

87280909

PIN,Securing, 10mm OD x 41mm L

2шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

10

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

11

9706685

NUT,M12 x 1.75, Cl 8

2шт.

11

43436

FLANGE NUT,M12

, Start Serial: HAJ105001

2шт.

12

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

13

87106795

CABLE,Retaining, 190mm L

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

, Start Serial: HAJ105001

1шт.

16

43435

FLANGE NUT,Hex, M10 x 1.5

2шт.

16

100016

NUT,M10 x 1.5, Cl 8

1шт.

17

87106849

SEAL

2шт.

17

87280910

SEAL,70mm W x 166mm L

2шт.

18

87106848

PLATE,148mm L x 50mm W x 3mm Thk

4шт.

19

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

19

412495

HEX SOC SCREW,Flat Hd, M8 x 20mm, Cl 8.8

4шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.
