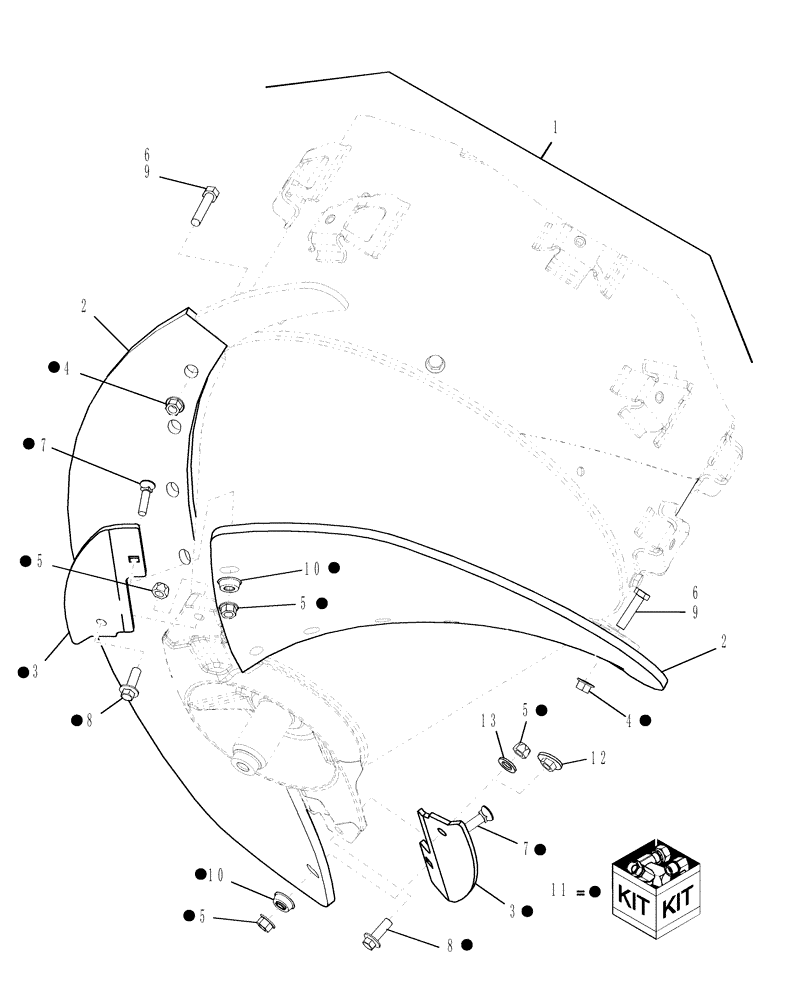

Запчасти Case IH AFX8010 (K.40.C.52.52[4]) - KIT, ROTOR IMPELLER K - Crop Processing

1

87376706

SERVICE KIT

Rotor Impeller, Includes Ref. 2, 4, 6, 9 & 11

1шт.

2

NSS

NOT SOLD SEPARAT

Flighting, Auger

2шт.

3

87376702

KIT

Blade

2шт.

4

86512380

FLANGE NUT,M16

16шт.

5

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

6

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

2шт.

7

87036813

PLOW BOLT,M12 x 35mm, Cl 10.9

CL 10.9, M12 x 1.75 x 35

1шт.

7

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

CL 10.9, M12 x 40

1шт.

8

86512259

BOLT,Hex Serr, M12 x 1.75 x 35mm

1шт.

8

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

1шт.

9

87281818

BOLT,M16 x 2.0 x 65mm, Cl 10.9

Special Head, CL 10.9, M16 x 2 x 65

14шт.

10

87315598

SHIELD

1шт.

11

87376702

KIT

Wear Blade, Includes Ref. 3, 5, 7, 8, 10, 12 & 13

1шт.

12

87376199

FLANGE NUT

Flange, Serial Range: -HAJ106400

2шт.

13

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

, Start Serial: HAJ106400

2шт.
