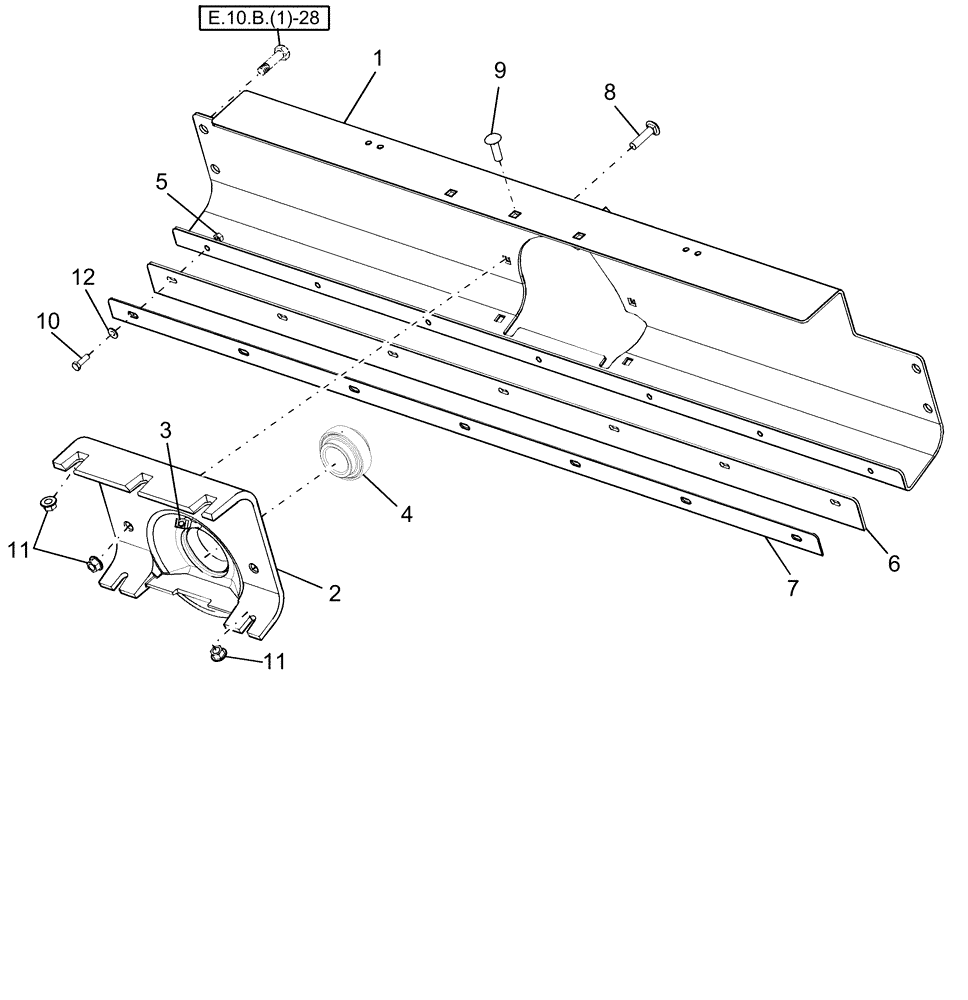

Запчасти Case IH AFX8010 (K.40.C.52.52[3]) - BEARING PLATE K - Crop Processing

1

87106336

CHANNEL

1шт.

1

87758303

CHANNEL

Channel

1шт.

Service Only; Component Of 87471397 High Wear Campaign Kit - See Fig. K.62.C

1шт.

2

87324051

BEARING ASSY

Bearing and Housing Assy, contains 3 and 4. Bearing is 87324171, select fit, with 2 grease holes.

1шт.

2

86980887

BEARING HOUSING

Component of 87001299 housing assy, uses bearing 86980885

1шт.

3

87020437

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1шт.

4

87324171

BALL BEARING,50.8mm ID x 100mm OD x 25mm W

Component of 87324051, Select fit, has 2 grease holes.

1шт.

4

86980885

BEARING,50.8 mm ID x 90.602 mm OD x 24 mm

Used with Housing 86980887 Only, Has only 1 grease hole.

1шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

6

87283403

SEAL,60mm W x 1508mm L

Replaces 86981034

1шт.

7

86998407

SEAL PROTECTION

1шт.

8

334682

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

2шт.

9

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

5шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

11

43436

FLANGE NUT,M12

7шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.
