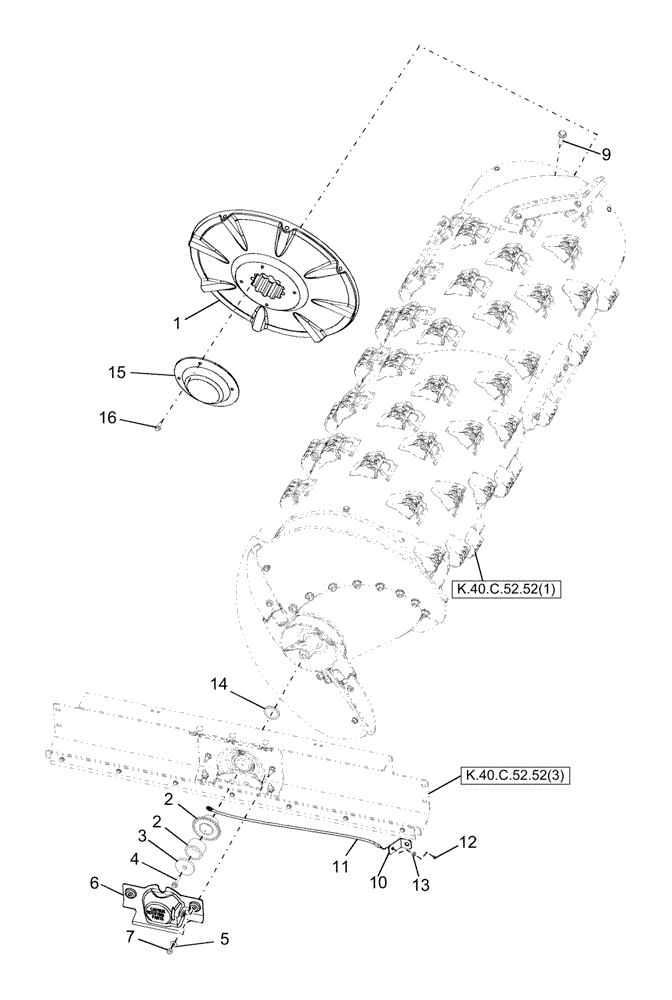

Запчасти Case IH AFX8010 (K.40.C.52.52[2]) - BEARING SUPPORT, ROTOR K - Crop Processing

1

86981019

BULKHEAD

Rotor

1шт.

1

87358533

BULKHEAD

Rotor

1шт.

2

86996576

GEAR

, Serial Range: -HAJ105200

1шт.

2

87281633

SPACER,50.88mm ID x 66.68mm OD x 44mm L

, Start Serial: HAJ105201

1шт.

3

86998693

WASHER,17.8mm ID x 76.2mm OD x 9.5mm Thk

1шт.

4

86981489

BOLT,Hex, M16 x 70mm, Cl 10.9

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

6

86996599

COVER

1шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

87105682

SENSOR

RPM

1шт.

9

86981678

BOLT,Hex, M12 x 50mm, Cl 10.9

8шт.

10

87107260

SUPPORT

1шт.

11

87107259

HOSE,3.02mm ID x 737mm L

Rotor Bearing Lube

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

134814

NUT,11/16"

1шт.

14

87284474

SHIM,51.18mm ID x 59.7mm OD x 1mm Thk

1шт.

15

87355404

COVER

1шт.

16

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

4шт.
