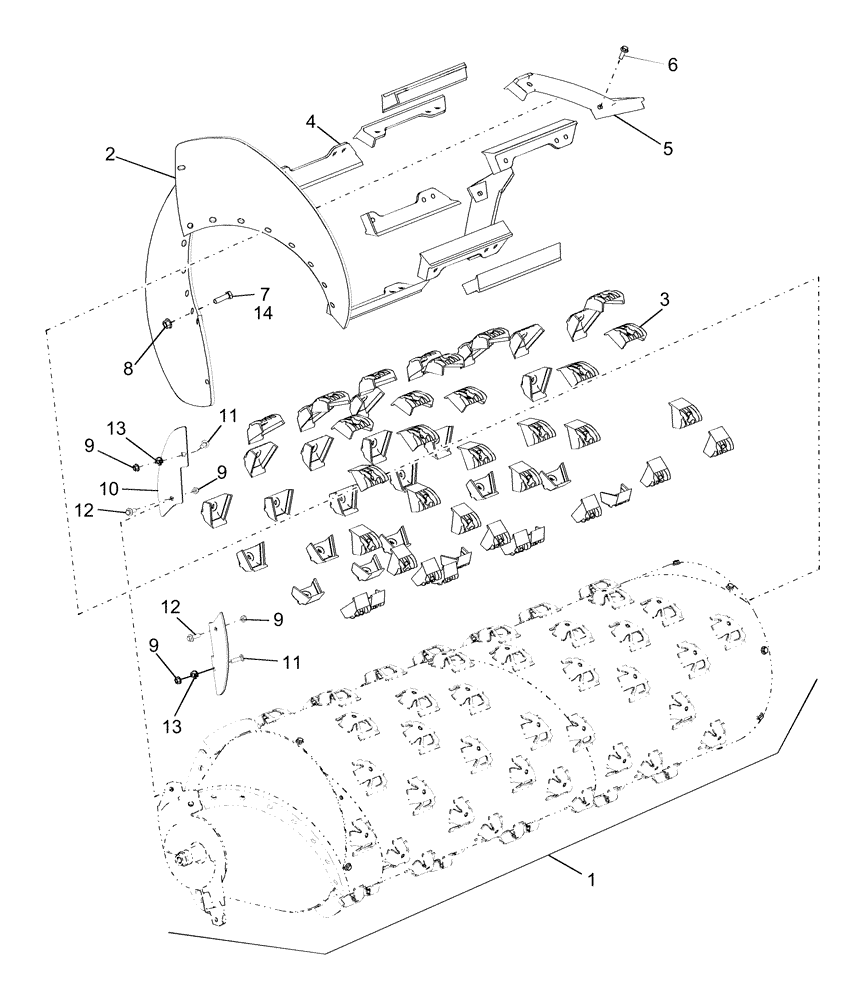

Запчасти Case IH AFX8010 (K.40.C.52.52[1]) - ROTORS K - Crop Processing

1

87376665

ROTOR ASSY.

Special

1шт.

1

87376667

ROTOR ASSY.

Rice

1шт.

1

87376443

ROTOR ASSY.

Small Grain

1шт.

2

87108907

AUGER FLIGHT

2шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

3

278821A2

RASP BAR

Chrome, without Spike - Special

64шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

3

87105275

RASP BAR

With Spike - Rice

72шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

3

1309336C2

RASP BAR

Without Rear Spike - Small Grain

64шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

4

86992047

BAR

RFC - Special

4шт.

4

86992047

BAR

RFC - Small Grain

4шт.

5

86992048

BAR

RFC

2шт.

5

1327676C1

BAR

Small Grain, Replaces 86992048

2шт.

6

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

76шт.

7

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

, Years: -06-DEC-03

16шт.

7

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

, Start Year: 06-DEC-03

2шт.

8

86512380

FLANGE NUT,M16

16шт.

9

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

10

87108053

PLATE

Blade, Years: -06-DEC-03

2шт.

Replace in Pairs to Maintain Rotor Balance

1шт.

10

87342923

WEAR PLATE

, Start Year: 06-DEC-03

2шт.

11

87036813

PLOW BOLT,M12 x 35mm, Cl 10.9

Plow, Rd Hd, CL 10.9, M12 x 35

2шт.

12

86512259

BOLT,Hex Serr, M12 x 1.75 x 35mm

2шт.

13

87315598

SHIELD

2шт.

14

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

, Years: -06-DEC-03

2шт.

14

87281818

BOLT,M16 x 2.0 x 65mm, Cl 10.9

Countersunk Special Hd, CL 10.9, M16 x 65, Start Year: 06-DEC-03

14шт.
