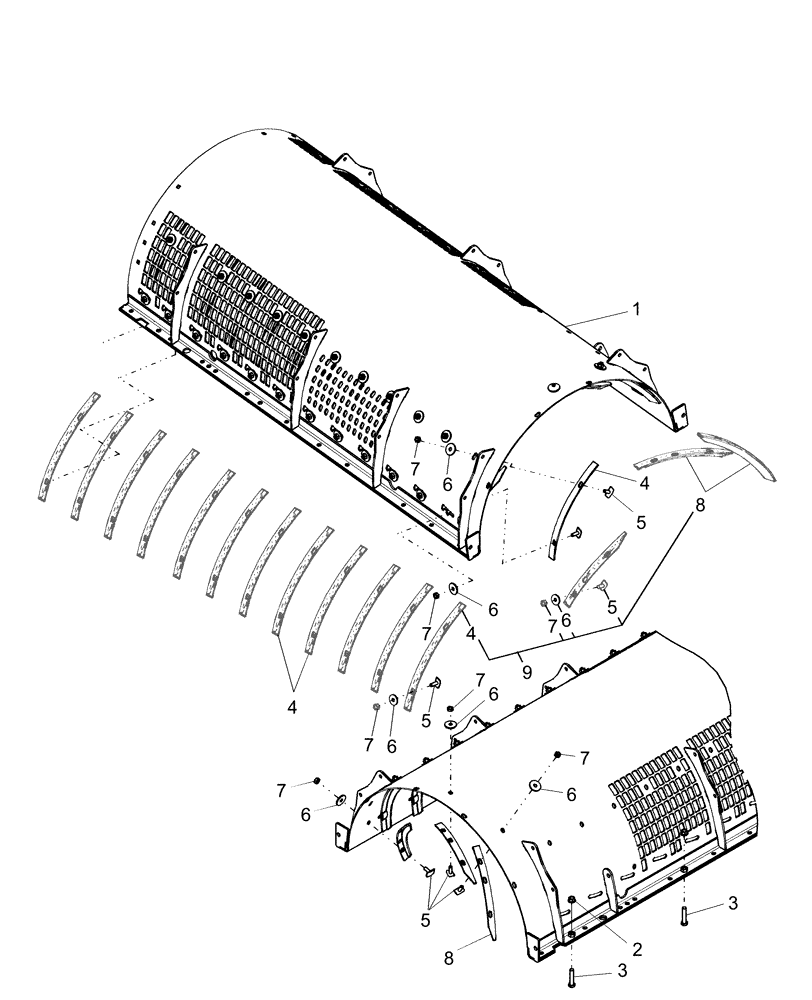

Запчасти Case IH AFX8010 (K.40.C.52[1]) - ROTOR CAGE K - Crop Processing

1

87313365

CAGE

Was 87108062

1шт.

2

43436

FLANGE NUT,M12

2шт.

3

309086

BOLT,Hex, M12 x 60, 8.8, Full Thd

2шт.

4

86981000

ANGLE

12шт.

5

87106338

BOLT

27шт.

6

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

27шт.

7

100016

NUT,M10 x 1.5, Cl 8

27шт.

8

87107892

ANGLE

3шт.

9

84084818

KIT

Cage Vane, Includes: Ref. 4 (12 pcs.), 8 ( 3 pcs.), 5, 6 & 7 (27 pcs.)

1шт.
