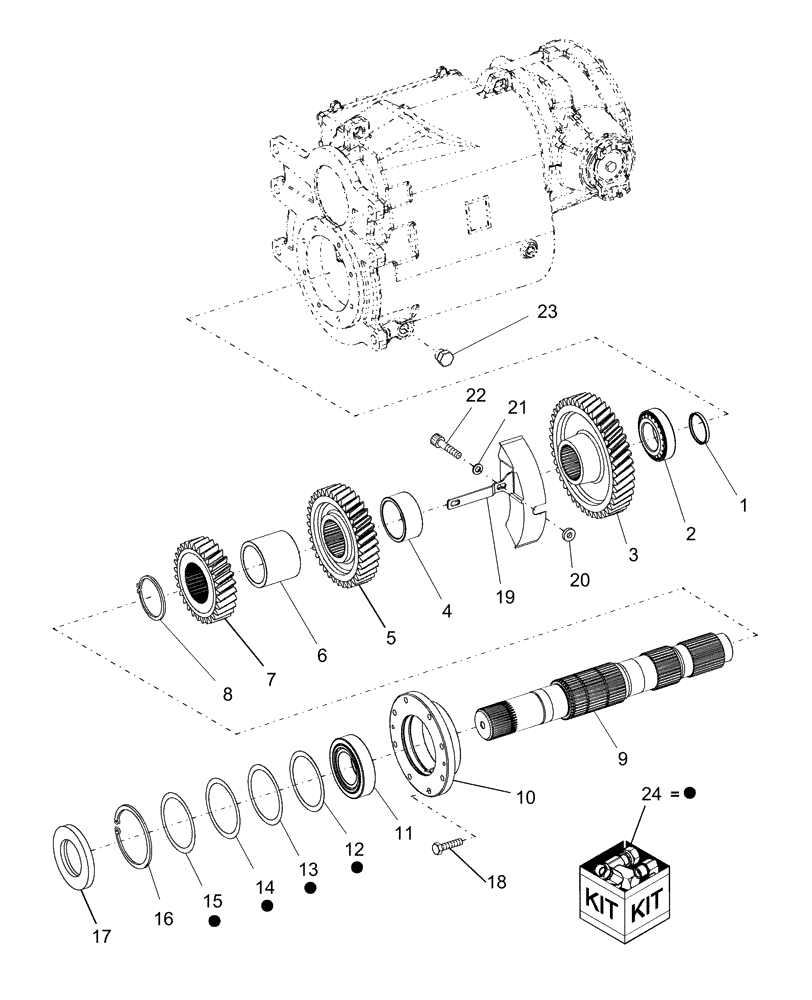

Запчасти Case IH AFX8010 (K.40.C.44[4]) - OUTPUT SHAFT & GEARS, ROTOR GEARBOX K - Crop Processing

1

87280587

PLUG

Cover

1шт.

2

87280588

BEARING ASSY,55mm ID x 100mm OD x 26.75mm W

1шт.

3

87280589

GEAR

Driven, 1st, 43T

1шт.

4

87280590

SPACER

1шт.

5

87280591

GEAR

Driven

1шт.

6

87280592

SPACER

1шт.

7

87280593

GEAR

Driven

1шт.

7

87684678

GEAR

Driven Gear, 3rd, 29T For Gearbox 87696391

1шт.

8

800-5180

SNAP RING,M80 x 3mm Thk, External

1шт.

9

87280595

SHAFT

Output

1шт.

10

87280597

PLATE ASSY.

Plate, Bearing

1шт.

11

87281035

BEARING ASSY,65mm ID x 120mm OD x 32.75mm W

Roller

1шт.

12

87033543

SHIM,100mm ID x 120mm OD x 0.5mm Thk

0.50

1шт.

13

87033542

SHIM,100mm ID x 120mm OD x 0.3mm Thk

0.30

1шт.

14

87033541

SHIM,100mm ID x 120mm OD x 0.15mm Thk

0.15

1шт.

15

87033538

SHIM,100mm ID x 120mm OD x 0.1mm Thk

0.10

1шт.

16

800-21120

SNAP RING,M120, Int

1шт.

17

87020821

OIL SEAL,65mm ID x 120mm OD x 10mm Thk

1шт.

18

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

19

87280599

WRAPPER

Gear

1шт.

20

87281116

SPACER

1шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

22

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

2шт.

23

87108781

PLUG

Plug, Magnetic, M22

1шт.

24

87281006

SHIM KIT

1шт.
