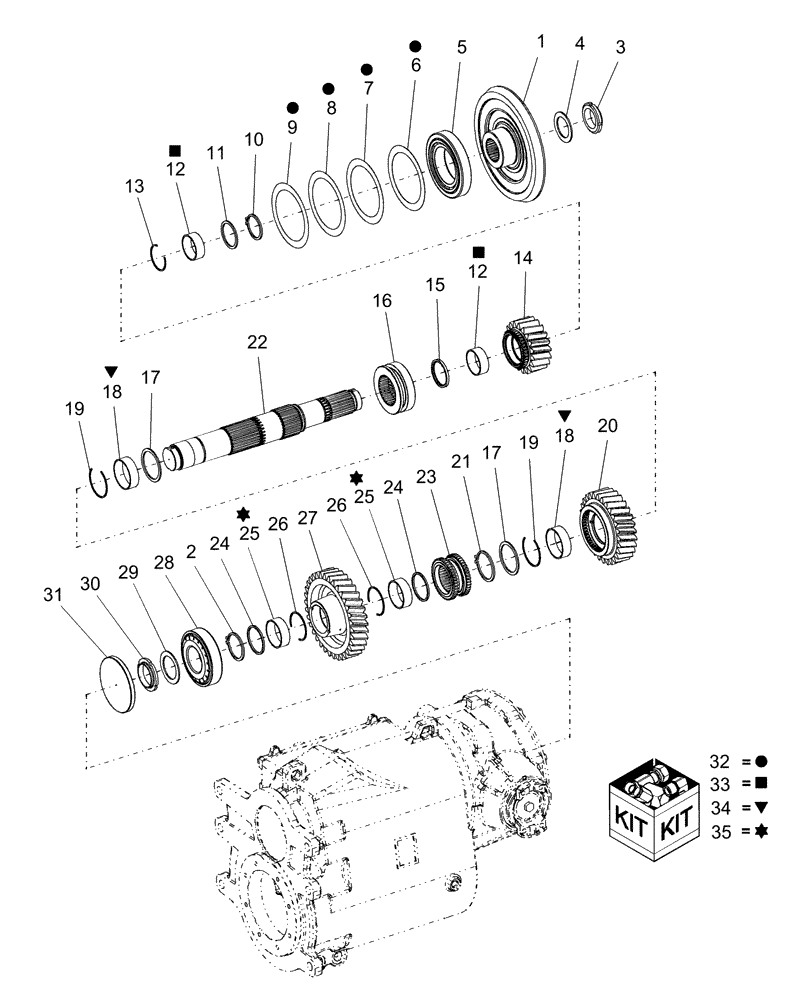

Запчасти Case IH AFX8010 (K.40.C.44[3]) - TRANSFER SHAFT & GEARS, ROTOR GEARBOX K - Crop Processing

1

87280570

GEAR SET

Bevel, For Gearbox 87108124 and 87282405

1шт.

1

87688722

GEAR SET,Bevel, 41 Tooth/18 Tooth

Bevel, For Gearbox 87696391

1шт.

2

800-5155

SNAP RING,M55 x 3mm Thk, External

, Years: -01-DEC-03, Serial Range: -BSN

2шт.

3

87031062

BEARING LOCK NUT,M45 x 1.5

Stake

1шт.

4

87281243

THRUST WASHER

1шт.

5

87280579

BEARING ASSY,80mm ID x 140mm OD x 28.25mm W

1шт.

6

87033548

SHIM,110mm ID x 140mm OD x 0.5mm Thk

0.50

1шт.

7

87033546

SHIM,110mm ID x 140mm OD x 0.3mm Thk

0.30

1шт.

8

87033545

SHIM,110mm ID x 140mm OD x 0.15mm Thk

0.15

1шт.

9

87033544

SHIM,110mm ID x 140mm OD x 0.1mm Thk

SHIM, 0.10

1шт.

10

800-5150

SNAP RING,M50, Ext

1шт.

11

87281242

Washer, Thrust, Years: -06-DEC-03

1шт.

11

87282464

THRUST WASHER

For Gearbox 87282405, Start Year: 01-DEC-03

1шт.

11

87684703

THRUST WASHER

For Gearbox 87696391

1шт.

12

87280990

NEEDLE BEARING,50 mm ID x 55 mm OD x 20 mm

Needle, Roller

2шт.

12

87280994

NEEDLE BEARING,55mm ID x 60mm OD x 20mm Thk

Needle Roller, 55x60x20, For Gearbox 87696391

4шт.

13

87280997

SNAP RING

1шт.

13

87280998

SNAP RING,59.9mm ID x 1.5mm Thk, Internal

Internal Retaining Ring, 60x1.5, For Gearbox 87696391

4шт.

14

87280580

GEAR

Driver, 1st 19T

1шт.

14

87684701

GEAR

Driver, 1st 19T, Gearbox 87696391

1шт.

15

87280958

THRUST WASHER

1шт.

15

87684704

THRUST WASHER,55.2mm ID x 64.8mm OD x 5mm Thk

For Gearbox 87696391, 55.2 x 64.8 x 5

1шт.

16

87280581

COLLAR

Shift, 1st Gear, Years: -06-DEC-03, Serial Range: -BSN

1шт.

17

87281240

Washer, Thrust, Years: -06-DEC-03

2шт.

17

87282385

THRUST WASHER

, Start Year: 06-DEC-03, Start Serial: ASN

2шт.

18

87280992

NEEDLE BEARING,60 mm ID x 65 mm OD x 20 mm

Needle, Roller

2шт.

19

87280999

SNAP RING,60mm ID x 65mm OD x 20mm Thk

2шт.

20

87280582

GEAR

Driver, Years: -06-DEC-03

1шт.

20

87282386

GEAR

Driver, 2nd, 28T, Start Year: 06-DEC-03, Start Serial: ASN

1шт.

21

800-5160

SNAP RING,M60, Ext

1шт.

22

87280596

SHAFT

Intermediate, Years: -06-DEC-03

1шт.

22

87282387

SHAFT

Intermediate, Start Year: 06-DEC-03, Start Serial: ASN

1шт.

22

87684680

SHAFT

Intermediate, For Gearbox 87696391, Start Year: 01-MAR-09

1шт.

23

87280583

COLLAR,28T Internal / 40T External

Shift, 2nd & 3rd Gear

1шт.

24

87281241

THRUST WASHER

, Years: -06-DEC-03

2шт.

24

87282496

THRUST WASHER

, Start Year: 06-DEC-03, Start Serial: ASN

2шт.

25

87280994

NEEDLE BEARING,55mm ID x 60mm OD x 20mm Thk

Needle, Roller

2шт.

26

87280998

SNAP RING,59.9mm ID x 1.5mm Thk, Internal

Internal

2шт.

27

87280584

GEAR

Driver, Years: -06-DEC-03

1шт.

27

87282497

GEAR

Driven, 3rd, 34T, Start Year: 06-DEC-03, Start Serial: ASN

1шт.

27

87684677

GEAR

3rd, 34T, for Gearbox 87696391

1шт.

28

86509784

BEARING ASSY,55mm ID x 120mm OD x 31.5mm W

1шт.

29

87031063

THRUST WASHER

1шт.

30

87020897

BEARING LOCK NUT,M50 x 1.5

Stake

1шт.

31

375413A1

CAP

1шт.

32

87743037

SHIM KIT

Kit, Shim

1шт.

33

87282439

NEEDLE BEARING,50 mm ID x 55 mm OD x 20 mm

Needle Bearing

1шт.

34

87282440

KIT,60 mm ID x 65 mm OD x 20 mm

Needle Bearing

1шт.

35

87282441

KIT,55 mm ID x 60 mm OD x 20 mm

Needle Bearing

1шт.
