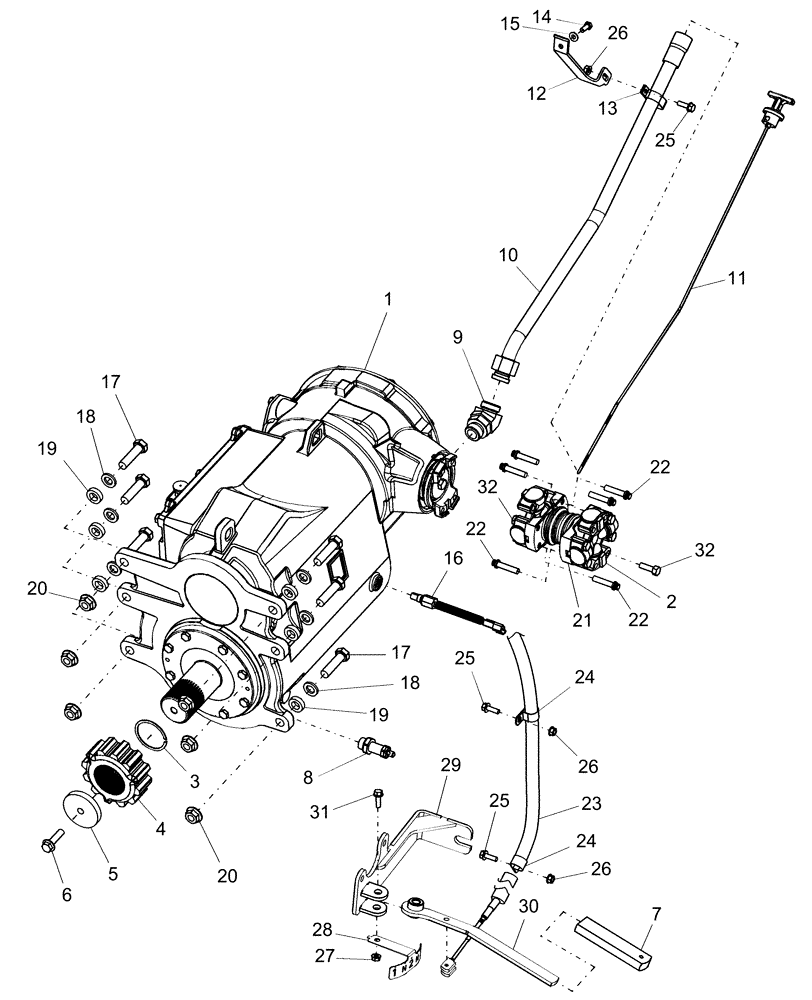

Запчасти Case IH AFX8010 (K.40.C.40) - GEARBOX, ROTOR - 3 SPEED K - Crop Processing

1

87108125

GEARBOX

Rotor, Three Speed

1шт.

1

47411097R

REMAN-GEARBOX

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, Rotor, Three Speed (3/03-9/06), Reman for New PN 87108125

1шт.

1

47411097C

CORE-GEARBOX

Return Number

1шт.

1

87282405

GEARBOX

Rotor, Three Speed - Replaces 87108125

1шт.

1

47411097R

REMAN-GEARBOX

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, Rotor, Three Speed (3/03-9/06), Reman for New PN 87282405

1шт.

1

47411097C

CORE-GEARBOX

Return Number

1шт.

1

87696391

GEARBOX ASSY

Rotor, Three Speed - Replaced 87282405, Start Year: 01-MAR-09

1шт.

1

47411097R

REMAN-GEARBOX

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, Rotor, Three Speed (3/03-9/06), Reman for New PN 87696391

1шт.

1

47411097C

CORE-GEARBOX

Return Number

1шт.

2

258854A2

U-JOINT SPIDER

2шт.

3

87016255

SNAP RING,#250, 2.356, Ext

1шт.

4

86980985

GEAR,39T Internal / 12T External

Center Rotor, Inner

1шт.

5

87000091

WASHER,13mm ID x 77mm OD x 12mm Thk

1шт.

6

87018388

BOLT,Hvy Hex, M12 x 45mm, Cl 10.9

1шт.

7

357545

HANDLE GRIP

1шт.

8

87485712

DRAINCOCK/TAP SUPPLY

Draincock

1шт.

9

86639054

45 ELBOW,45 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

1шт.

10

87553424

TUBE,1" OD

Rotor Gearbox Dipstick

1шт.

11

84153776

DIPSTICK

Dipstick

1шт.

12

87106209

BRACKET

1шт.

13

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

16

87105603

SENSOR

Rotor RPM

1шт.

17

87017895

BOLT,M16 x 2.0 x 70.18mm, Cl 10.9

6шт.

18

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

19

87106105

SPACER

6шт.

20

86981464

FLANGE NUT,M16 x 2.0, Cl 10

6шт.

21

87109129

DRIVE SHAFT

Includes Ref. 2 & 32

1шт.

22

87017891

12 PT SCREW,M10 x 1.5 x 55mm, Cl 12.9

8шт.

23

86998008

CABLE,2900mm L

1шт.

24

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

25

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

26

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

27

412126

NUT,M12 x 1.75

1шт.

28

87106667

INDICATOR

Gear

1шт.

29

87107830

BRACKET

Shift Cable

1шт.

30

87107827

LEVER

Shift

1шт.

31

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

32

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.
