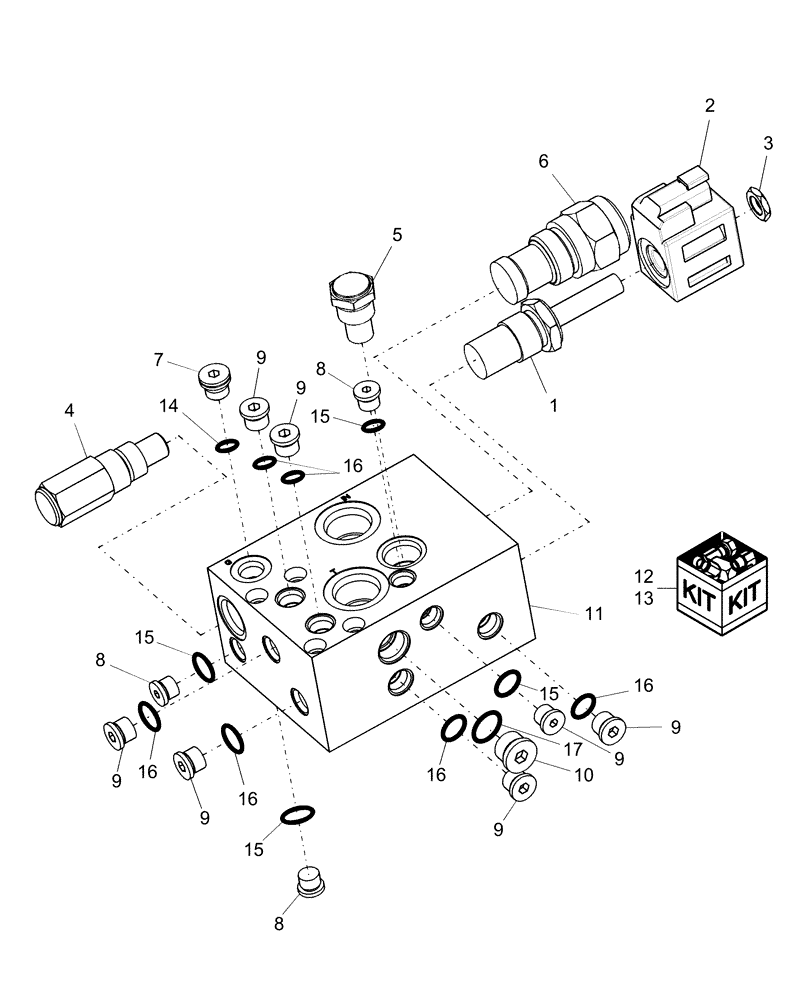

Запчасти Case IH AFX8010 (A.12.A.20[3]) - VALVE, HYDRAULIC REVERSER A - Distribution Systems

87284673

VALVE

Includes Ref. 1 thru 11, Was 87280753

1шт.

1

86514793

SOLENOID VALVE

Cartridge

1шт.

2

87352779

SOLENOID

Was 86837739

1шт.

3

195683A1

JAM NUT,1/2"-20

1шт.

4

87449364

CARTRIDGE

Relief

1шт.

5

86511474

CHECK VALVE

1шт.

6

87449365

CARTRIDGE

Flow Regulator

1шт.

7

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

8

87035062

PLUG,Hex, 1/2"-20 ORB

Tube OD = 5/16"

4шт.

9

9625178

PLUG,9/16" - 18 ORB

Tube OD = 3/8"

6шт.

10

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Tube OD = 1/2"

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

12

86514794

SEAL KIT

For Ref. 1

1шт.

13

86509022

SEAL KIT

For Ref. 5

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

4шт.

16

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

6шт.

17

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
