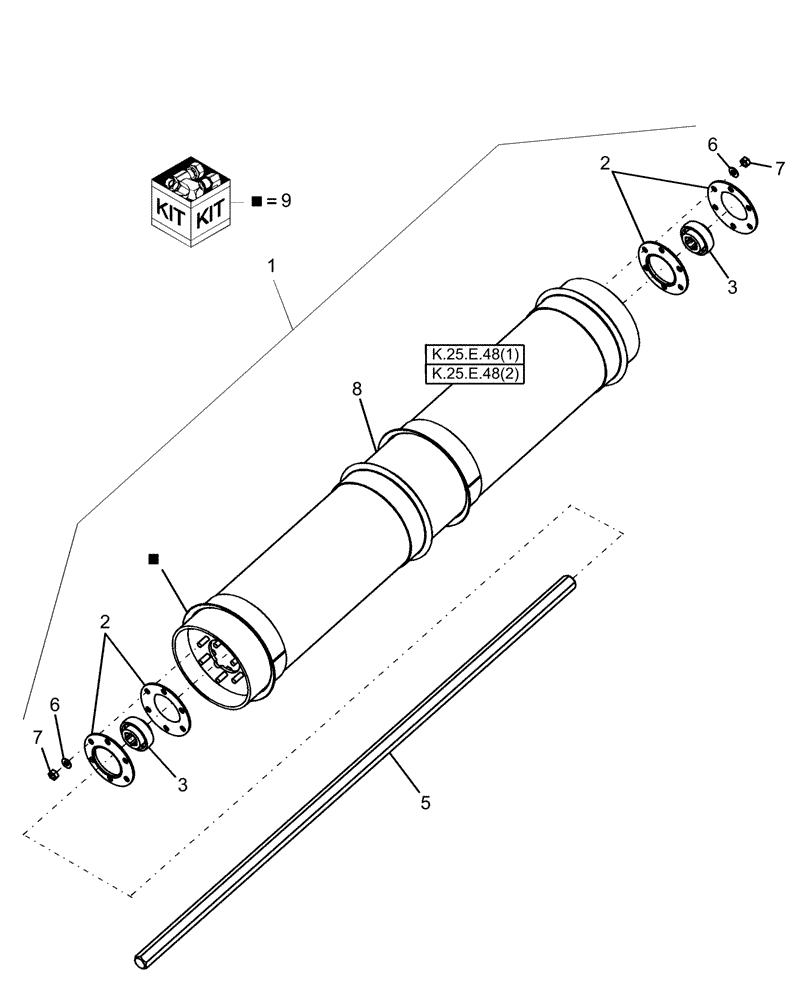

Запчасти Case IH AFX8010 (K.25.E.57) - FEEDER IDLER ROLLER K - Crop Processing

1

86981181

ROLL

Front Feed, Includes: Ref. 2 - 8

1шт.

2

87107282

FLANGE,Bearing

4шт.

3

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

2шт.

5

86995658

SHAFT

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

7

100016

NUT,M10 x 1.5, Cl 8

12шт.

8

87529331

ROLL

1шт.

9

87635125

SERVICE KIT

Chain Guide; Includes: Rings (4) & Instructions

1шт.

Welding Required

1шт.
