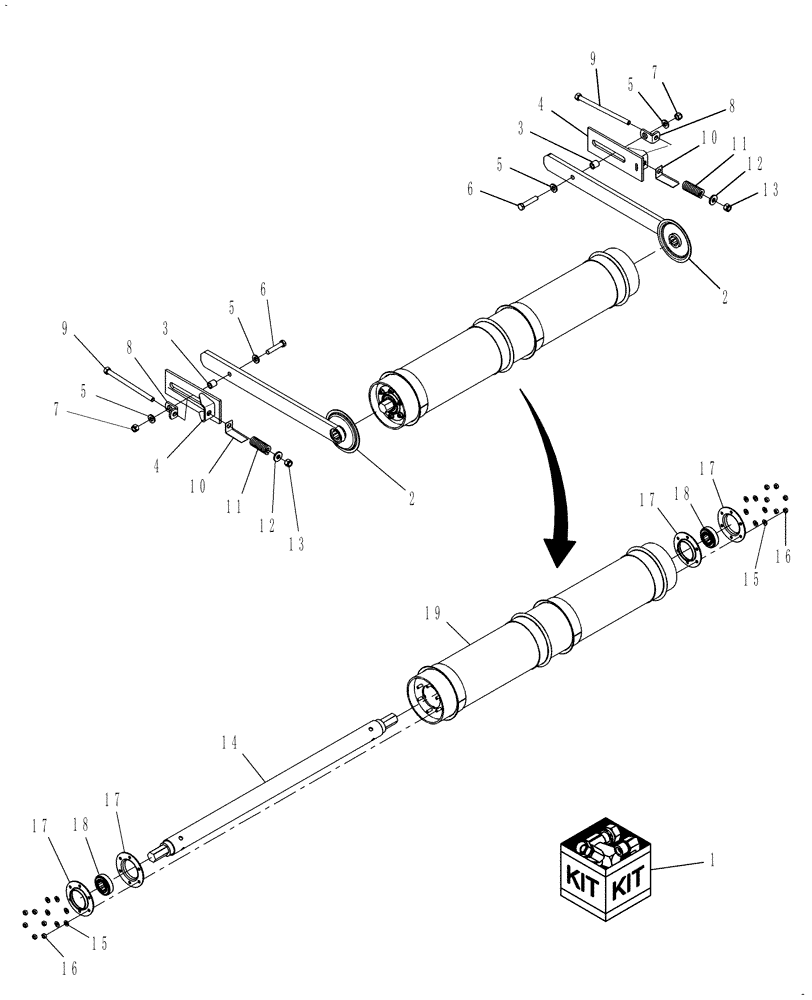

Запчасти Case IH AFX8010 (K.25.E.48[11]) - KIT, FRONT FEEDER DRUM SPRING TENSION K - Crop Processing

1

84182198

DIA KIT, HARVESTER

Front Drum Spring Tension; Includes: Ref.s 2 Thru 19

1шт.

2

87660200

ARM ASSY.

2шт.

3

87021332

SPACER,17mm ID x 25mm OD x 27mm L

2шт.

4

87753060

PLATE ASSY.

Plate

2шт.

5

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

6

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

7

86512555

NUT,M16 x 2, Cl 10

2шт.

8

84163072

BRACKET

2шт.

9

84155550

THREADED ROD

2шт.

10

84163120

BRACKET

2шт.

11

693887

SPRING

Spring, Compression

2шт.

12

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

13

412066

NUT,M16 x 2.0, Cl 8

2шт.

14

87646024

SHAFT

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

16

100016

NUT,M10 x 1.5, Cl 8

12шт.

17

87660204

FLANGE

4шт.

18

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

2шт.

19

87660197

TUBE,1234 mm L

Front Feeder Roll

1шт.

20

84157715

TUBE

2шт.
