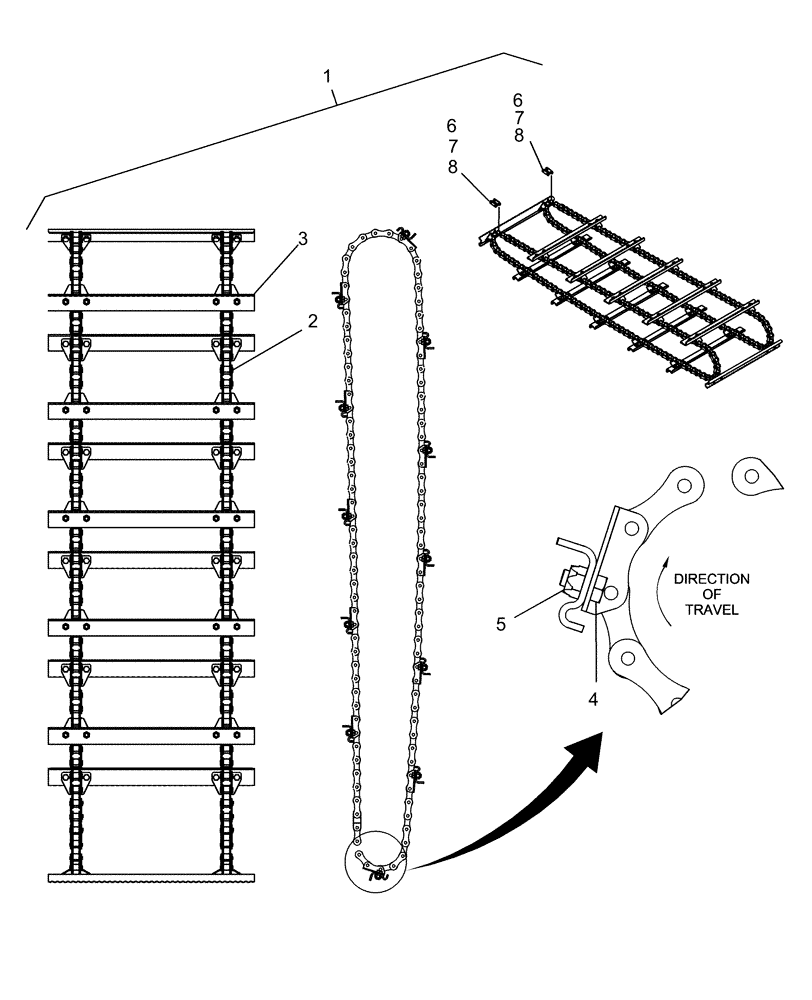

Запчасти Case IH AFX8010 (K.25.E.48[09]) - FEEDER CHAIN AND SLATS, PIN HAJ106756 AND ABOVE K - Crop Processing

1

87397924

CHAIN,Feeder, 111 Links x 41.4mm = 4636.8mm

2шт.

Non Rock Trap

1шт.

1

87397925

CHAIN (AG)

2шт.

With Rock Trap

1шт.

2

87283354

CHAIN,A557, 111 Links x 41.4mm = 4594.29mm

4шт.

Non Rock Trap

1шт.

2

87283355

CHAIN,A557, 98 Links x 41.4mm = 4057.2mm

4шт.

With Rock Trap

1шт.

3

87395271

SLAT

14шт.

Non Rock Trap

1шт.

3

87395271

SLAT

12шт.

With Rock Trap

1шт.

4

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

56шт.

Non Rock Trap

1шт.

4

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

48шт.

With Rock Trap

1шт.

5

86512554

NUT,M10 x 1.5, Cl 10

56шт.

Non Rock Trap

1шт.

5

86512554

NUT,M10 x 1.5, Cl 10

48шт.

With Rock Trap

1шт.

6

87283349

LINK,41.4mm Pitch

1шт.

7

87283350

LINK,41.4mm Pitch

Offset

1шт.

8

87283351

LINK,Chain, 41.4mm Pitch

1шт.
