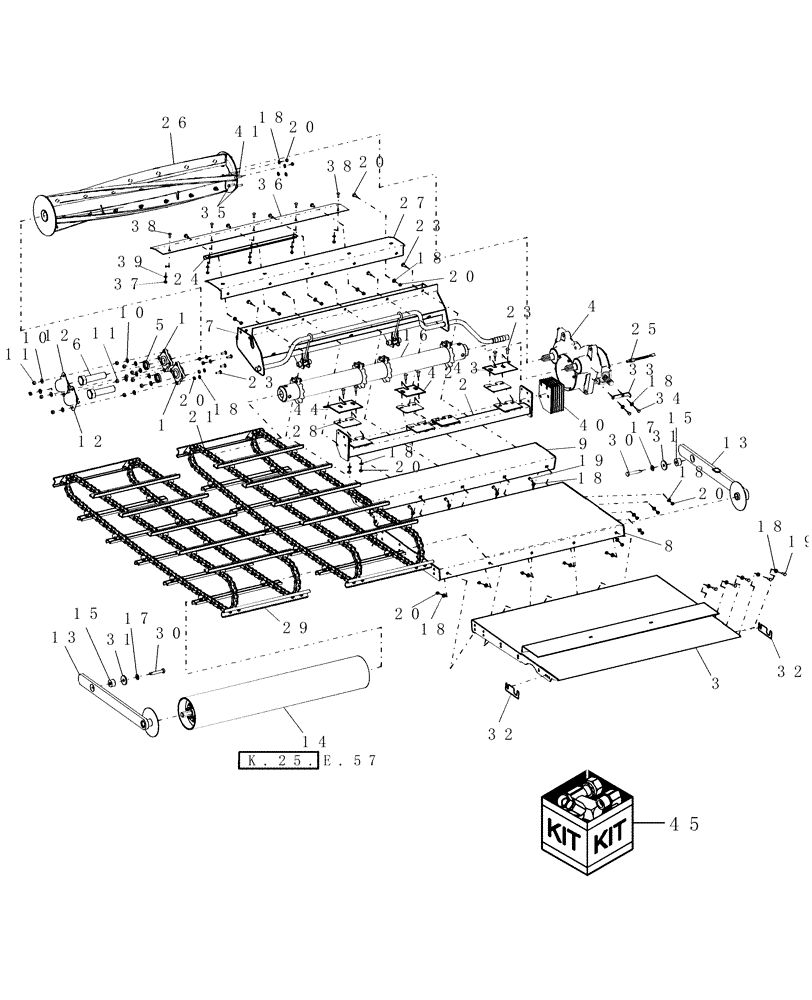

Запчасти Case IH AFX8010 (K.25.E.48[08]) - FEEDER FLOOR AND CHAINS - WITH ROCK TRAP, PIN HAJ106756 AND AFTER K - Crop Processing

1

86995212

BEARING ASSY

2шт.

2

87385031

SUPPORT

1шт.

3

87393958

FLOOR

1шт.

4

87283914

GEARBOX

1шт.

4

87536821R

REMAN-GEARBOX

AFX8010, P.I.N. HAJ106756 & Aft.

1шт.

4

87536821C

CORE-GEARBOX

Return Number

1шт.

4

84273350R

REMAN-GEARBOX

AFX8010, P.I.N. HAJ106756 & Aft.

1шт.

4

84273350C

CORE-GEARBOX

Return Number

1шт.

5

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

2шт.

6

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

2шт.

7

86995139

SUMP

1шт.

8

87282537

FLOOR

1шт.

8

84084681

DIA KIT, HARVESTER

Perforated Floor; Includes: Instructions

1шт.

9

87533212

FLOOR

1шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

11

9706685

NUT,M12 x 1.75, Cl 8

12шт.

12

86996082

COVER

2шт.

13

87282449

ARM

See Also: Ref. 45

2шт.

14

86981181

ROLL

Front, Feed

1шт.

15

87282454

BUSHING,17mm ID x 44.45mm OD x 24mm L

2шт.

16

87283554

SPROCKET

Upper

1шт.

17

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

48шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

10шт.

20

100016

NUT,M10 x 1.5, Cl 8

34шт.

21

87283349

LINK,41.4mm Pitch

4шт.

22

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

5шт.

23

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

17шт.

24

87537644

CHANNEL

1шт.

25

87105603

SENSOR

Feeder Speed

1шт.

26

87284912

BEATER,Assembly

Stone Trap

1шт.

27

87537638

FLOOR

1шт.

28

87546900

SHIM

4шт.

29

87397925

CHAIN (AG)

2шт.

30

87283073

BOLT

2шт.

31

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

2шт.

32

87537643

SHIM,50mm OD x 1.32mm Thk

8шт.

33

87044119

BRACKET

1шт.

34

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

35

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

36

87533210

SEAL

1шт.

37

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

38

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

5шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

40

87385034

SHIM

8шт.

41

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

42

87384612

PLATE

Strip Off, Center

2шт.

43

87384614

PLATE

Strip Off, LH

1шт.

44

87384616

PLATE

Strip Off, RH

1шт.

45

84182198

DIA KIT, HARVESTER

Feeder Chain Tensioning; For Component Breakdown, See Fig. K.25.E.48[11]

1шт.

Updates Machine To Model Year '08 Chain Tensioning System

1шт.
